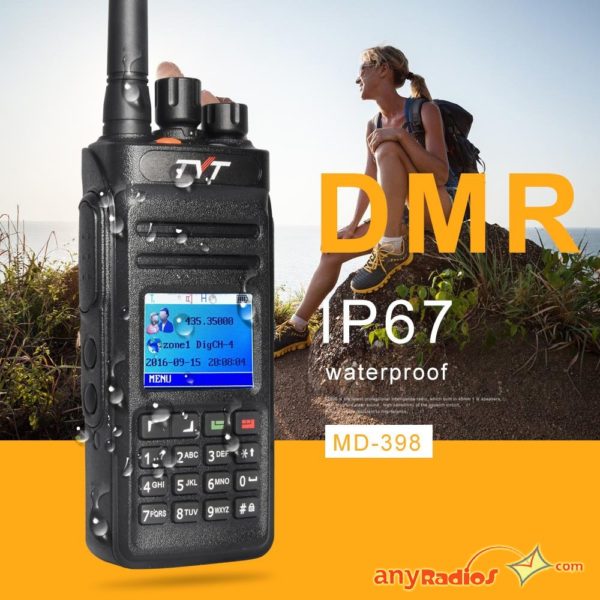

TYT MD-398 Handheld DMR IP67 10Watts 400-470MHz Walkie Talkie

$96.00

& Free Shipping
Guaranteed Safe Checkout

TYT MD-398 DMR Digital Handheld  walkie talkie IP67 10Watts 400-470MHZ compatible with Mototrbo Tier I&II Two way radio

Main Function:

1024 channels

IP67 Waterproof

Record

10 Watts Output Power

PC Programmed function Software online updating

VOX Chinese and English Voice Selection

Color LCD display

Text messages in digital mode

Digital Encryption function

Built-in CTCSS/DCS

BCLO

High & Low Power selction Talk around function

Complying with digital protocol ETSI TS 102 361-1,-2,3

Compatible with Mototrbo Tier I  & II

Scanning Function Lone work

Analog wide/Narrow bandwidth selection

End-tone Elimination

Operate in both Digital & Analogue mode

Allows easily migrate from analog to digital

Provide clearer voice communications in digital mode throughout the coverage area

Emergency Alert

Key side setting

High-Low Power

Specifications:

General
Frequency Range 400-470MHz
Channel 1024 Channels
Channel Spacing 12.5KHz
Operating Voltage 7.8V
Battery Type Li-ion
Operating Temperature -30°c~+60°c
Store Temperature -40°c~+85 °c
Antenna Impedence 50 Ω
Audio Output Power ≤1000mW 16 Ω
Battery Capacity 2800mAh Standard Li-ion Battery
Dimensions(HWD) 144×59×40mm(Not Including Antenna)
Weight 340g
Transmitter
Output Power High:10W(HI) Low: 4W(Low)
Frequency Stability ±1.0ppm
Adjacent Channel Power ≤-60dB
Free Time Slot Power TDMA:≤ 57dBm
Hum and Noise -40dB 12.5KHz
Spurious Radiation Antenna: 9KHz-1GHz ≤-36dBm

1GHz-12.75GHz ≤-30dBm

FM Modulation Mode 12.5KHz: 11K0F3e
4FSK Digital Mode 12.5KHz (data only): 7K60FXD

12.5KHz(data+voice): 7K60FXE

Modulation Maximum Deviation 2.5KHz 12.5KHz
Nonactive Slot Power -57dBm
Digital Protocol ETSI TS 102 361-1-2-3
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Modulation BER(Bit Error Rate) ≤5%
Receiver
Analog Sensibility 0.35 μV/-116dBm(20dB SINDA)

0.22μV/-120dBm(Type)

Digital Sensibility 0.3μV/-117.4dBm(BER 5%)

0.7μV/-110dBm(BER 1%)

Co-channel Rejection ≥-12dB
Adjacent Channel Selectivity TIA603C:65dB ETSI:60dB
Spurious Response TIA603C:75dB ETSI:70dB
Rated Audio Power 1W
Audio Response 1dB~-3dB
Rated Audio Distortion 3%(Type)
Spurious Radiation Antenna: 9KHz-1GHz ≤-57dBm

1GHz-12.75GHz ≤-47dBm

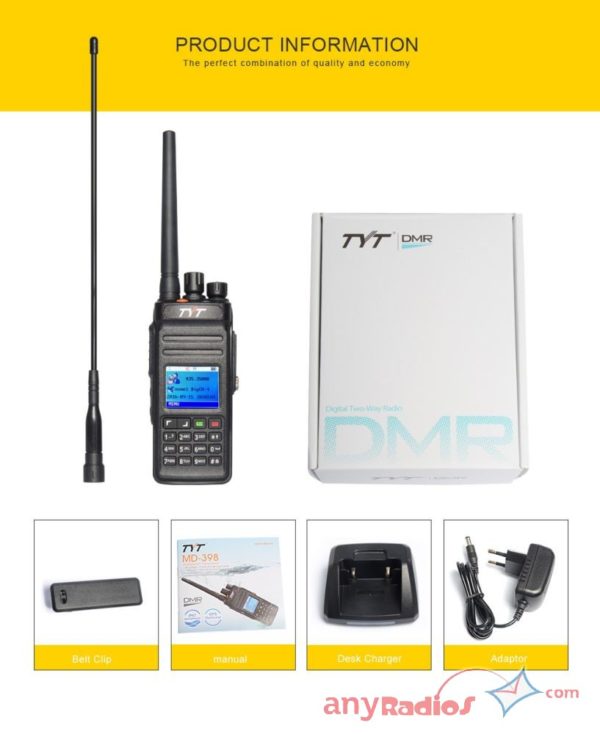

PACKAGE Contents:

1 x TYT MD-398 Digital Radio (UHF 400-470Mhz)

1 x 7.4V 2800mah Li-ion Battery Pack LB-75L

2 x SMA-Male Antenna

1 x Belt Clip

1 x ENG Manual

1 x Desktop Charger ( 110V ~ 250V ) with Correct Adapter for your Country

1 x Programming Cable

1 x TYT headset

MD-398

Weight 0.8 kg
Dimensions 200 × 160 × 50 mm
