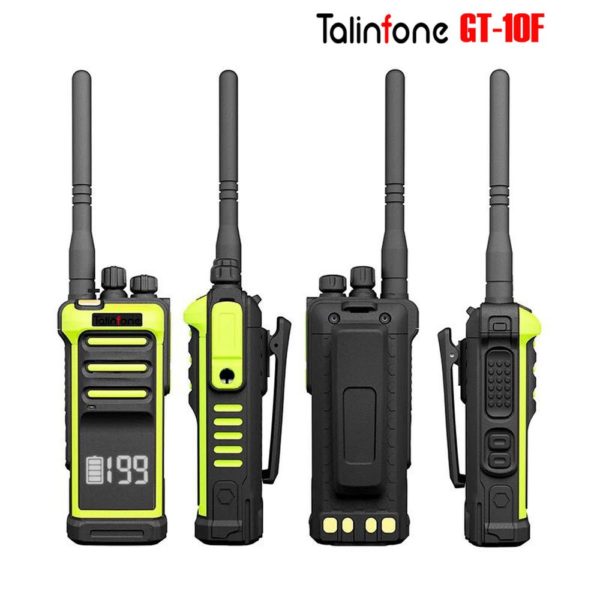

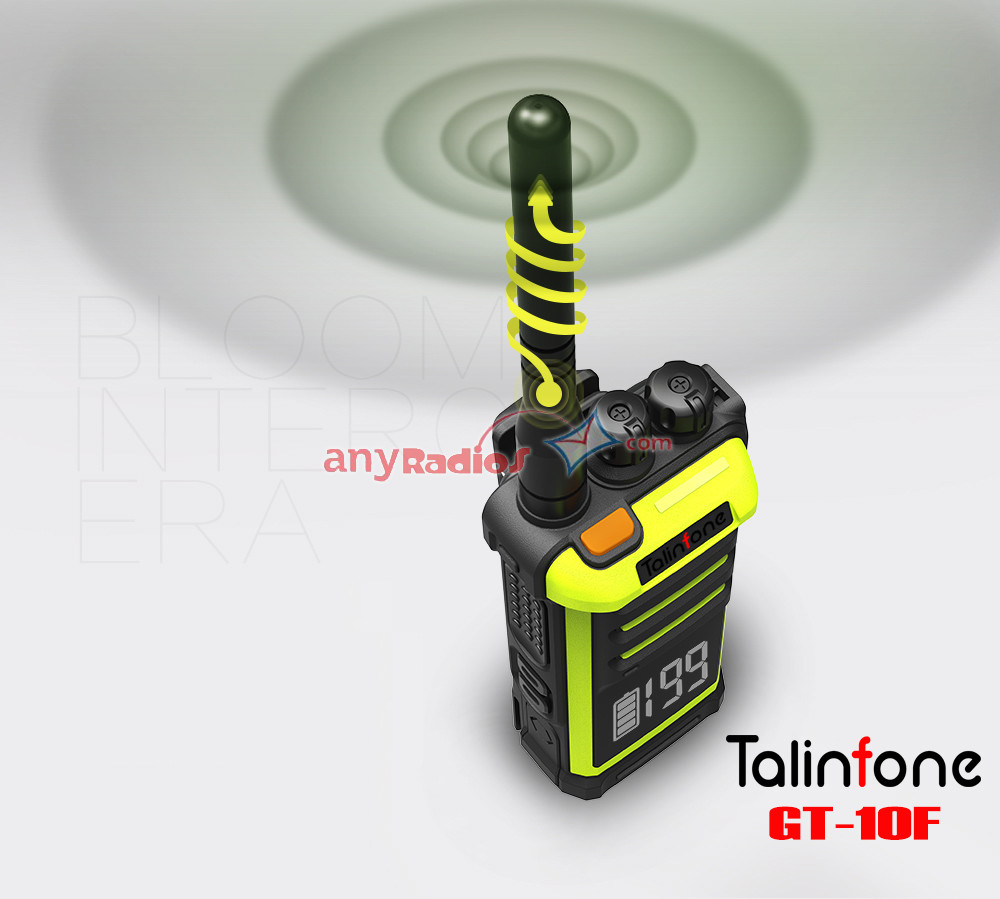

Talinfone GT-10F Rugged Walkie Talkie 10W Hidden Display

Product Features

Active View Display

Output Power:  10 W(H)  5W(M)  2W(L)

Battery Capacity: 3000mAh

(Li-polymer  battery)

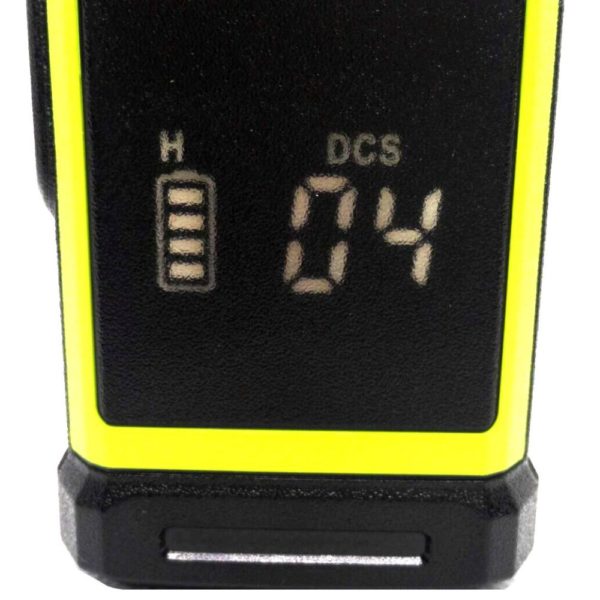

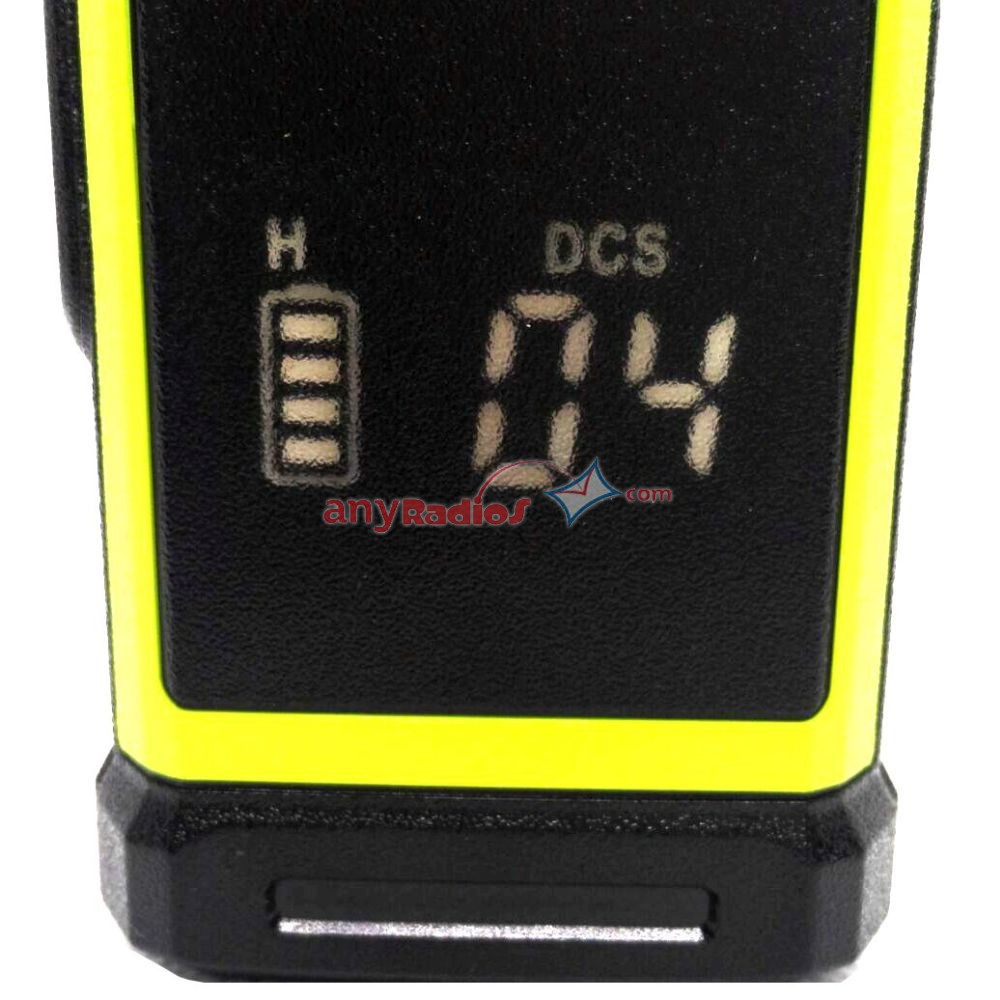

Hidden LCD Display

Scan Function

VOX Function

Wide/Narrow Band 25KHz/12.5KHz

Emergency Alarm

Battery Saver

Low Battery Warning

Scrambler Function

Channel Lock Out

TOT Function


Squelch Level Adjust


Technical Specifications

Frequency Range UHF 400-470MHz
VHF 136-174MHz
Channel Capacity 199CH
Channel Spacing 12.5KHz/25KHz
Operating Voltage 7.4V-8.4V DC
Battery Capacity 3000mAh (Li-polymer)
Operating Temperature -20℃ to +50 ℃
Frequency Stability ±2.5ppm
Antenna Impedance 50Ω
Dimension 65x46x140mm
Output Power H:10Watts  M: 5Watts  L:2watts
Modulation Type 16kφF3E(Wide Band)
11kφF3E(Narrow Band)
MAX. Frequency Deviation <5KHZ(Wind Band)
<2.5KHZ(Narrow Band)
Adjacent Channel Power ≥60dBTransmitter
S/N ≥45dB
Audio Distortion ≤3%
Audio Response 6dB/Each octave
FM ≤-36dB
Sensitivity(12dB SINAD) ≤0.25uV(Wide Band)
≤0.35uV(Narrow Band)
Intermodulation 65dB
Adjacent Channel Selectivity ≥65dB(Wide Band) ≥60dB(Narrow Band)
S/N ≥50dB
Audio Response 6dB/Each octave
Rated Audio Distortion ≤3%
Audio Output Level 22dBMW(10%hours)
Rated Audio Output power 1000mw
Spurious Rejection ≥80dB
MAX. Frequency Deviation <5KHZ(Wind Band)  <2.5KHZ(Narrow Band)

Each Unit Package Included:

1 X Talinfone GT-10F Walkie Talkie 10W Hidden Display

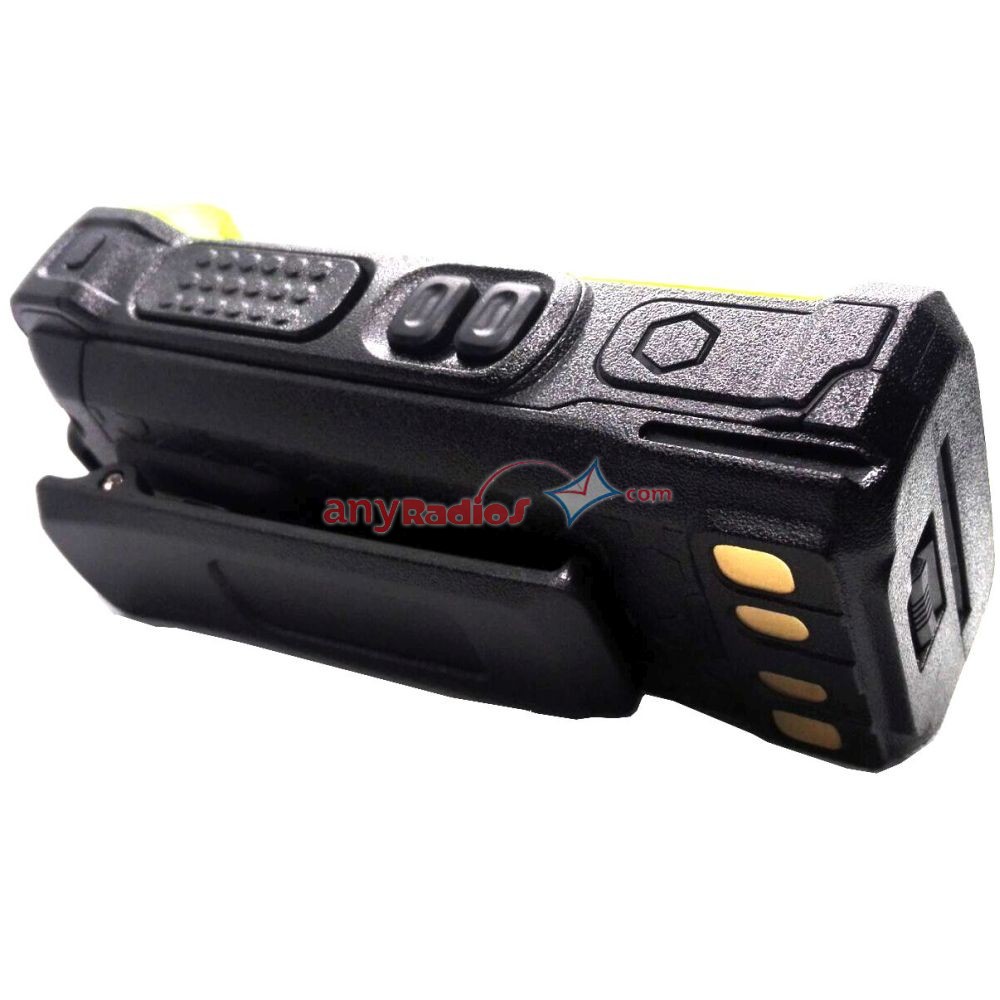

1 X 8.4V 3000mAh Li-polymer Battery

1 X 14.5cm Antenna

1 X 37.5cm Antenna

1 X Belt Clip

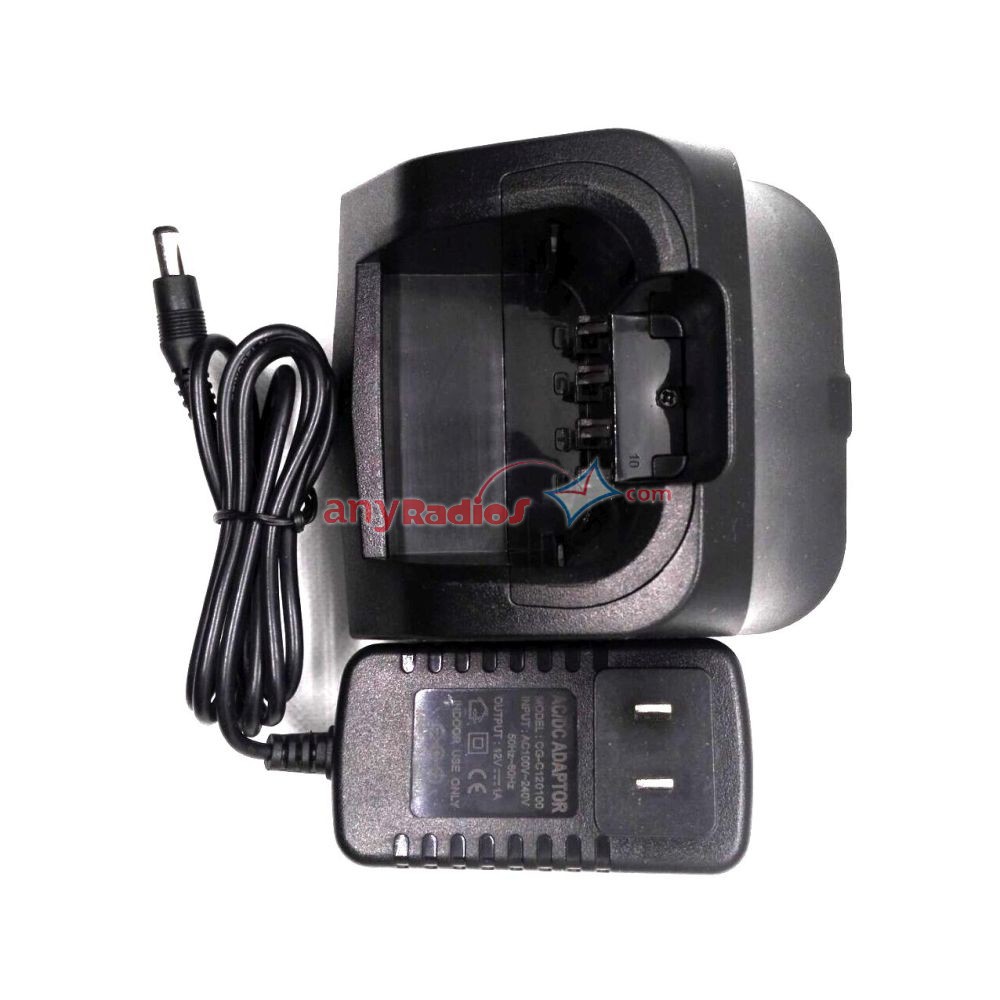

1 X Charger Docking

1 X 100-240V AC Power

1 X Hand Strap

1 X User’s Manual

1 X Security Earpiece


If any questions Or bulk order, please contact Ms. Amy Huang:


WhatsApp / Skype: +8613860123881

Tel: 86(592)5995025

Fax: 86(592)3720556

Weight 1 kg
Dimensions 400 × 300 × 100 mm
Frequency Range

UHF 400-470MHz, VHF 136-174MHz

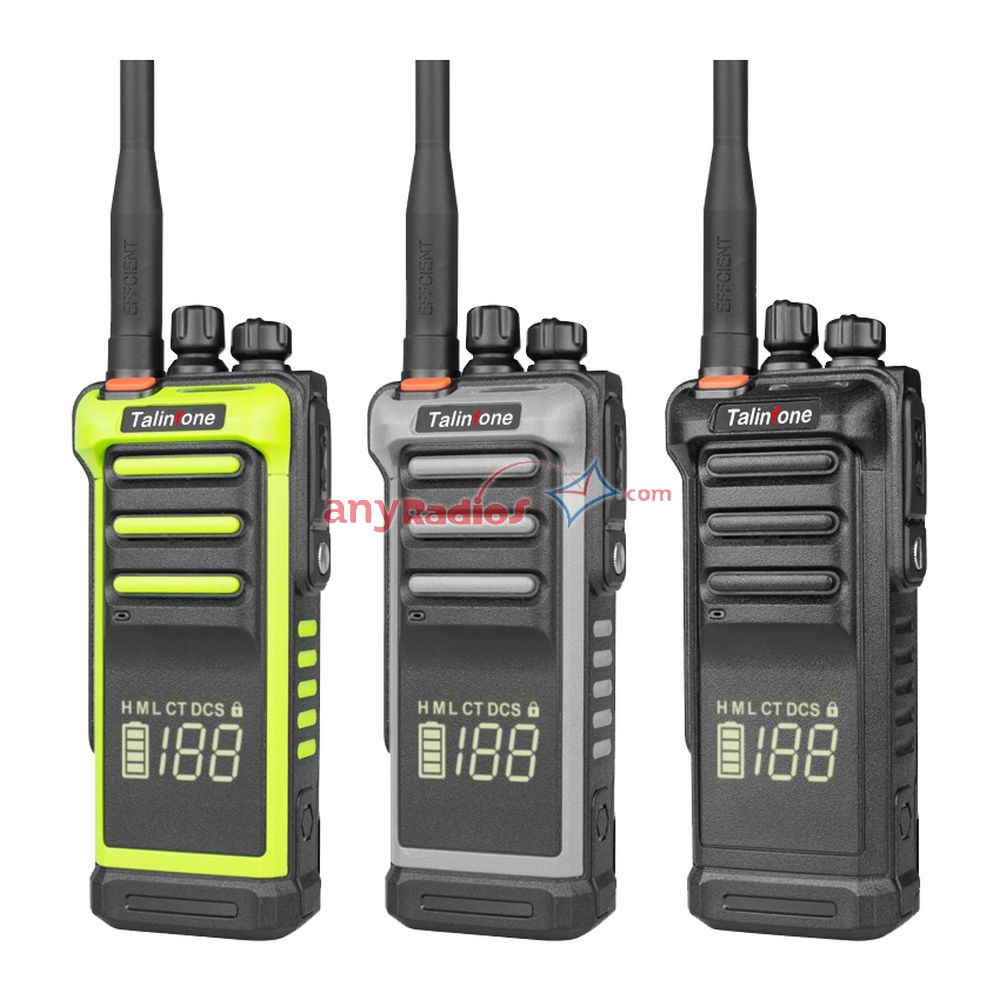

Black, Green, Grey
