QJE PS30SWIV Power Supply 13.8V 30A Adjustable Linear Power Supply Stable DC communication switching power supply Automotive power supply
PS30SWIV Radio Transceiver Base Station Switching Power Supply 30A Fourth Generation 13.8V
Product Description:
– The device is used for communication equipment.The digital LCD backlight displa.。
– Small size,stable and high efficiency,Digital LCD screen display voltage,current
Changeable output voltage

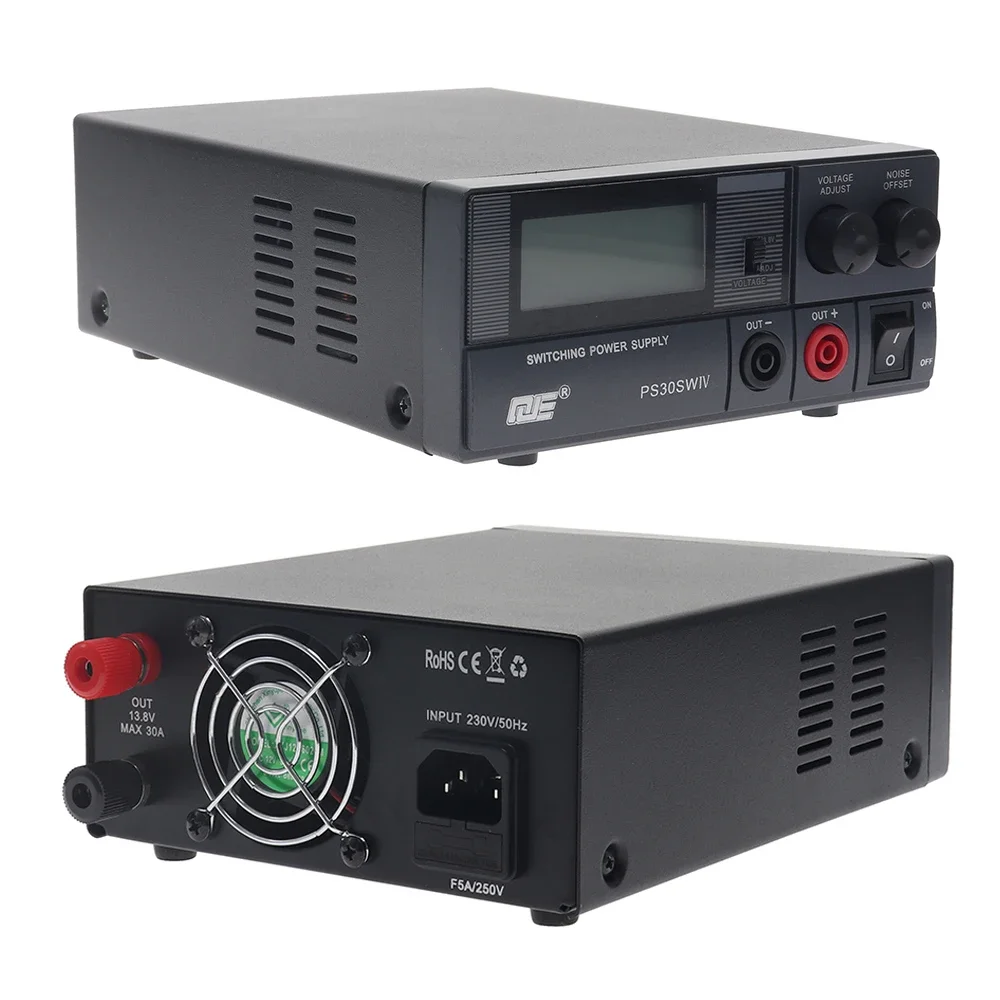

Panel function description:
1:Power main switch
2:Filter noise adjust
3:DC voltage output adjust
4:LCD voltage output aadjust
5:DC output positive
6:DC output negative
7:Current indicator
8:DC output positive negative wiring terminal
9:Cooling fan(temperature control)
10:Fuse
Specific parameter:
– Dimenion:155(W) x 70(H) x 205(D) mm
– Weight:1.5 kg
– Output voltage:9- 15V DC adjustable,sitable around 13.8V DC
– Output current:30A (max)
– Ripple and noise: < 10mV effective value
– Power:230V AC / 50Hz
– Instrument type:LED digital meter
–Ripple and noise: <10mV of RMS
Note:The power voltage varies within 0.1-0.2V,it is normal.
Package List:
– 1 x PS30SWIV Radio Base Station
Panel Features:
1: The power switch
2: filtering noise adjustment
3: DC voltage output adjustment
4: LCD voltage, current display
5: positive DC output
6: DC output negative
7: current indication
8: positive and negative DC output terminal
9: cooling fan
10: Fuse
