2018 Newest TYT TH-8600 Waterproof IP67 25W Mini Mobile Car Radio

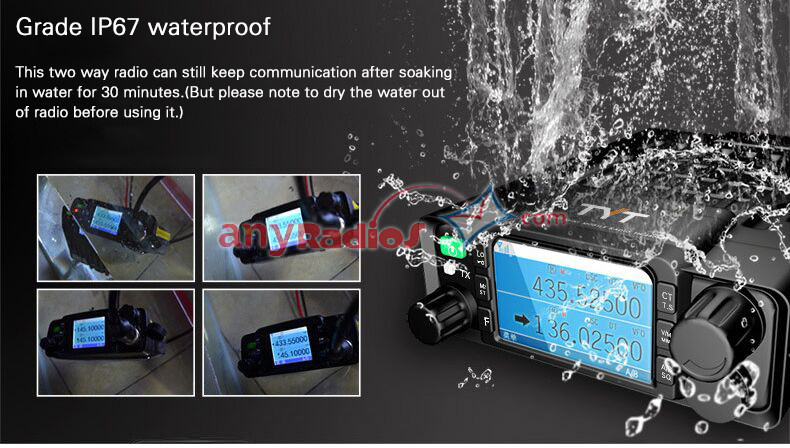

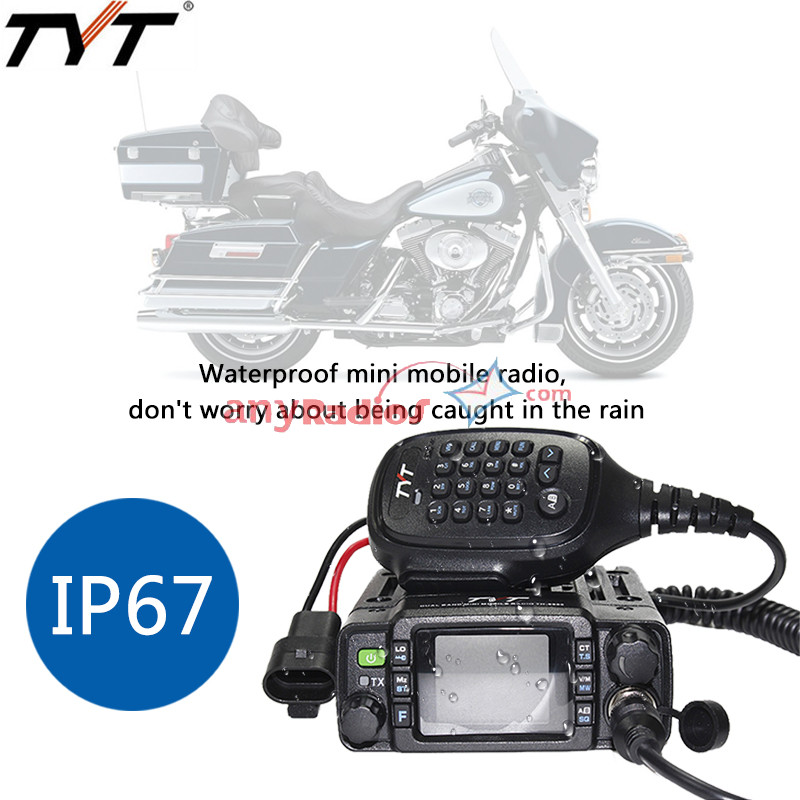

The TYT TH-8600 is IP67 waterproof 25W VHF UHF 136-174MHz/400-480MHz Dual band, dual standy, dual dispaly, LCD color display mobile radio.It is the solid choice for outdoor enthusiasts and motorcycle enthusiasts.In the above vedio, We fully soak TYT TH-8600 car radio in the water of 1.5m deep to test call.


Main Functions

Dual band, dual display and dual standby

25W for VHF and 20W for UHF

200 channels

P1-P4 programmable functional keys

IP67 waterproof

Color LCD display




1750Hz tone

Remote stun/kill and activate


Frequency Range(MHz) VHF: 136-174Mhz UHF:400-480Mhz
Channel 200
Frequency Stability ±1ppm
Voltage Rating DC 13.8V
Operating Temperature -30℃~+60℃
Storage Temperature -30℃ ~+85℃

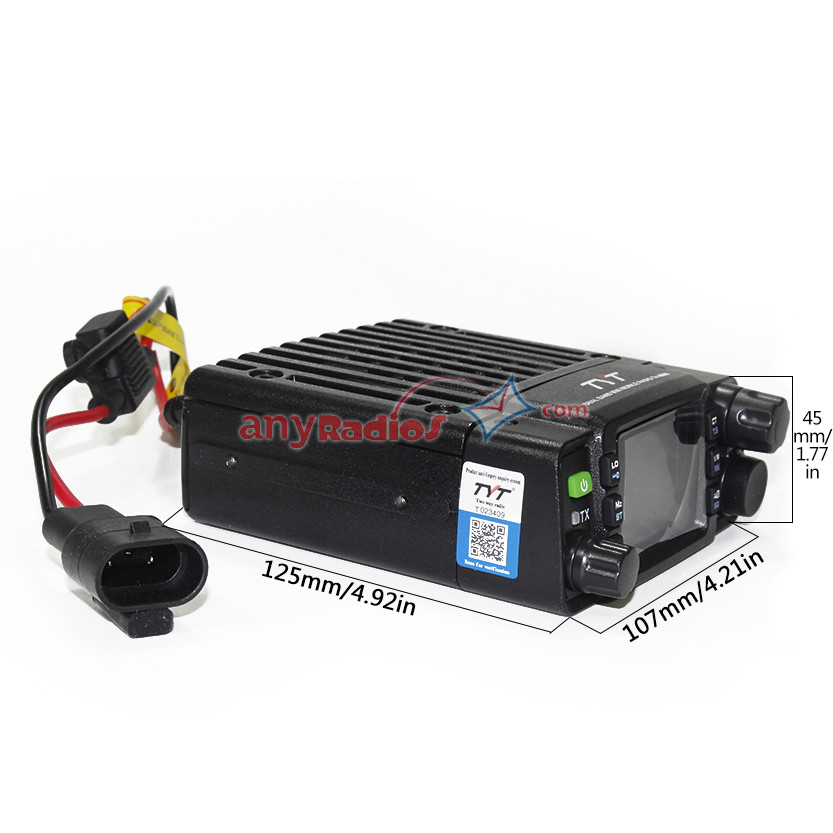

Dimention 107*125*45mm


Output power 25W(VHF)
Transmitting Current 4A13.8V
Standby Current 0.2A 13.8V
FM Modulation Wide band:16K0F3E
Modulation distortion <5%
FM Hun and Noise ≥45dB 25KHz
≥40dB 12.5KHz
Adjacent Ch. power ≥60dB 12.5KHz
≥70dB 25KHz
Audio response +1~-3dB


Frequency stability (-20℃ +60℃,+25℃) +/-1.0ppm
Sensibility 0.2μV
Adjacent Ch. Selectivity 60dB 12.5KHz
70dB 25KHz
Intermodulation ≥60dB/≥65dB
Spurious Rejection ≥70dB
Audio response +1~-3dB
RF Sensitivity -122dbm(12db SINAD)
Audio Distortion <5%
FM Hum and Noise -40dB    12.5KHz
-45dB    25KHz
Rated audio Rated audio

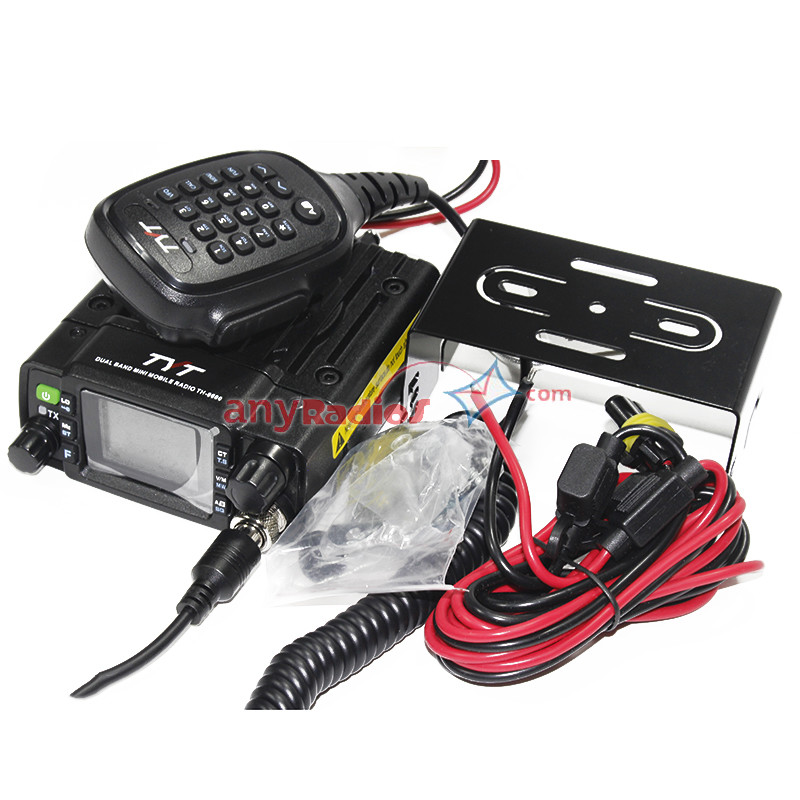

Package include:

1 x TYT TH-8600 Waterproof Mobile radio

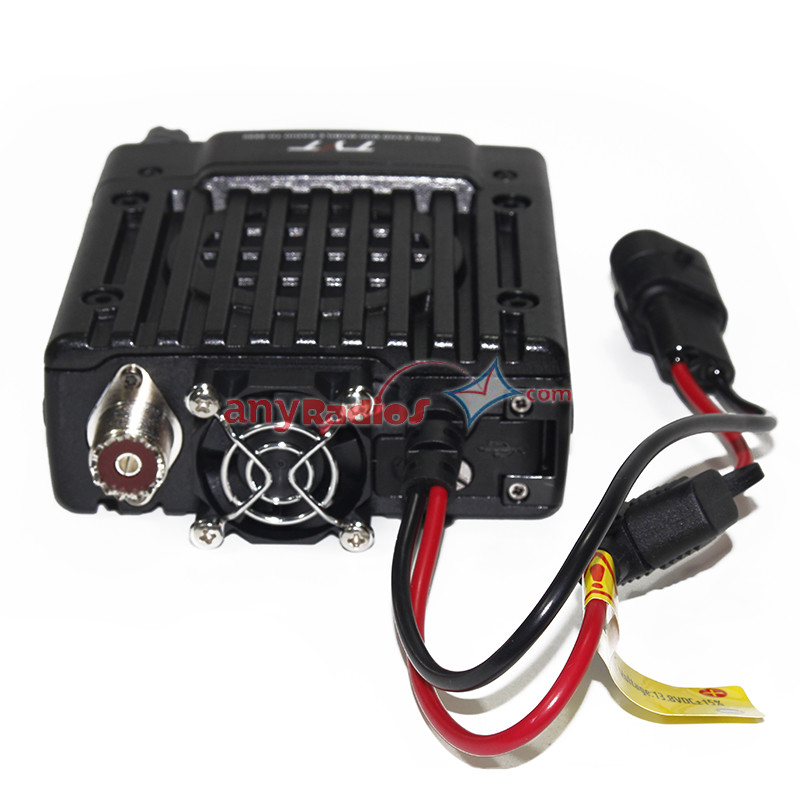

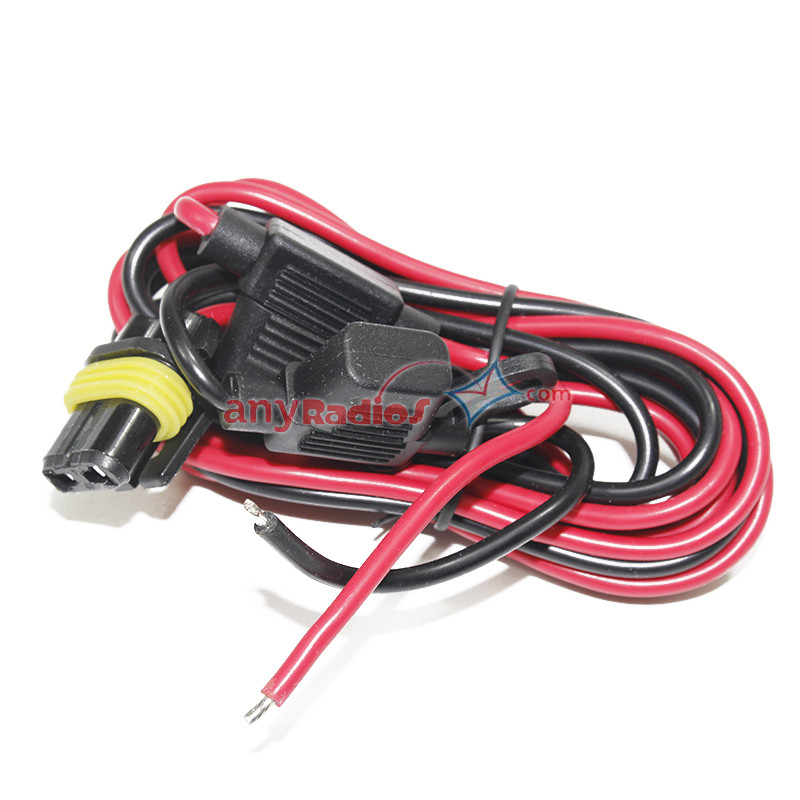

1 x Power cable

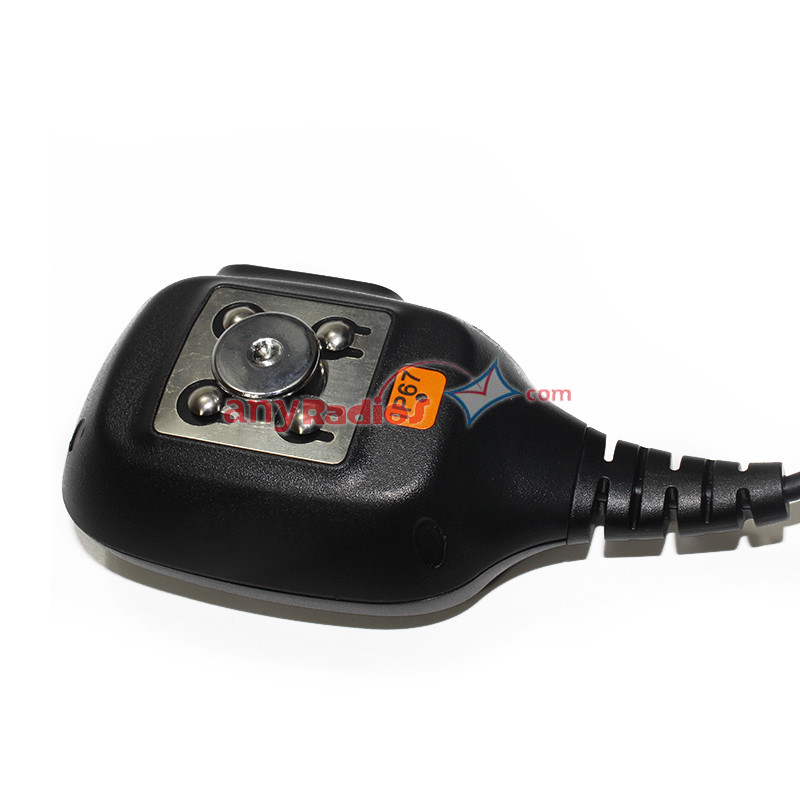

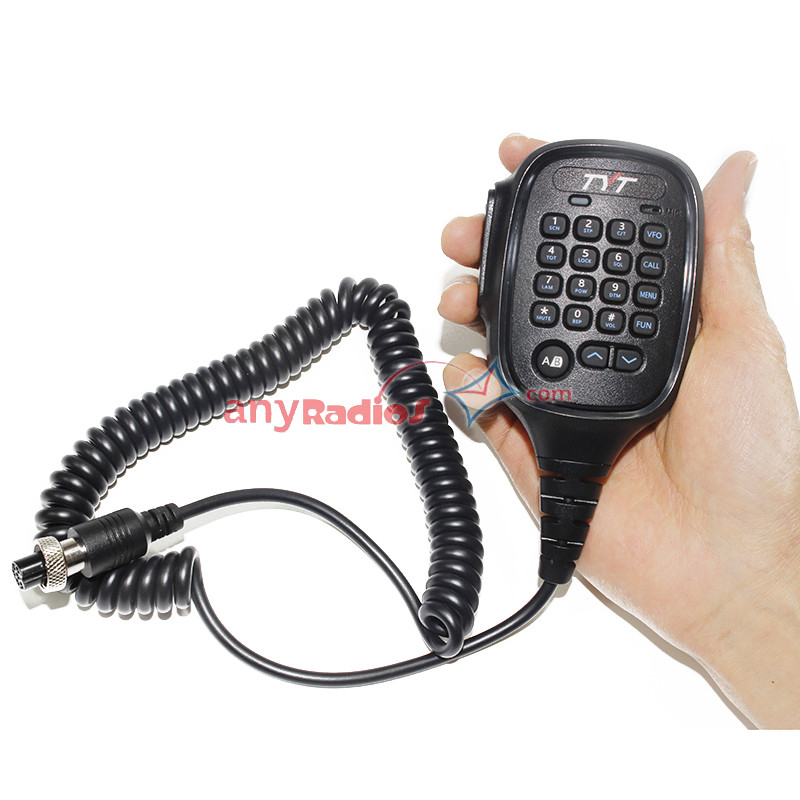

1 x Handheld mic

1 x One pack of screw and accessories

1 x User’s manual
