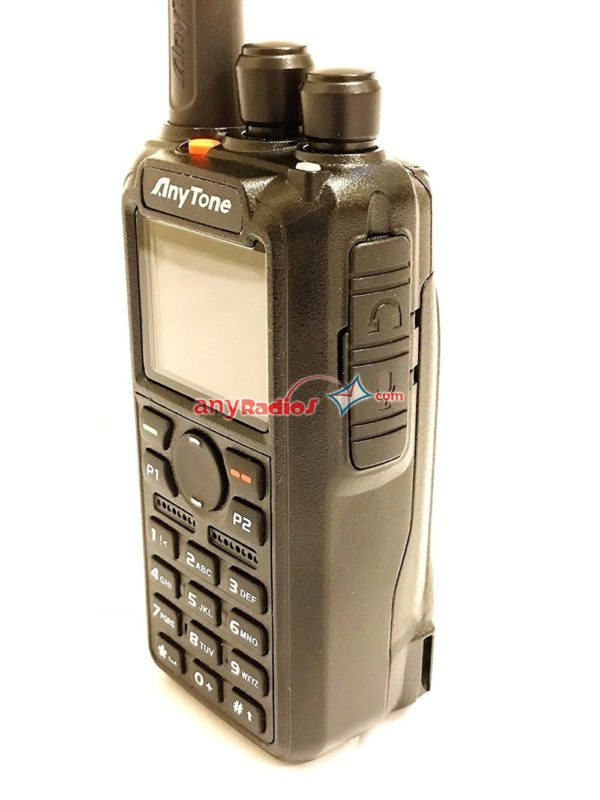

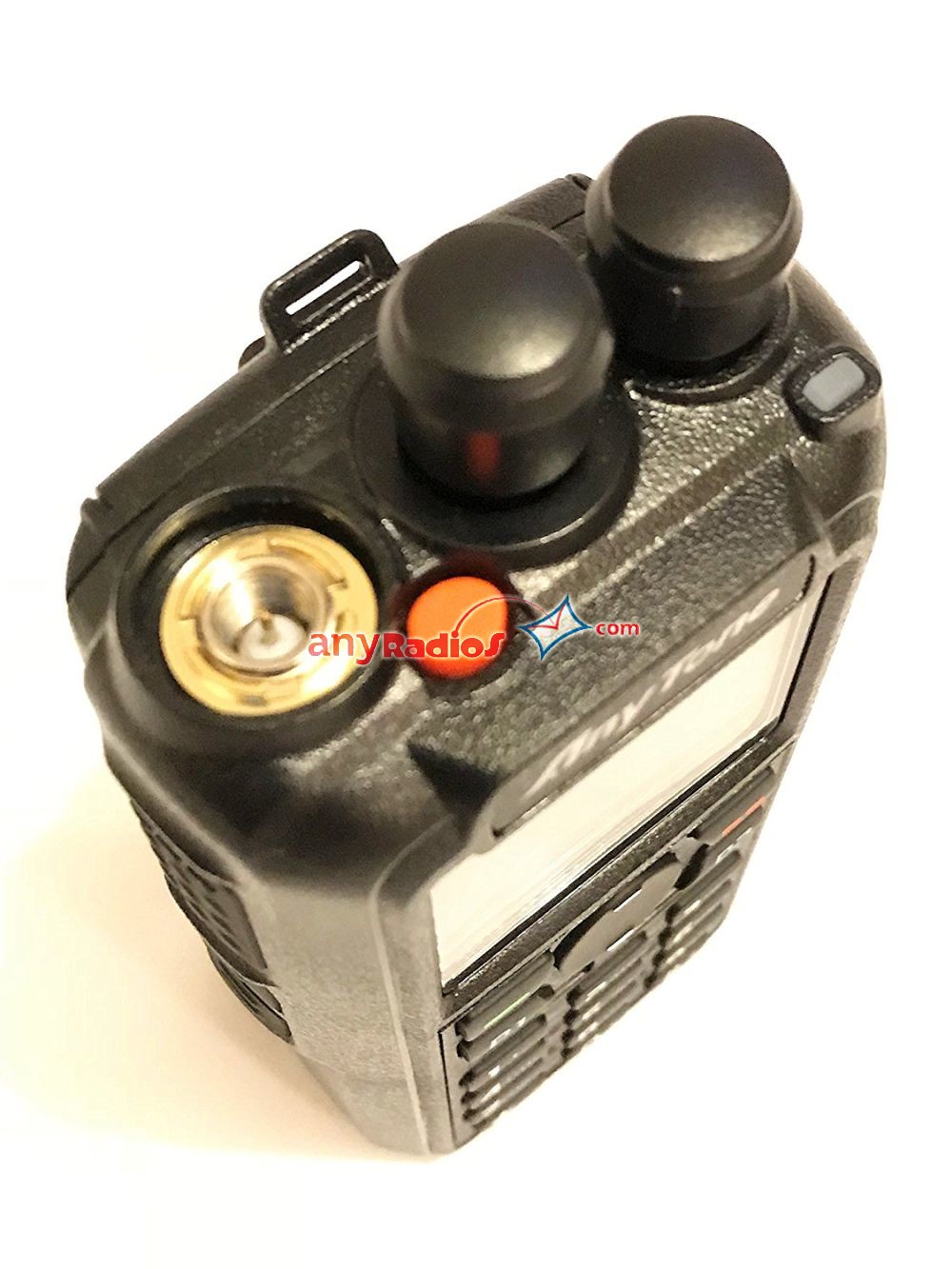

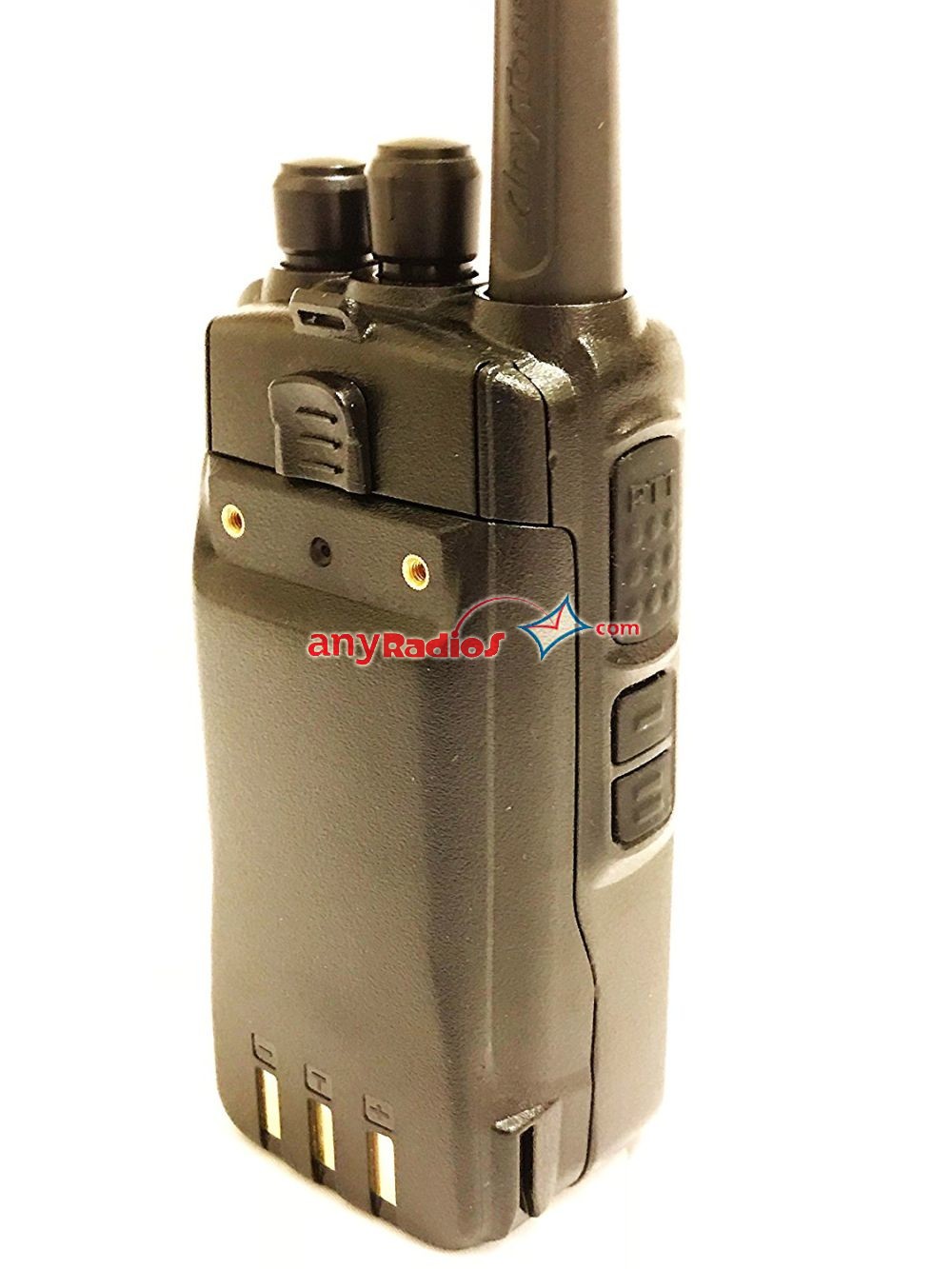

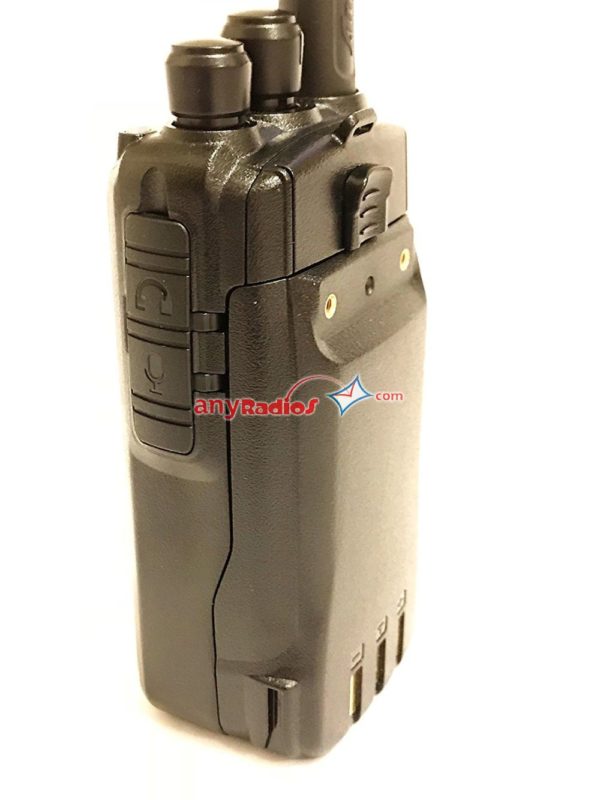

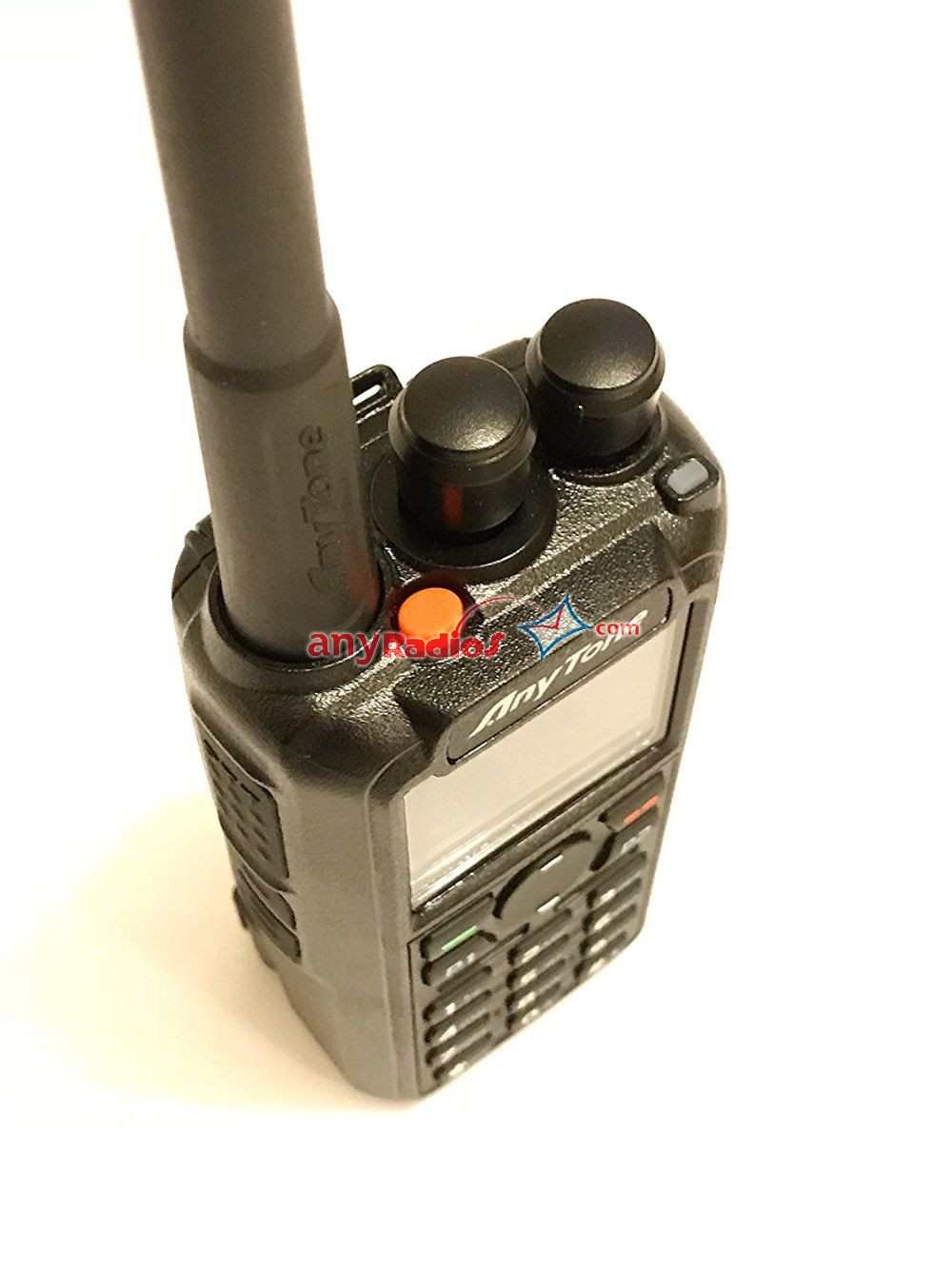

Anytone AT-D868UV GPS Dual Band DMR Walkie Talkie

Anytone AT-D868UV GPS Dual Band DMR Tier I & II  144 & 430MHz Analog DMR Walkie Talkie+Programming Cable

The Anytone AT-D868UV with GPS DMR VHF/UHF Dual-band Digital/Analog Part 90 DMR commercial transceiver with GPS and 1.77 inch color TFT display. Ideal for Fire, Search & Rescue, EMS, Police, Sheriff, Forestry and Security operations. 4,000 Channels with 10,000 Talk Groups. Frequency coverage 136-174 / 400-480 MHz. Includes USB Programming cable.

• To fully utilize all the features you have to use Windows PC to program this DMR Walkie Talkie. Not Compatible with CHIRP and RT systems software.
• The AnyTone D868UV GPS “Version 2” Dual Band radio was developed to conform to the DMR Tier I and II requirements. It offers state-of-the-art performance for both digital and analog operation at both the UHF and VHF frequency band. The radio has been certified by FCC under Part 90 standards and offers 4,000 Channels, 10,000 Digital Talk Groups with 150,000 Contacts.
• The large color display offers clear information about the radio operation and function, including displaying whom you are connected to. The powerful transmitter is very reliable and offers up to 7 Watts of power for a hand-held.
• Package Includes: AnyTone AT-D868UV GPS “Version 2″dual-band DMR/Analog radio, USB Programming Cable and software, Dual Band Antenna, 3100mAh Li-ion Battery, Belt Clip, Charger base and AC Adapter, User’s Manual.
• TX and RX frequency range 136-174 MHz and 400-480 MHz FCC ID:T4KD868UV

The Anytone D868UV GPS Dual Band DMR Walkie Talkie was developed to conform to the DMR Tier I and II requirements. It offers state-of-the-art performance for both digital and analog operation at both the UHF and VHF frequency band. The radio has been certified by FCC under Part 90 standards and offers 4,000 Channels, 10,000 Digital Talk Groups with 150,000 Contacts. The large color display offers clear information about the radio operation and function, including displaying whom you are connected to. The powerful transmitter is very reliable and offers up to 7 Watts of power for a hand-held DMR Walkie Talkie.

Functions:

• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; Comply with MOTOTRBO Tier I&II
  • Power: 6W/2.5W/0.5W
  • Auto-senses digital or analog
  • 1000 channels + VFO; Contact list
  • Display: 1.77 inches TFT color LCD, dual display; dual standby; dual PA
  • Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
  • Fixed and defined CTCSS/DCS encode and decode
  • DTMF/2TONE/5TONE encode and decode
  • Four different Tone-pulse frequencies
  • Individual/Group/All call
  • Icon indicator or Voice prompt when connecting with repeater
  • Display the Caller ID and name
  • Encryption function
  • SMS via keyboard, One touch call/text
  • Zone selection; Recording, GPS (option)
  • ANI function and PTT ID; VOX
  • Emergency alarm (with GPS data transmission)
  • Earphone: KENWOOD connector; Waterproof: IP54
  • Battery: 3300mAh Li-ion thick battery

SPECIFICATION

DMR: True 2 slot which complies to Motorola Tier I and II
Auto-senses digital or analog reception
Power: 6 W, 5 W, 2.5W or 0.5W – 7 W max on VHF
Sensitivity: ≤0.25 µV Analog @ 25 kHz, ≤0.35 µV Analog @ 12.5 kHz
0.3 µV/-117.4 dBm (BER 5%) DMR
Selectivity: ≥ 70 dB @ 25 kHz, and ≥60 dB @ 12.5 kHz
Modulation: 7K60FXD data and 7K60FXE data+voice
DMR Talk Groups: 4,000 Channels, 10,000 Talk Groups with 150,000 Contacts

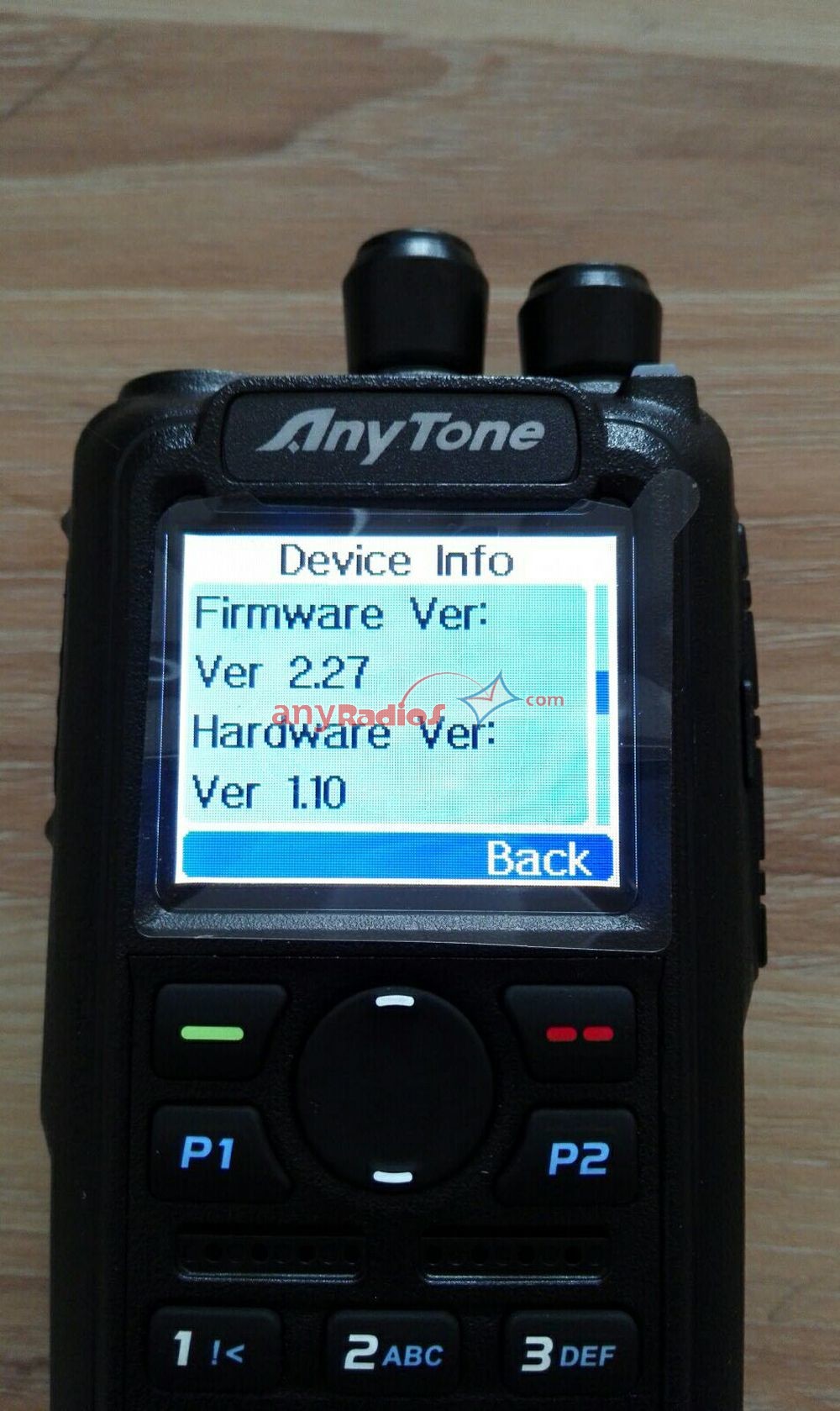

Display: 1.77-inch color TFT screen with dual channel display
can be set to single or dual channel operation
displays DMR ID, Callsign, Name, City, State, Country etc.
Bandwidth: 12.5 kHz/25 kHz Analog, and 12.5 kHz DMR
Analog Tone: CTCSS/DCS encode and decode
DTFM/2Tone/5Tone encode and decode
Four different Tone-Pulse frequencies
DMR call: Individual, Group or All call
Display icon or voice prompt when connected to repeater
Vocoder: AMBE 3000
Encryption: Allows encryption functions
SMS: Allows SMS via keyboard
Recording: Allows internal recording of calls (option)
PTT: ANI function and PTT ID or Voice Operated Transmit
Alarm: Emergency Alarm Transmit with GPS coordinates
Connection: Kenwood type earphone/mic connection – programming cable
GPS: Full feature GPS positioner (option)
Programming: Easy to use software for programming DMR and Analog
allows export/import of each parameter to/from excel spreadsheet
easy import of DMR contact database (entire worldwide)
Programming Guide available to clarify all parameters
Advanced Features: Call Alert – will send a message to target radio
Remote Monitor – Open the mic at target radio
Get GPS – will obtain GPS position of target radio
Check Radio – will check if target radio is powered on
Kill/Wake – can make target radio inoperative/open it up.
Battery: Standard 2,100 mAh Polymer battery
3300 mAh Li-ion battery (thicker back)

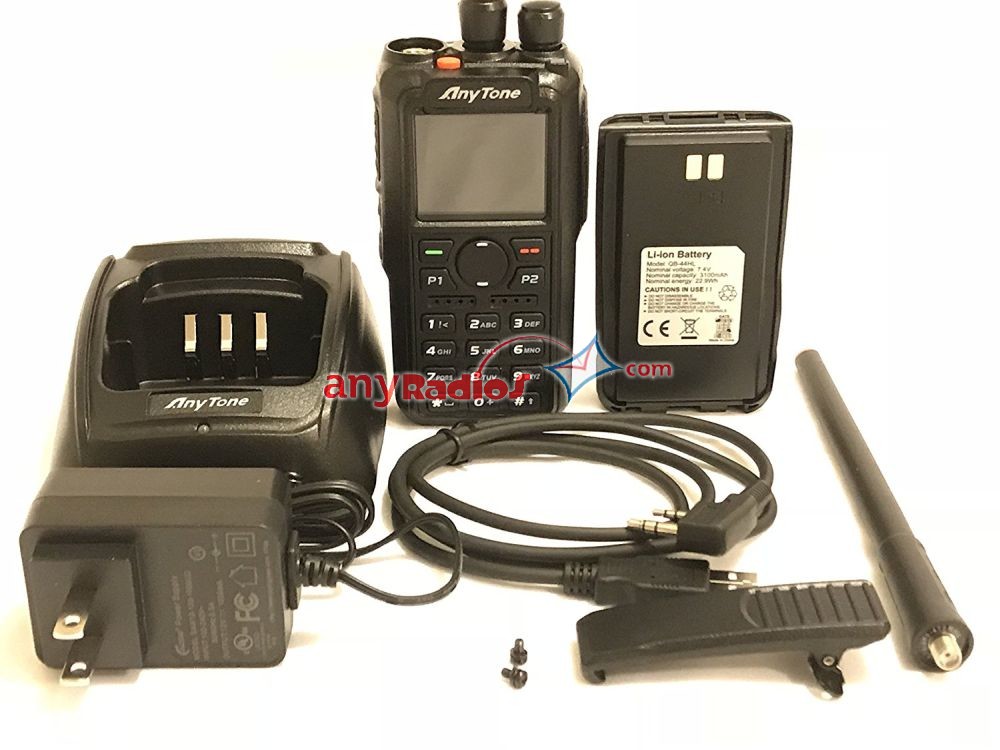

Package Includes:

Anytone AT-D868UV GPS Dual-Band DMR/Analog radio

USB Programming Cable

Dual Band Antenna

Li-ion Battery 3300mAh

Belt Clip

Charger base and AC Adapter

User’s Manual
