Baofeng UV-5RA+ Plus VHF UHF Dual-band Ham Radio

Original price was: $49.00.Current price is: $36.00.

& Free Shipping
Guaranteed Safe Checkout

Baofeng UV-5RA+ Plus VHF UHF Dual-band Ham Radio



 Features

Dual band, dual display A/B band independent operation
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
1750Hz Brust Tone Time-out Timer
Channel Monitor Battery Saver
Keypad Lock Channel Step: 2.5/5/6.25/10/12.5/25KHz
Low Battery Alert ROGER SET
Emergency Alert 25KHz/12.5KHz Switchable
FM Radio (65.0MHz-108.0MHz) Large LCD Display
LED Flashlight Hight /Low RF Power Switchable
Voice companding 50 CTCSS/ 104DCS coder & tone searching
dual standby PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT)
High/Low TX power selectable Busy channel lock-out(BCLO)



Specifications:

General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-520HZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%

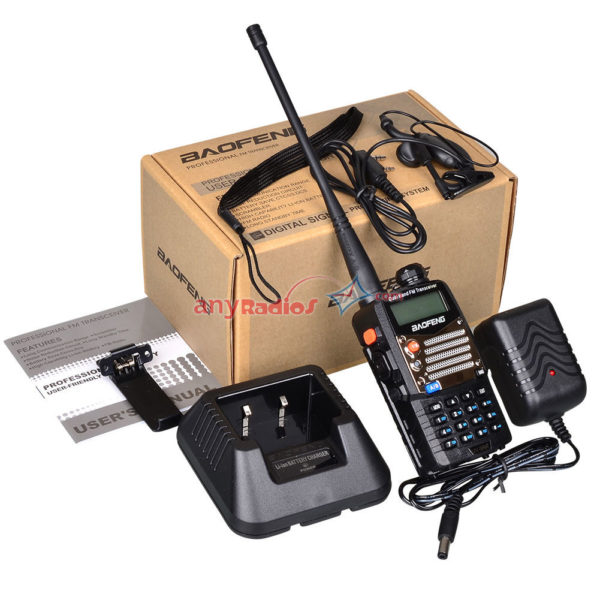

PACKAGE
1 x Baofeng UV-5RA+ (VHF 136-174 UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna  dual band
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )
(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)



Weight 1 kg
Dimensions 400 × 300 × 100 mm
