IBQ102 Portable Frequency Counter

$54.00

Count continuous frequency comes from your Transceiver. Count continuous wave signal strength of your Transceiver.

SKU: 160211 Category:

Description

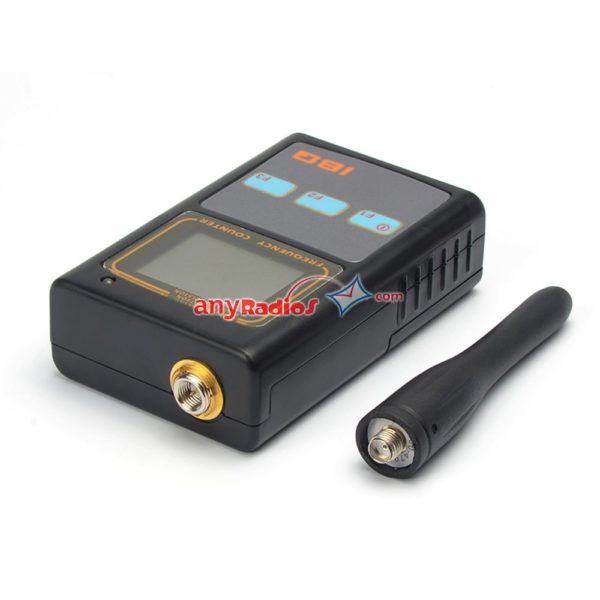

IBQ102 Portable Frequency Counter Scanner Meter for Walkie Talkie Two Way Radio

*Upgraded based on IBQ101 Frequency Counter,get wider test range.

*Designed for counting continuous wave signal comes from Two-way Radio.

This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
Its three-button control is easy to use and its small size allows you to carry it anywhere you like.

Wide Range (10Hz-2.6GHz) Portable Frequency Counter IBQ102.

Count continuous frequency comes from your Transceiver.

Count continuous wave signal strength of your Transceiver.

Features:

  1. Multi-function LCD Display
  2. 9-Digit Display
  3. Analog bar and digit signal strength indicator
  4. Display holding
  5. 50 display reading saving
  6. Power indicator

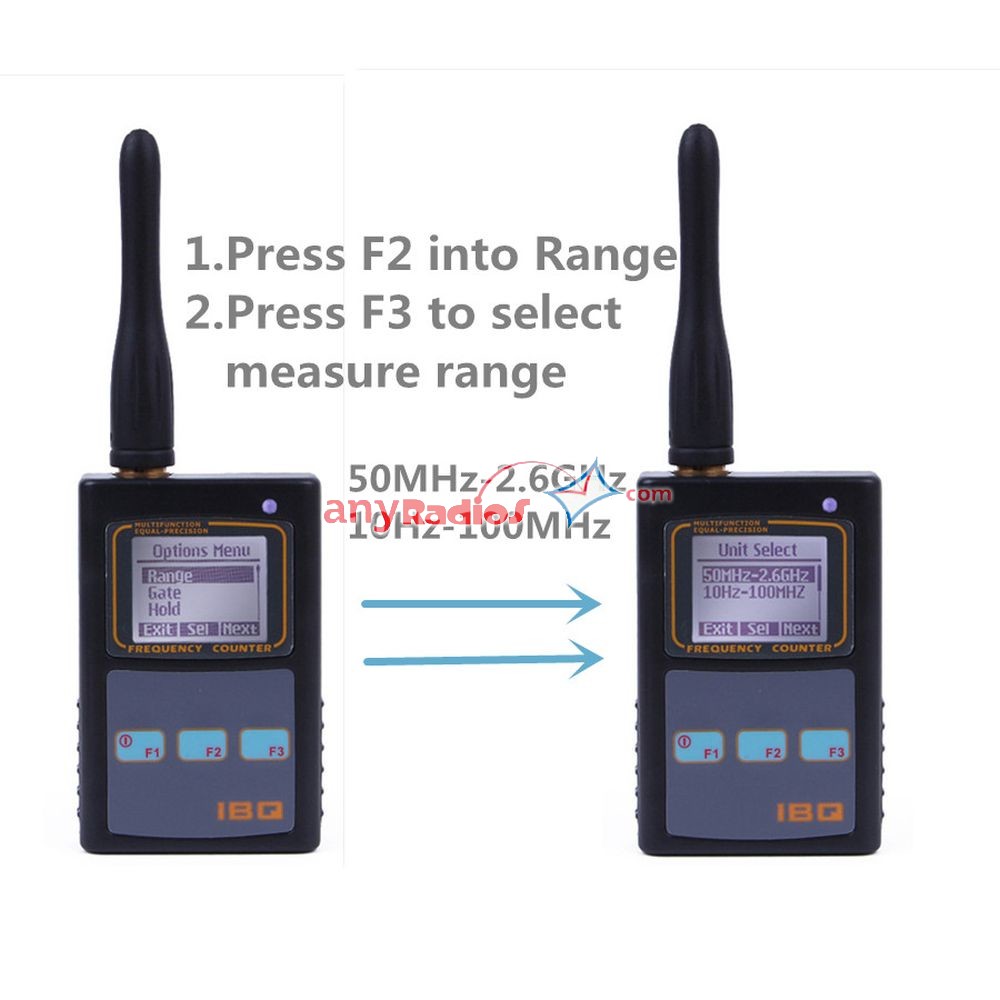

  7. Interactive user menu
  8. Equipped with UHF antenna and USB power adapter
  9. Auto switch off, Auto backlight Battery Indicator

 Specifications:

Range 10Hz-100MHz 50MHz-2.6GHz
Amplifier 1 Meg ohm 50ohm
Impedance 1 Meg ohm 50ohm
30pF VSWR<2:1
Features RF signal strength (50MHz-2.6GHz)
Display Screen Holding
50 Display Readings Saving
Auto switch off, Auto backlight
Battery Indicator
Sensitivity <30mV@10Hz-50MHz <5mV@100MHz
<5mV@400MHz
<35mV@50MHz-100MHz <5mV@1GHz
Gate 0.01s 0.01s
0.1s 0.1s
1s 1s
Time Base <+/-5ppm
LSD 1Hz/1s (10Hz-100MHz)
100Hz/1s (50MHz-2.6GHz)
Battery 3 x AAA Ni-MH
Power DC (5V,1A)
Cabinet ABS
Size 85mm x 55mm x 24mm
Net Weight 115g
Color Grey
ANT UHF

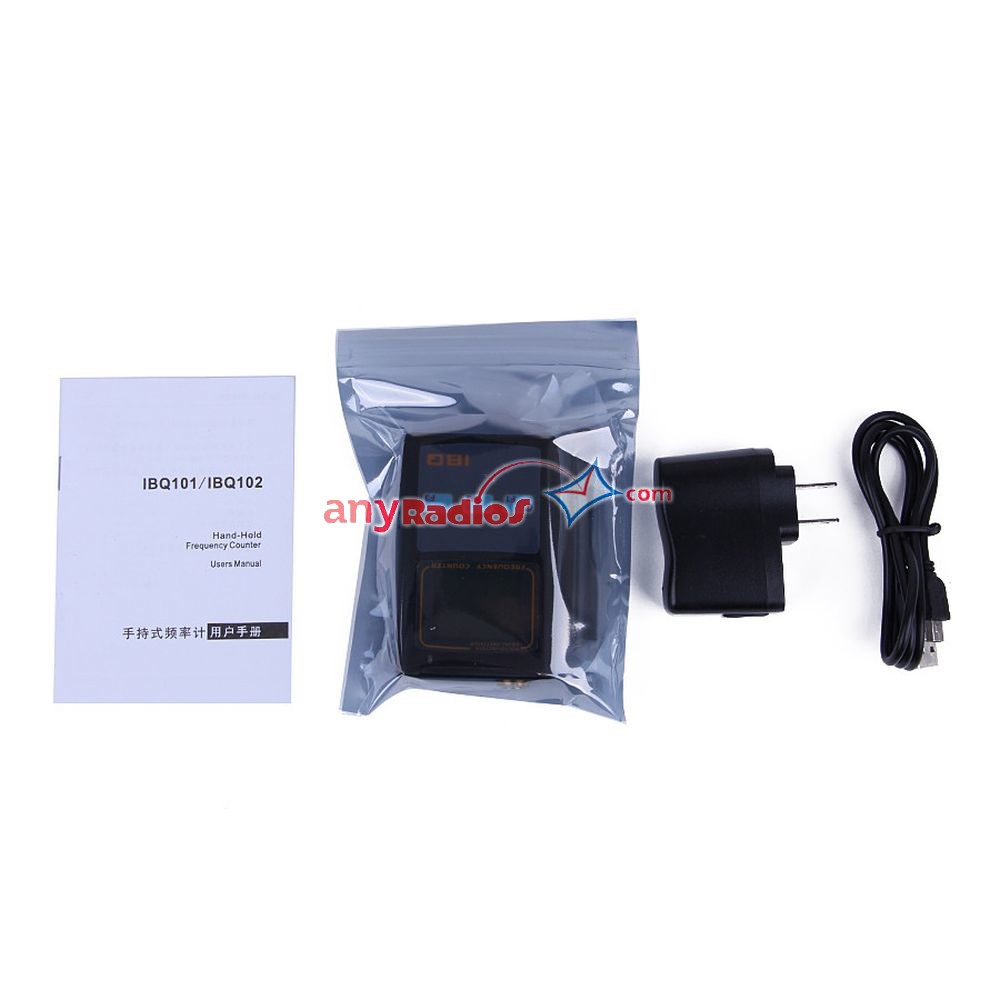

Package Listed:

1× Frequency Counter

1× Antenna

1× AC power adapter

1× USB cable

1× User manual

Please kindly note: to avoid shipping checking, it is without of 3*AAA battery

Comparison:

IBQ-101   Vs    IBQ-102

Model

IBQ-101

IBQ-102

Range 50MHz-2.6GHz 10Hz-100MHz 50MHz-2.6GHz
Amplifier 50ohm 1 Meg ohm 50ohm
Impedance VSWR<2:1 1 Meg ohm 50ohm
30pF VSWR<2:1
Sensitivity <5mV@100MHz <30mV@10Hz-50MHz <5mV@100MHz
<5mV@400MHz <5mV@400MHz
<5mV@1GHz <35mV@50MHz-100MHz <5mV@1GHz
Gate 0.01s 0.01s 0.01s
0.1s 0.1s 0.1s
1s 1s 1s
Time Base <+/-5ppm TCXO <+/-5ppm
LSD 100Hz/1s 1Hz/1s (10Hz-100MHz)
100Hz/1s (50MHz-2.6GHz)
Battery 3 x AAA Ni-MH
Power DC 5V~1A
Cabinet ABS
Size 85mm x 55mm x 24mm
Net Weight 115g
Antenna UHF

Additional information

Weight 0.5 kg
Dimensions 200 × 200 × 100 mm
