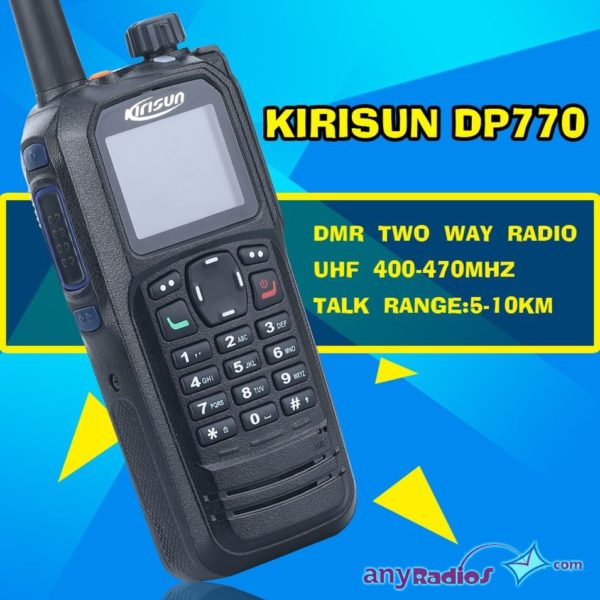

Kirisun DP770 Analog Digital DMR GPS UHF 400-470MHz Walkie Talkie

Original price was: $350.00.Current price is: $339.00.

& Free Shipping
Guaranteed Safe Checkout

Kirisun DP770 Digital Two-way Radio

As a product built to the DMR standard, DP770 is with ergonomic design, all-round digital functions and remarkable quality to increase your management efficiency and enable you to be responsive to emergent situations.


1.8” Graphic Dot-matrix True Color Display
The large-sized, full color, 5-line display enables the access to desired information easily even under bright sunlight.

All-time Durability
DP770 meets most of the demanding standards, including IP67 for water submersible and MIL-STD-810 C/D/E/F/G for exceptional durability, which ensure outstanding performance even in critical environments.

Versatile Voice Calls
Enhanced digital vocal call feature facilitates the management of the calls between the team members and the working teams, and ensures the privacy of the communications.

GPS Localization (Optional)
Integrated GPS enables the real time tracking of the mobile working team.
Rich Signaling
Multiple advanced analog signaling, including MDC1200, DTMF, 2-Tone and 5-Tone, provides more expansion capacity in existing communication systems.

Durable Battery
DP770 operates up to 40% longer between recharges compared to analogue by using the TDMA 2 time slot technology.

Migrate at Your Own Pace
Keeping the current communication system running during the migration from analogue to digital is vital to any business, the DP770 operates in both analogue and digital mode, that allows the change at your pace.


Vibration alert reminds the reception of message and call in noisy environment and wherever covert counts.
Versatile Data & Emergency Services
In addition to conventional communication services, DP770 provide rich data services and selectable functions, including Text Message, Scan, Emergency, Man Down (optional), VOX and Lone Worker.



DP770 General
Frequency Range 400~470MHz
Channel Capacity 1024
Channel Spacing 12.5KHz/25KHz
Operating Voltage 7.5V DC ±20%
Battery 2000mAh Li-ion (Standard)
Dimension(with battery and antenna) 137mm×55mm×35mm
Weight(with battery and antenna) 350g
Frequency Stability ±1.5 ppm
Power Output 1W/4W
Modulation Limiting 2.5kHz@12.5KHz, 5kHz@25kHz
FM Hum and Noise -40dB@12.5kHz   -45dB@25kHz
Conducted/Radiated Emission -36dBm@<1GHz, -30dBm@>1GHz
Adjacent Channel Power -50dB@12.5KHz, -60dB@25KHz
Audio Response +1dB,-3dB
Audio Distortion 3%
4FSK Digital Modulation 12.5KHz(data only):7K60FXD
Digital Protocal ETSI TS 102 361-1, -2, -3
Frequency Stability ±1.5 ppm
Analog Sensitivity 0.35μV /-116dBm(12 dB SINAD)
Digital Sensitivity 0.22μV /-120dBm
Intermodulation TIA603C:70dB   ETSI:65dB
Adjacent Channel Selectivity ETSI: 60dB@12.5kHz,70dB@25kHz
Spurious Response Rejection TIA603C:75dB   ETSI:70dB
Rated Audio Power 1.5W±0.1W
Rated Audio Distortion 3% (Typical)
Hum and Noise -40dB@12.5kHz   -45dB@25kHz
Audio Response +1dB,-3dB
Conducted Spurious Emission -57dBm@ < 1GHz,-47dBm @> 1GHz
Environmental Specifications
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
Thermal Shock MIL-STD-810 C/D/E/F/G
Humidity MIL-STD-810 C/D/E/F/G
ESD IEC 61000-4-2(level 4)
Dustproof & Waterproof IP67
Package including:
1 x DP-770 UHF GPS DMR Radio
1 x Antenna
1 x battery
1 x Charger (100V ~ 240V ) with Correct Adapter for your Country
1 x Belt clip
1 x ENG User´s manual
kirisun DP770
Weight 0.9 kg
Dimensions 200 × 150 × 60 mm
