MINI600 Antenna Analyzer 0.1-600MHZ HF/VHF/UHF Antenna Counter

MINI600 Antenna Analyzer 0.1-600MHZ HF/VHF/UHF Antenna Counter

UHF N-Type Connector MINI600 Antenna Analyzer 0.1-600MHz HF VHF UHF SWR Antenna Analyzer with 4.3′ TFT Capacitive Touch screen

Antenna Counter MINI600 0.1-600MHZ HF/VHF/UHF Antenna tester MINI-600 with 4.3′ TFT LCD Touch Screen Antenna Analyzer

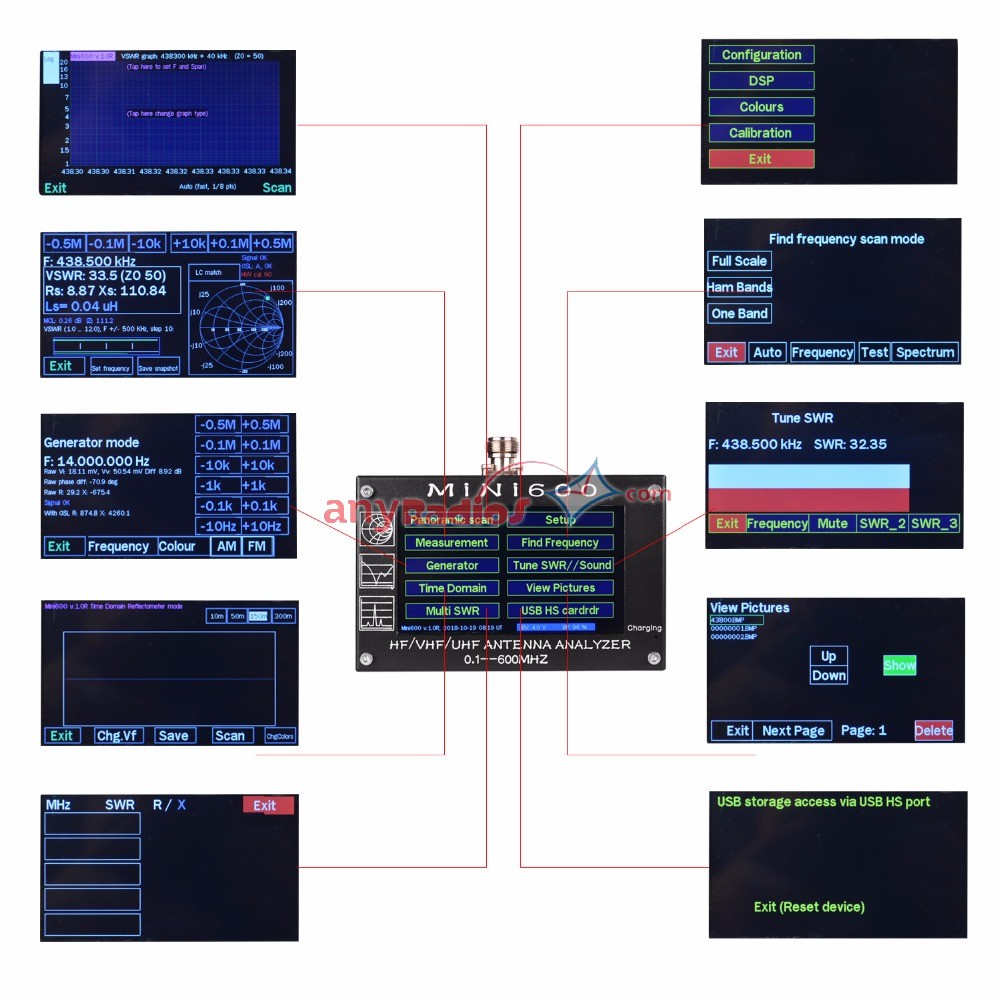

Functions:

• Panoramic Scan
• Measurement
• Generator
• Time Domain
• Multi SWR
• Setup
• Find Frequency
• Tune SWR/Sound
• View Pictures
• USB HS Cardrdr

Specifications:

– Frequency Range: 0.1-600MHz

– HF/VHF/UHF continuous coverage

– In/Out Impedance: 50

– Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss

– Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode

– SWR Measurement Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)

– Display Modes: Numerical display, curve display, simith chart

– Connector Type: UHF N-type connector

– SMA OPEN-SHORT-LOAD Calibration Kit x 1

– LCD size: 480×272, 4.3′ TFT LCD display

– Touch Screen Type: Capacitive

– All capacitive touch screen on the display – no buttons are needed

– Power Source: USB or Internal Li-ion battery

– Built-in Li-ion charging circuitry and DC-DC booster

– Maximum charging current: 5V/1.5A

– External Storage Method: TF card

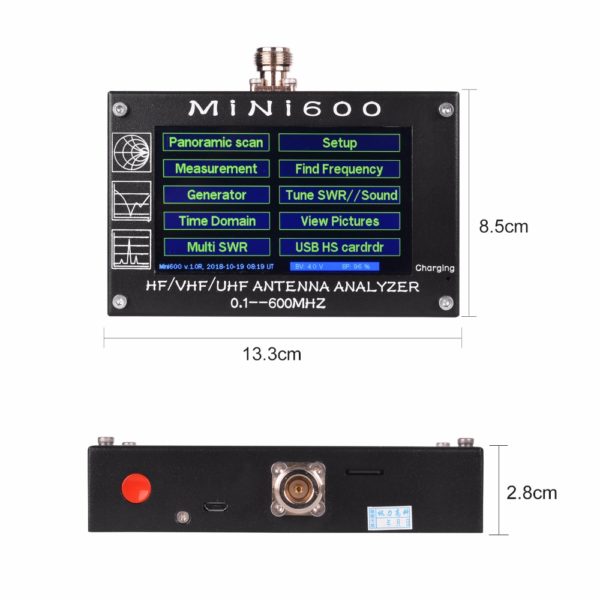

– Dimensions: 133 x 85 x 29 mm (Not including prominent ports)

– N.W.: 550g

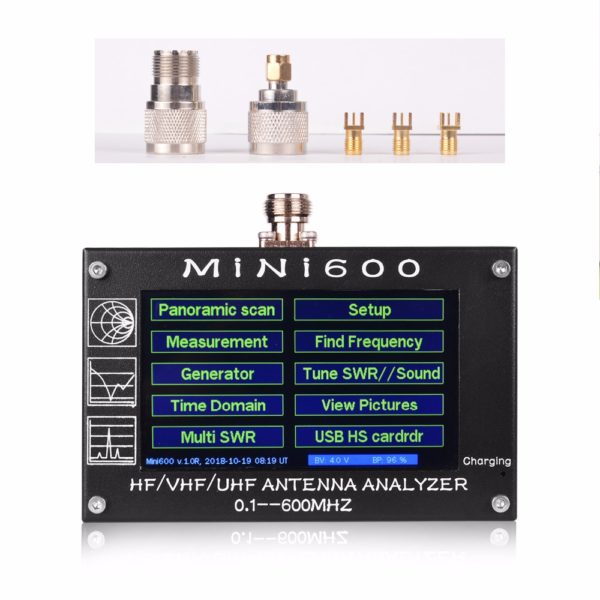

Pack List:

1× 0.1-600MHz MINI600 Antenna Analyzer

1× N-Male to SO239 Adapter

1× N-Male to SMA-Male Adapter
