Motorola XIR M3688 DMR Mobile Vehicle Mototrbo Radio

Motorola XIR M3688 DMR Mobile Vehicle Mototrbo Radio

Motorola XiR M3688 Wireless VHF Walkie-Talkie Mobile Car Radio,walkie talkie 50km motorola XIR M3688 car 20km

1. Features

The rugged MOTOTRBO XiR M3188 and XiR M3688 are available as analog/digital mobile radios that offer all the benefits of the latest technology – from superior audio to greater coverage. These affordable performers are compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritize critical communications.

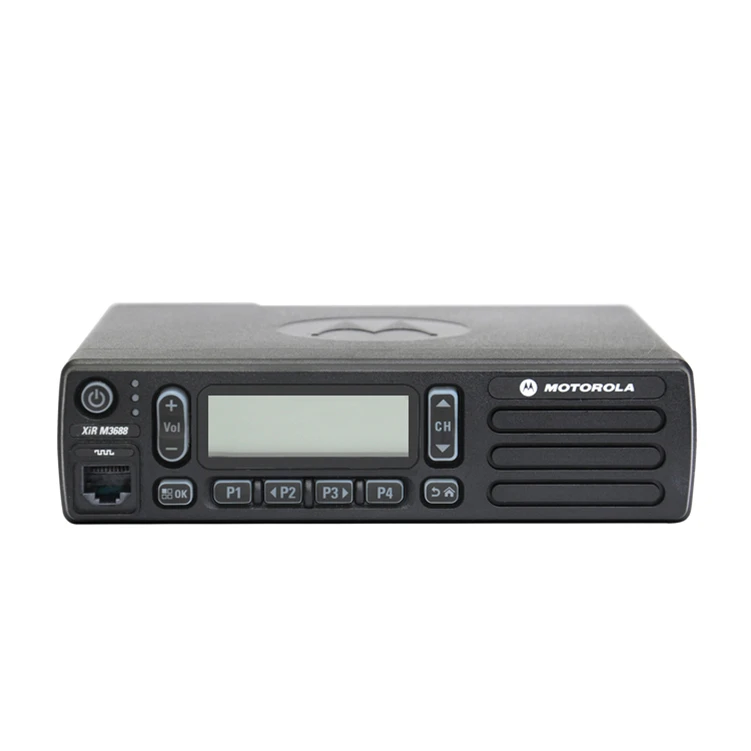

With its bright, high contrast alphanumeric screen, the XiR M3688 allows drivers to see important information such as caller Id at a glance. The XiR M3188 offers lower capacity and a simpler numeric display.

The XiR M3188 and XiR M3688 are so easy to use and deliver such clear voice communications, you’ll be amazed how efficient your operation can be.

FEATURES

• Analogue / digital

• Voice Communications

• Canned Text Message

• dual Capacity direct Mode

• Transmit Interrupt (decode only)

• Voice announcement

• Alphanumeric display (XiR M3688)

• Digital Mobile Radio (DMR) Standards Compliant

• IP54 Rated

OPTIONS •   Radio Management Suite

Frequency Range: 136-174/403-470MHz
Storage Channel: 160 Channels
Dimensions: 44*1169*134MM
Weight: 1.3 kg



2. Specifications



General Specifications
Frequency Range	VHF:136MHz-174MHz UHF:403MHz-470MHz
Memory Channel	160
Channel Spacing	12.5/20/25 kHz
Power Output	1 – 25W; 25 – 45W
Power Supply	13.2Vdc (10.8 – 15.6 Vdc) Negative Vehicle ground
Dimensions (L×W×H)	1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
Weight	2,9 Ibs (1.3 kg)
Communication Range	about 10-20km
Sealing	IP54, MIL-STD
Dust	Meets MIL-STD 810-C,D&E and TIA/EIA 603
Transmitter Specifications
Channel Spacing	12.5 kHz / 25 kHz
Modulation Limiting	± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz
FM Hum & Noise	-40 dB @ 12.5 kHz / -45 dB @ 25 kHz
Conducted/Radiated Emissions	-36 dBm < 1 GHz / -30 dBm > 1 GHz
Adjacent Channel Power	60 dB @ 12.5 kHz / 70 dB @ 25 kHz
Receiver Specifications
Frequency Stability	+/- 0.5ppm
Channel Spacing	12.5 kHz / 25 kHz
Intermodulation	70 dB
adjacent Channel Selectivity (TIa603d)	50 dB @ 12.5 kHz 75 dB @ 20/25kHz
Audio Response	+ 1, -3dB
Digital Vocoder Type	AMBE +2™
Digital Protocol	ETSI TS 102 361-1, -2, -3
