Antenna Dual Band Combiner MX-72H Diamond VHF-UHF Duplexer

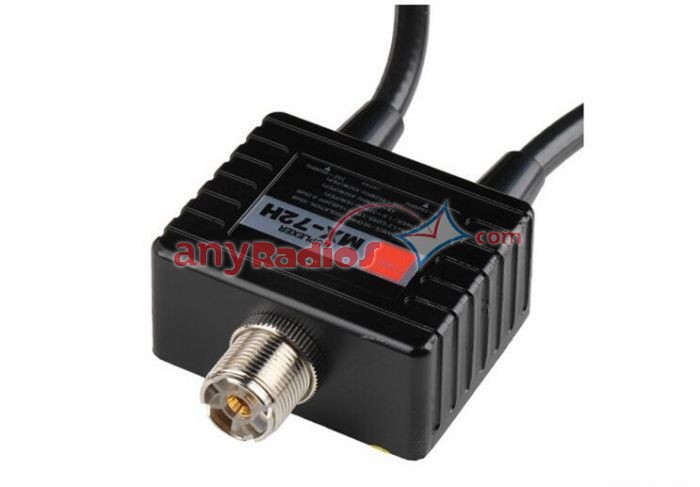

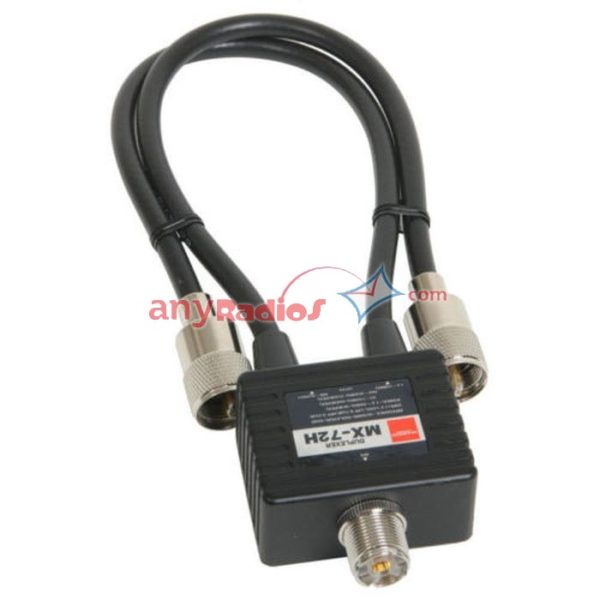

MX-72H Diamond VHF-UHF Duplexer
Diamond duplexer feature quality aluminum construction and black finish (not designed for outdoor use)
Diamond duplexer feature quality aluminum construction and black finish (not designed for outdoor use)
DUPLEXER WITH TWO OUTPUTS (OP-1 /OP-2) AND ONE INPUT: SO-239 (1.6-460MHz)
OP-1: 1.6- 150MHz (PL-259)
OP-2: : 400-460MHz (pl-259)
MAX POWER: 400W (PEP)
Specification:
MX72H Diamond: HF 144/430MHz
Dimensions(mm):46 Wx25 Hx57 D
Weight:220g
Frequency:LPF/1.6 to 30MHz 49 to 150MHz,HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
Power rating:1.6 to 30MHz:400W(CW)/1kW(PEP),
49 to 150MHz:150W(CW)/400W(PEP),
400 to 460MHz:100W(CW)/250W(PEP)
Insertion loss:LPF/Less than 0.15dB,HPF/Less than 0.25dB
Isolation:LPF:More than 60dB
Impedance:50ohms / VSWR:Less than 1.2:1
Connector:(MIX)M-J/(144)M-P/(430)M-P

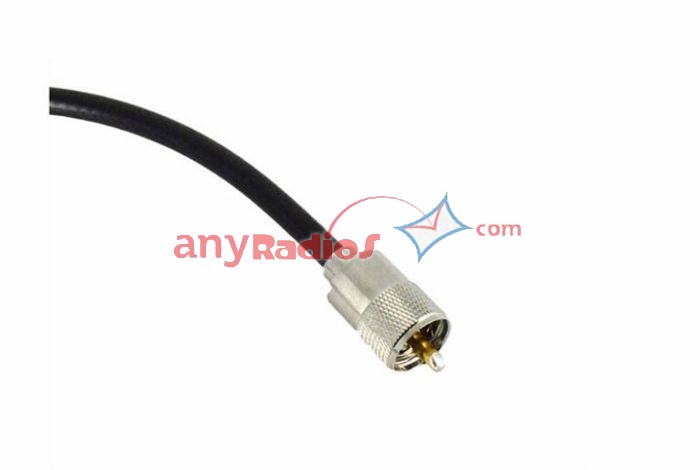

Coaxial cable:5D-2VS(35cm)
Package included:

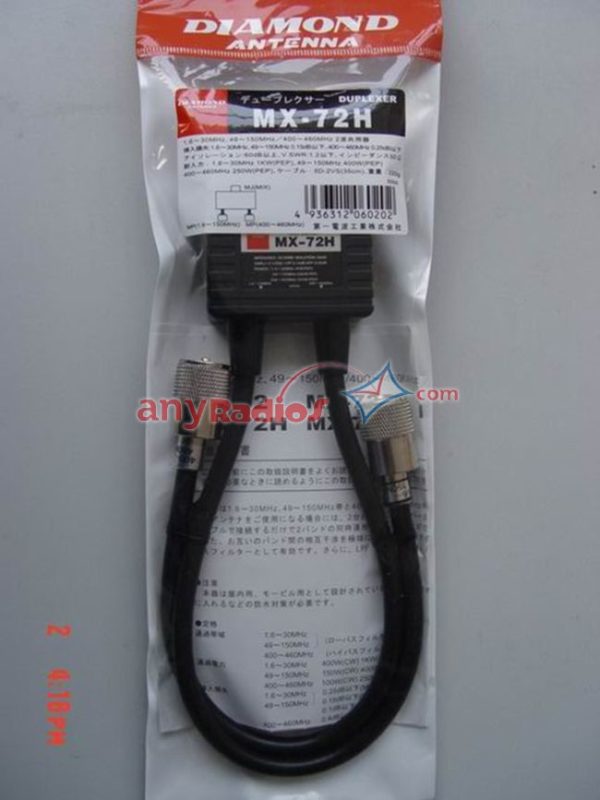

1* MX-72H Diamond Dual Band Combiner
1* MX-72H Diamond Dual Band Combiner
