New Power Amplifier for ICOM Yaesu Kenwood Motorola Baofeng Walkie Talkie

Original price was: $179.00.Current price is: $118.00.

& Free Shipping

Out of stock

Guaranteed Safe Checkout

Radioddity VGC VR-P25U Power Amplifier for Walkie Talkie UHF 400-470 20-40W Output 2-6W Input

Bullet point:

▶   VR-P25U Power Amplifier is a lightweight portable handheld RF amplifier. With the preamplifier you can easily extend the communication range of the handheld radio.
▶   Use the preamp to create: a mobile device with a vehicle-mounted antenna, a high-performance field radio with a field-installed antenna, a radio with a base station on a mast. Your handheld radio connects in seconds and can just as easily be disconnected and taken along the way.
▶   High output power up to 40 watts: with an input power of 2-6 watts, up to 40 watts of output power can be achieved.
▶   Suitable for FDMA mode (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, etc). Supports analogue handheld radios, e.g. Baofeng, Radioddity, Kenwood, Yaesu, ICOM, Motorola analog radios.
▶   Certifications: All VGC amplifiers have been certified by CE, FCC. FCC ID: ZVM-VR-P25U. CE ID: MOST18EE040578
▶   VR-P25U is a lightweight portable handheld RF amplifier.

Features:

▶   Automatic switching
▶   VR-P25UD is suitable for FDMA mode (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, etc.)
▶   High output power up to 40 watts with an input power of a handheld radio of 2-6 watts can be achieved up to 40 watts output power.
▶   UHF band: The amplifier VR-P25U / UD can support UHF (400-470MHz)
▶   small design at a size of 35 * 115 * 135cm it is particularly suitable for outdoor use such as Fielddays or for mounting in the car
▶   Certifications: All VGC amplifiers have been certified by CE, FCC.
▶  Multi-functional: Includes voltage stabilizer, overheating protection, RF sensing, auto power off, harmonic filters.
▶  Integrated speakers and microphone connection
▶  Status display about the current operating state


Specifications:

Frequency range: 400-470MHz
Power supply: 13.8 VDC (± 15%), 5.5 A maximum
Input RF power: 2 – 6W (± 10%)
Output RF power: 20 – 40W
Size: 5.5 in D x 4.5 in. W x 1.4 in. H (135 mm D x 115 mm W x 36 mm H)
Dead weight: 1.5 lbs. (680 g)

1806261434_1

Three Primary Modes of Amplfication:

Radio Controlled

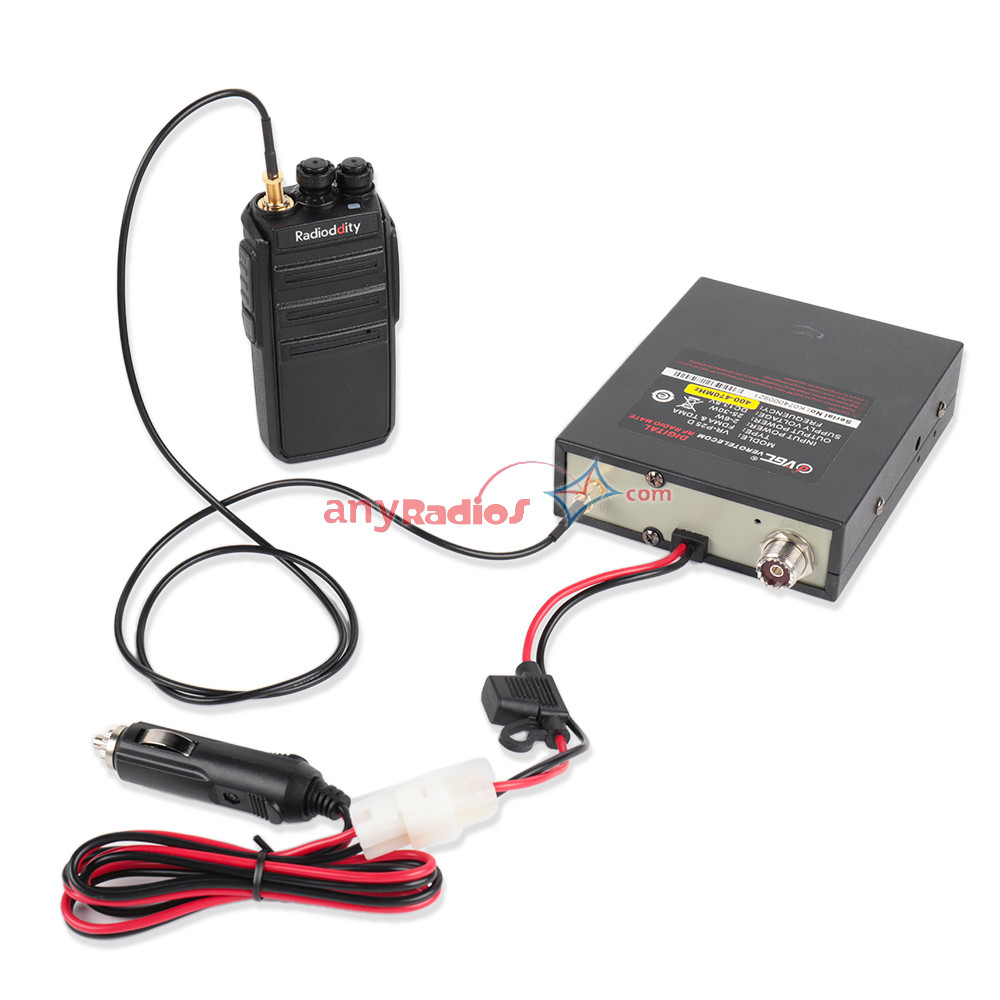

Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Transmit and receive right on the Handheld radio – while your output signal is amplified

Accessory Controlled
Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Connect a speaker microphone, headset, or compatible accessory to the radio. Transmit and receive right on the accessory connected to the Handheld radio – while your output signal is amplified.

Amplifier Controlled
Connect the speaker microphone to the MIC jack on the front panel of the amplifier. Connect to the antenna output of the handheld transceiver to the RF IN connector on the rear panel of the amplifier with the Radio toAmplifier RF cable. Connect the accessory port of your radio to the Control jack on the front panel of the amplifier using the Amplifier Control Cable. Transmit and receive using the speaker microphone on the amplifier while incoming audio is relayed through the loud amplifier speaker.

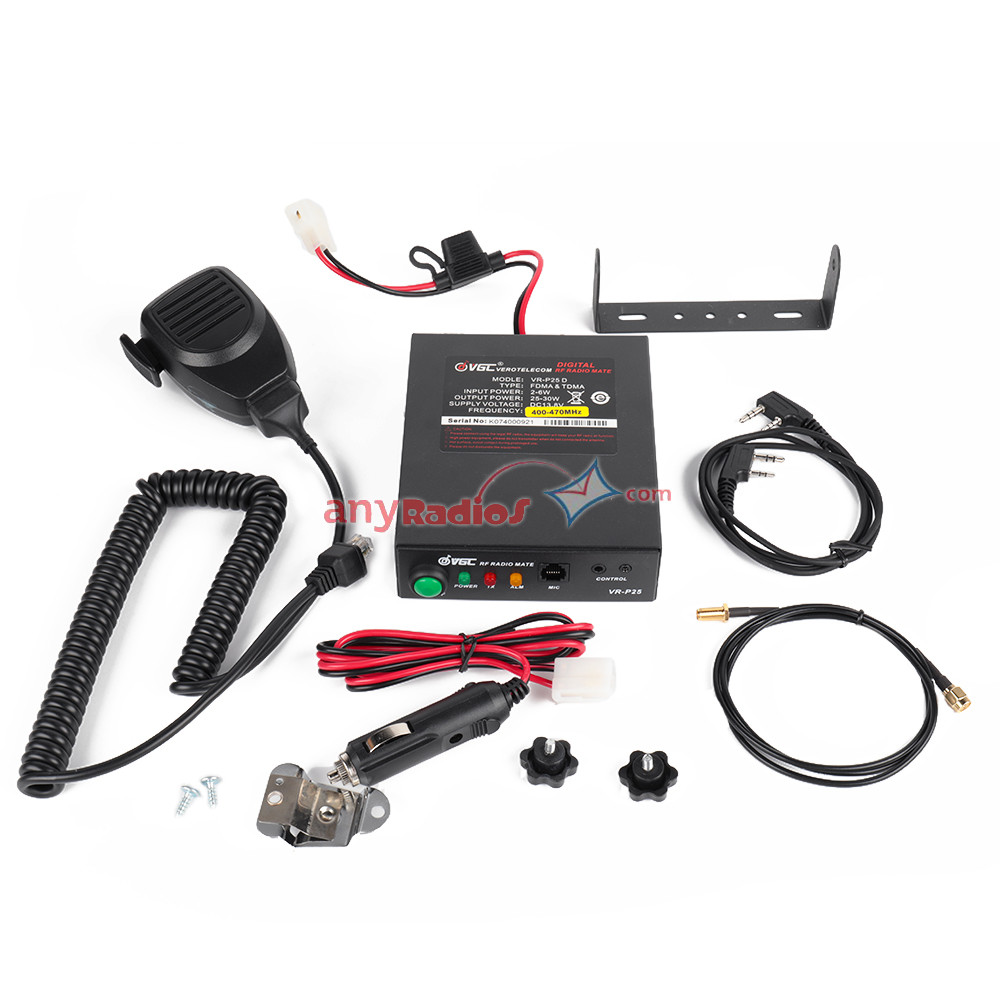

Package:

1 x VGC VR-P25U Power Amplifier

1 x Speaker microphone

1 x SMA female cable

1 x Power Cable

1 x Bracket

1 x Remote control cable (standard K1)

1 x Screw sets

1 x Manual

Weight 1.3 kg
Dimensions 400 × 300 × 100 mm
