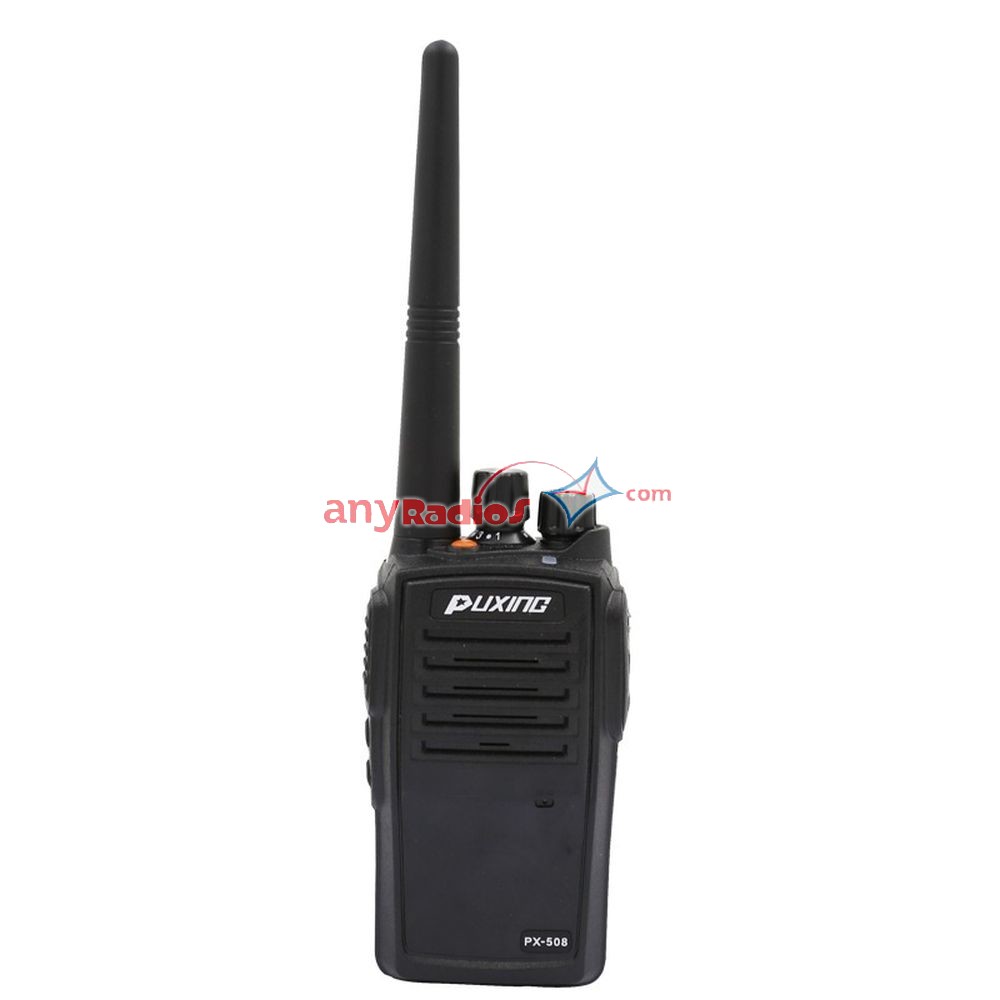

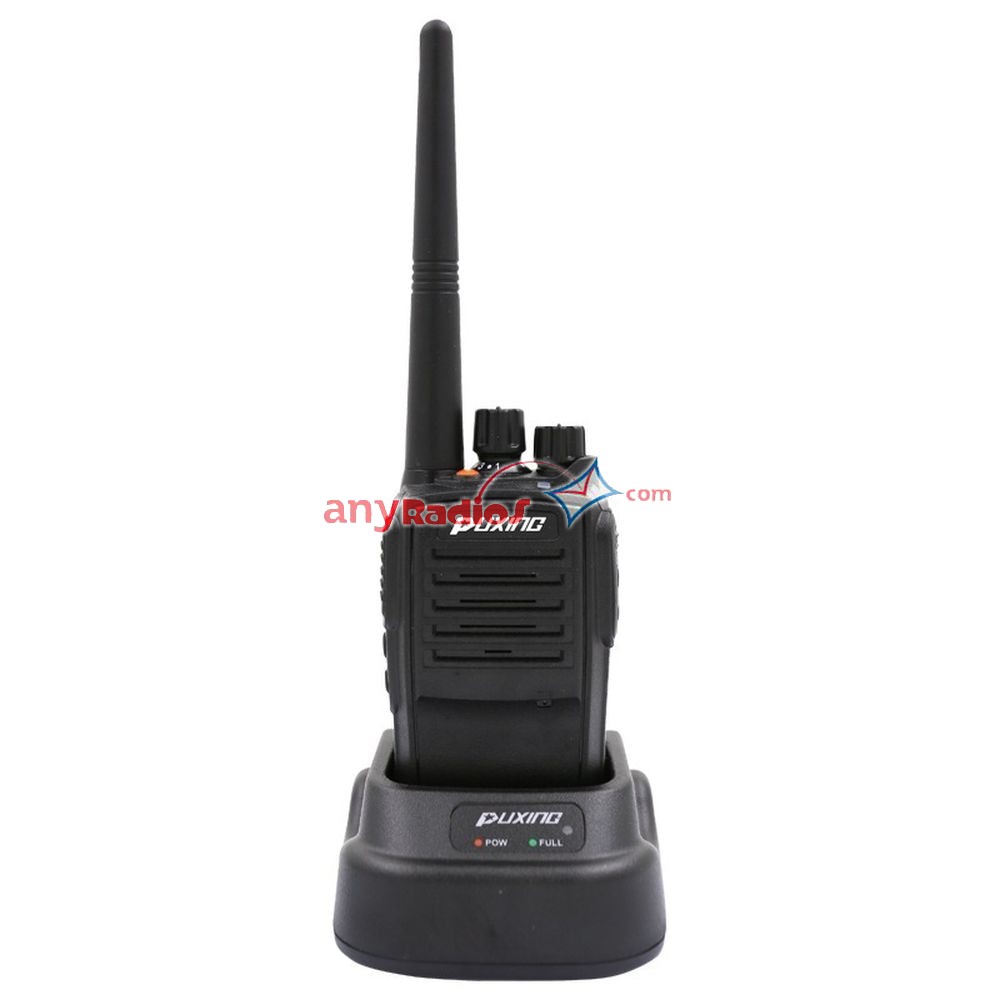

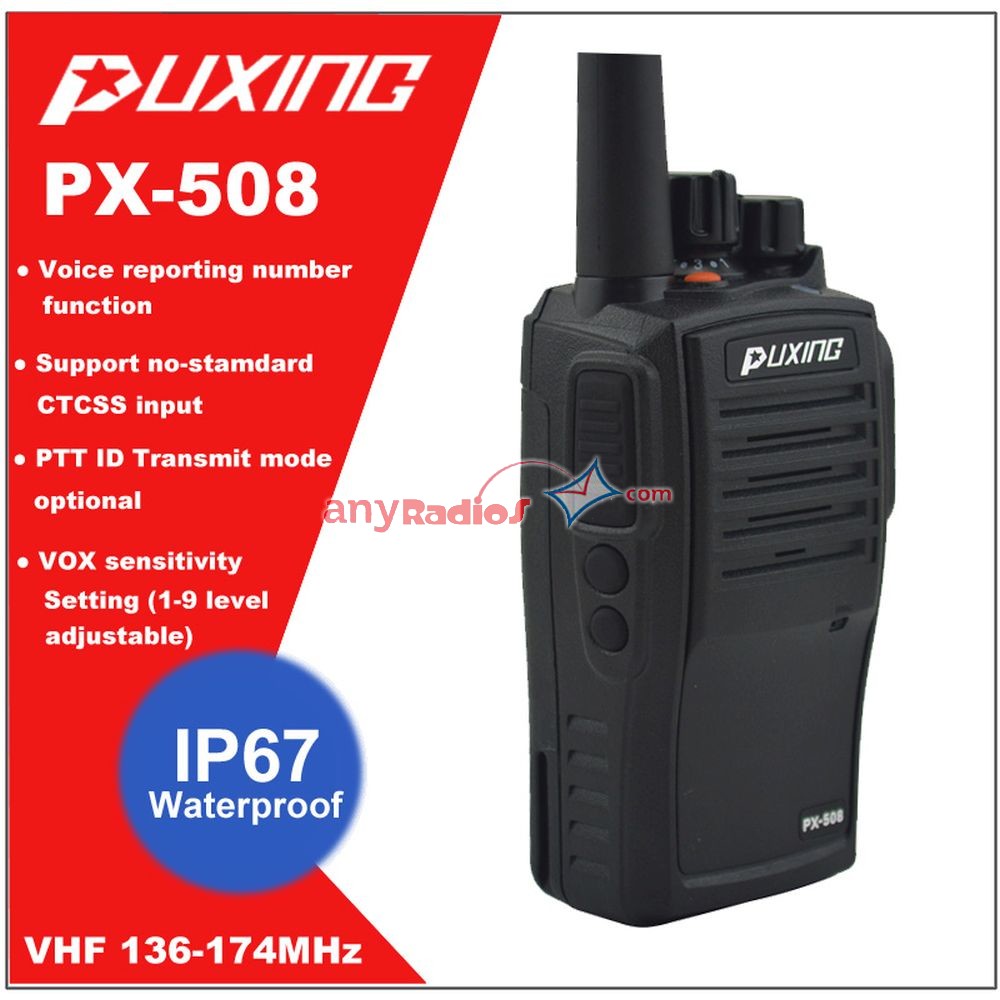

 Puxing PX-508 IP67 Waterproof Walkie Talkie

$99.00 $79.00

IP67 Waterproof & Dustproof Walkie Talkie

New design PCB, strong performance & better penetration

Suit for wade through water marine application

16 Memory Channels

Non-standard CTCSS input.Moitor scan

Scan temperary delete

High/low power selectable/

Talk around/reverse frequency

Busy channels lockout

DTMF ANI encode

50 CTCSS and 105 DCS

Side keys programmable

Emergency call,End roger,VOX 1-9level

PTT ID transmission mode selection



Clear
SKU: 160250 Category:

Description

 Puxing PX-508 IP67 Waterproof Walkie Talkie Dustproof Radio Compact Portable Two-way Radio FM Transceiver

The Puxing PX-508 UHF400-470Mhz/VHF 136-174MHz Two Way Radio is IP67 Waterproof  Handheld Walkie Talkie.

Features:

  1. Compact Size ruggy case:110x50x35mm,
  2. New design PCB, strong performance & better penetration
  3. IP67 Waterproof & Dustproof /suit for wade through water marine application
  4. 16 Memory Channels
  5. VOX 1-9level
  6. PTT ID transmission mode selection

7. Non-standard CTCSS input.Moitor scan

  1. Scan temperary delete
  2. High/low power selectable/

10. Talk around/reverse frequency

11. Busy channels lockout

12. DTMF ANI encode

13. 50 CTCSS and 105 DCS

14. Side keys programmable

15. Emergency call

16. End roger

Specifications:

General
Frequency Range VHF: 136-174MHz

UHF:400-470MHz

Channel 16
Channel Spacing 25 /12.5/10/6.25/5/2.5KHz
Operating Voltage 7.4V
Antenna Impedance 50Ω
Operating Temperature -25°c ~+65 °c
Frequency Stability ±2.5ppm
Transmitter
Output Power 4W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz(W)
Stray Power ≤7.5μW
Modulation Distortion ≤10%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%



Each Set Package Contain:

1× PX-508 IP67 Waterproof Radio

1× 1300mAh Li-ion Battery Pack

1× Charger Unit

1× Antenna

1× Hand Strap

1× Belt Clip

1× User Manual

Additional information

Weight 0.8 kg
Dimensions 100 x 100 x 150 mm
Frequency Range

VHF 136-174 MHz, UHF 400-470 MHz
