Radio Diamond RH775 SMA-M/SMA-F Dual Band Telescopic Wide Band Antenna

$14.90

Clear
SKU: 160444 Category:

Description

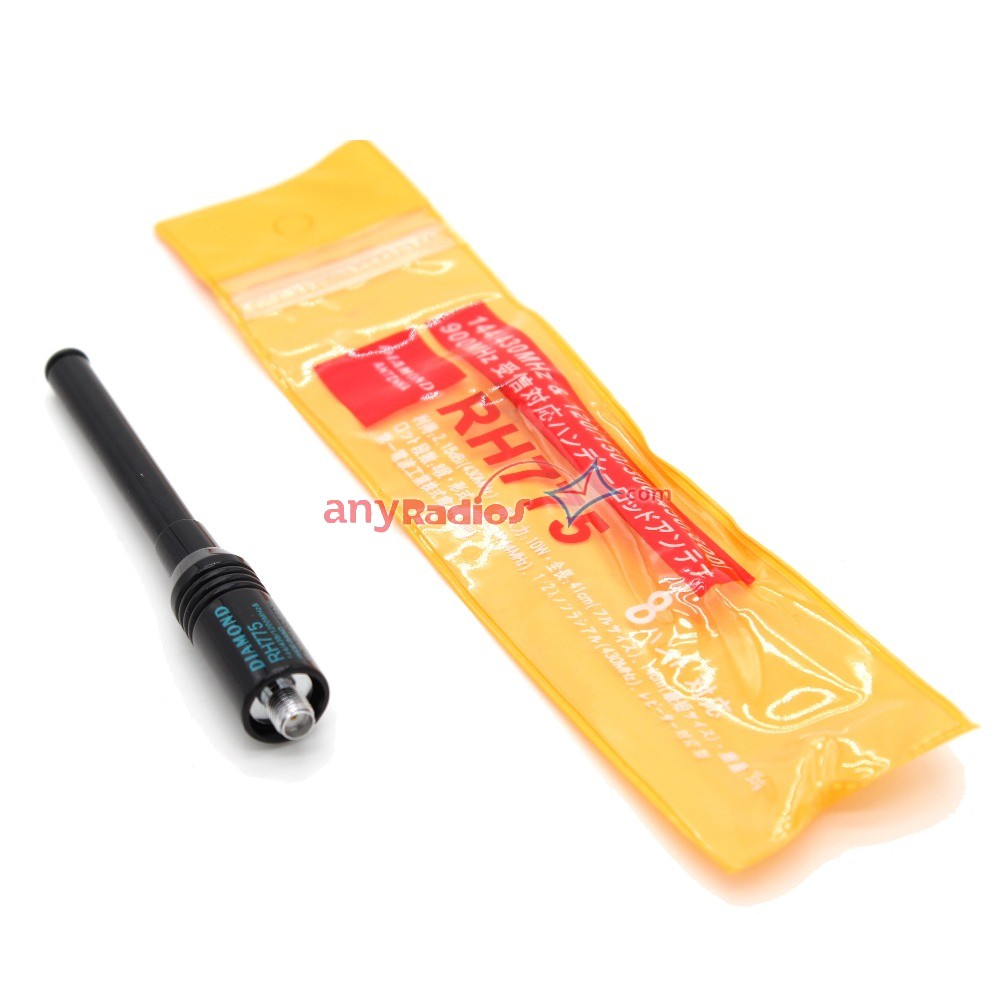

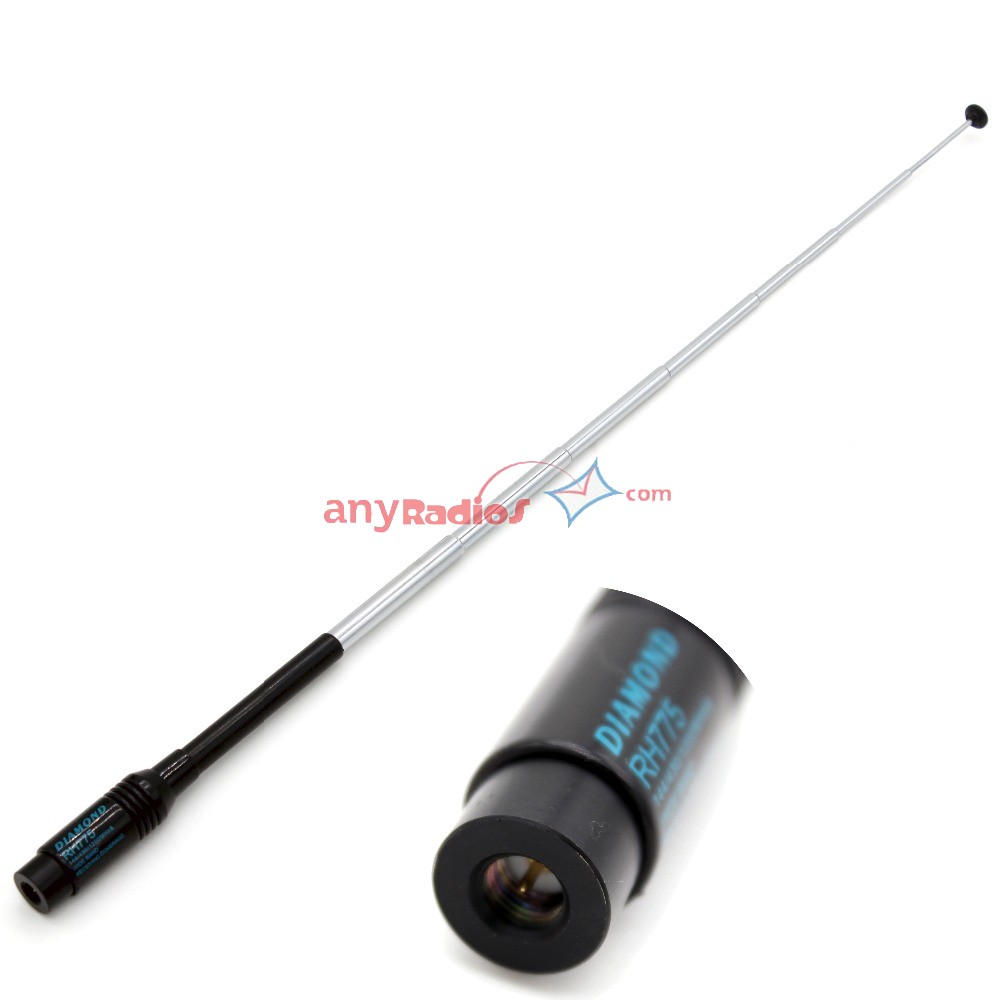

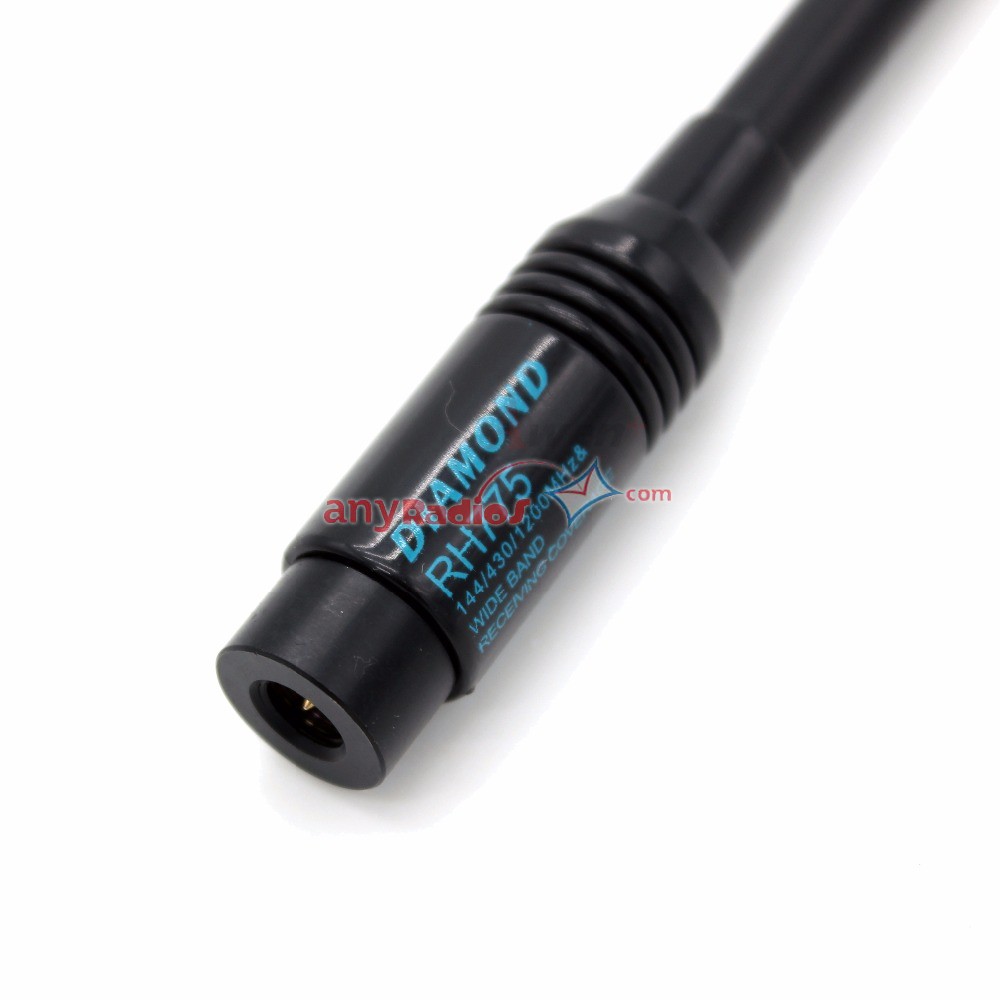

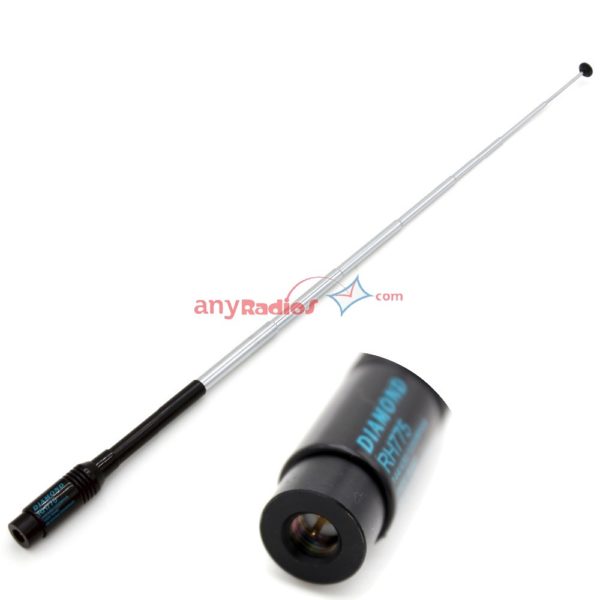

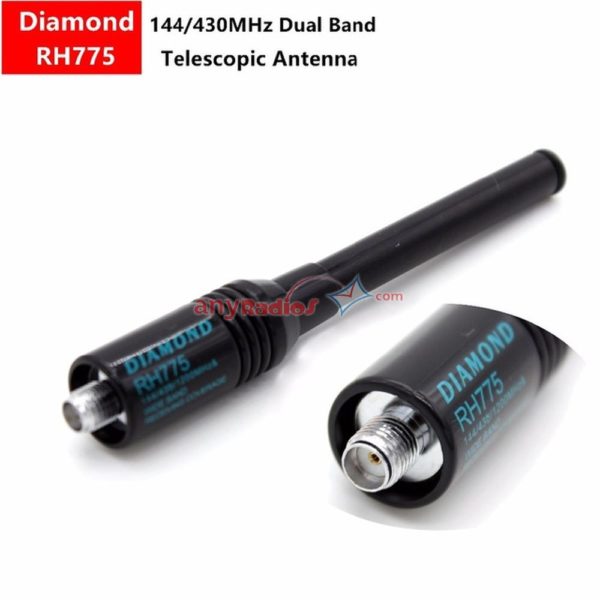

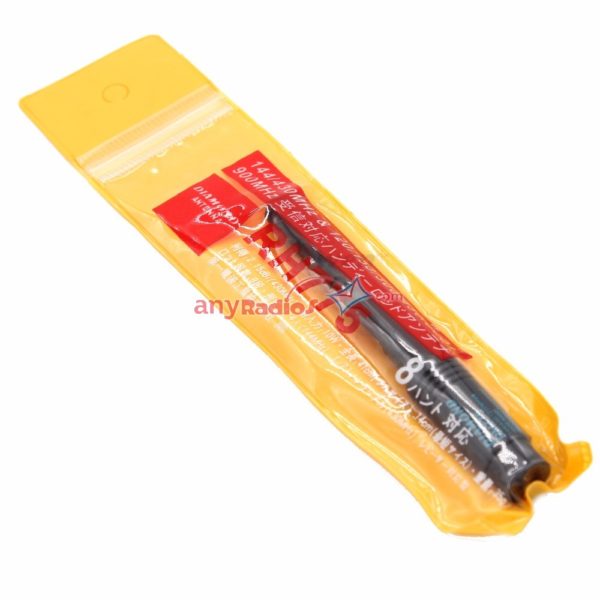

Diamond RH775 SMA 144/430MHz Dual Band Wide Band Telescopic Antenna



Diamond RH775 SMA-Male Specifications:

  1. Frequency:144/430MHz & 120/150/300/450/800/900MHz Wide Band
  2. Gain(MAX): 2.15dBi(430MHz)
  3. Max Power: 10W
  4. Color: Black
  5. Length:10.2cm(38.8cm full stretch)
  6. Connector: SMA -Male
  7. Weight: 20g

Diamond RH775 SMA-Male Compatible Models:

YAESU

Vertex Standard

VX-3R,VX-6R,VX-7R,VX-8R,VX-150,FT-60R,VX-160,VX-180,VX-400,

VX-300,VX-800,FT-270R,FT-250R,VX-230,VX-8DR,VX-8GR,FT-277R

PUXING PX-325, PX-333, PX-2R, PX-V6 px-358 px-359 PX-A6
TYT TH-F5 TH-2R TH-UV3R TH-UVF8D TH-UVF9D
LINTON LT-6100,LT-6188, LT-6100 PLUS
BAOFENG UV-3R UV-100 UV-200
NANFONE NF-6600,NF-669
Zastone ZT-2R
Wouxun KG-UV6D
Tonfa UV-985

Notice: If your radio model not compatible, please see my other item or tell us your model number by message or email , then, we will help you find one that suit for you.



Diamond RH775 SMA-Female Specifications:

Brand Name  Diamond RH775 Telescopic Antenna
Frequency 144/430MHz & 120/150/300/450/800/900MHz
Gain 2.15dB
Max Power 10Watts
Impedance 50Ω
Connector SMA Female
Weight 30g
Length 9.8cm —> 38.5cm(full strectch)

Diamond RH775 SMA-Female Compatible Radio Models:

for Kenwood

TK-360, TK-370, TK-370G, TK-372, TK-372G, TK-3100, TK-3140, TK-3160, TK-3170, TK-3180, TK-3200, TK-3202, TK3207

for LINTON

LT-3288, LT-6288, LT-3188, LT-2188, LT-3260, LT-3268, LT6188, LT3288

for PUXING

PX-777, PX-777 PLUS, PX-666, PX-888,PX-888K

for WEIERWEI

VEV-3288S, VEV-6288, VEV-3288

for QUANSHENG

TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV2

for WOUXUN

KG-689, KG-689 PLUS, KG-669, KG-669 PLUS, KG-659, KG-699E, KG-UVD1P

for HYT

TC-268, TC-268S, TC-368, TC-368S, TC-370S, TC-500, TC-500S

For VEASU

UV-8DR

for Retevis

Retevis H777, Retevis R888S Plus, RT-5R

for TYT

TH-UVF1 T2 T3 F6 300 500 600 800 900 9900

for BAOFENG

BF-666S, BF-777S, BF-888S, BF-320, BF-480, BF-490, BF-V6, BF-V8, BF-388A, BF-UV5R, BF-UV5RA, BF-UV5RB, BF-UV5RC, BF-UV5RD, BF-UV5RE, BF-UV5RE Plus, UV-5RT,BF-UV82, UV-B5, UV-B6 , GT-3 , UV-6R, BF-F8+,GT-3TP,UV-82HP,UV-82HX, BF-F8HP, BF-F9 V2+, DM-5R Plus

Other radios suitable for this connector antenna

Note: Please contact us if you radio not appeared in compatible list, we will find the correct antenna for you.



Package Including:

1X Diamond RH775 SMA (SMA-M/SMA-F) Antenna

Additional information

Connector

SMA -Male, SMA-Female
