2Pcs/Lot TYTERA Professional TYT-88S UHF 400-470MHz 2W 16 Memory Channels VOX Scrambler Portable Talkie Walkiea
Features:
-Squelch Level Selectable
-Monitor
-TOT
-Channel Scan-
-Battery Save Function
-Low Battery alert
-Busy Channel Lock
-Wide/Narrow bandwidth Select
-VOX
-Scrambler
-CTCSS-DCS
-One-Key Frequency Copy
Copy frequency from another Radio with one-key easy operation
– Over-the-air Programming
Frequency copy all channels each other at one times for same working solution system of walkie talkie
Specifications:
General
Frequency Range: 400-470MHz
Channel No.: 16
Operating Voltage: 3.7V DC
Antenna: high gain antenna
Antenna impedance: 50 ohm
Mode of operating: Simplex
Charging Current: 500mA
Dimension: 158*57*33mm
Battery Capacity: 1200mAh
Transmitter
Frequency Range: 400-470MHz
RF Power: ≤2W
Modulation: 16KFØ 3E
Spurious Component: ≤7.5uW
Modulation Noise: <-40dB
Modulation Distortion:<5%
Frequency Stability: 5ppm
Max Fr. Deviation: ≤±5KHz
Current: ≤1200mA
Audio Response(30-3000Hz):+6.5~-14dB
Adjacent Channel Power: ≥65dB
Modulation Sensitivity: 10±2mv
Receiver
Frequency Range: 400-470MHz
Receiving Sensitivity: ≤0.2uV.
Occupied Bandwidth: ≤16KHz
Adjacent Ch. Selectivity: ≥ 65dB
Inter-modulation: ≥55dB
Audio Output Power: 1W
Audio Distortion: ≤ 5%
Frequency Stability: 5ppm
Transmission Current: 150mAh
Receiving Current: 55mAh
Standby Current: 55mAh
Audio Response(300-3000Hz): +7~-12.5dB
Reference Frequency: 26.000MHz

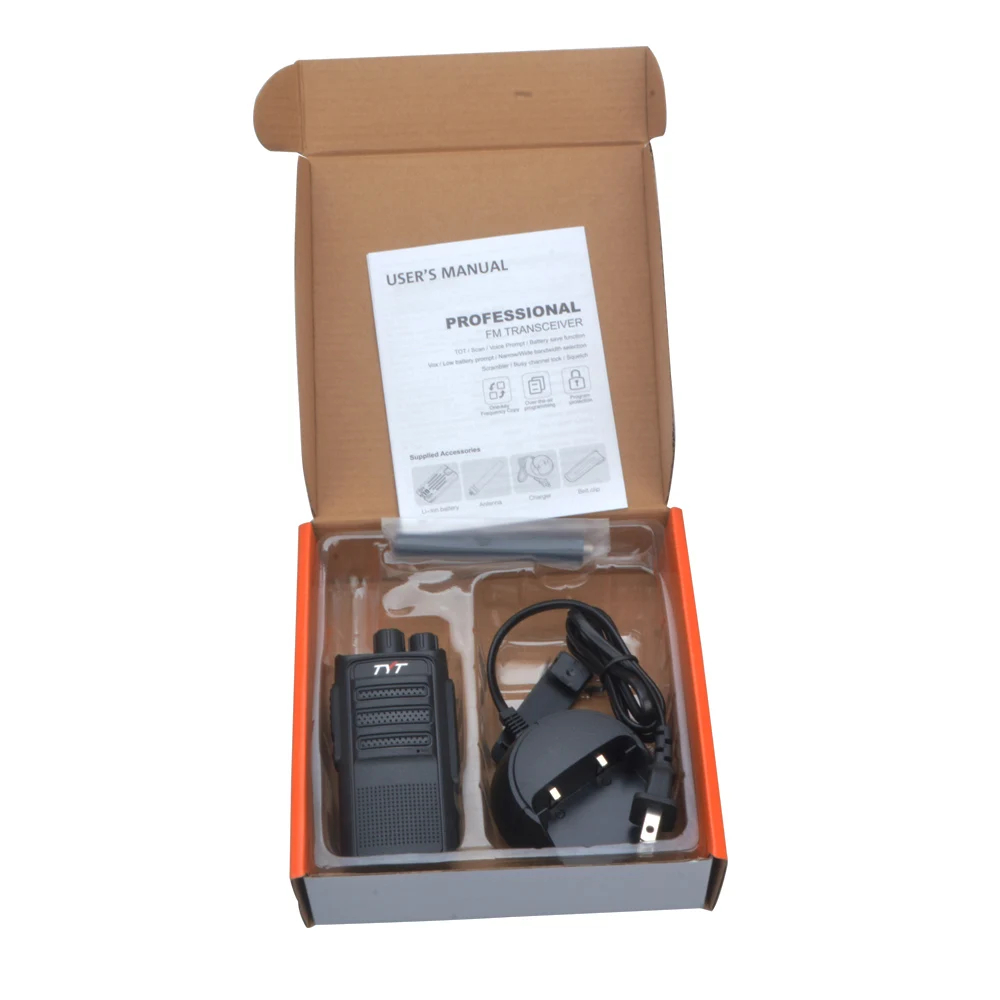

Package Contain:

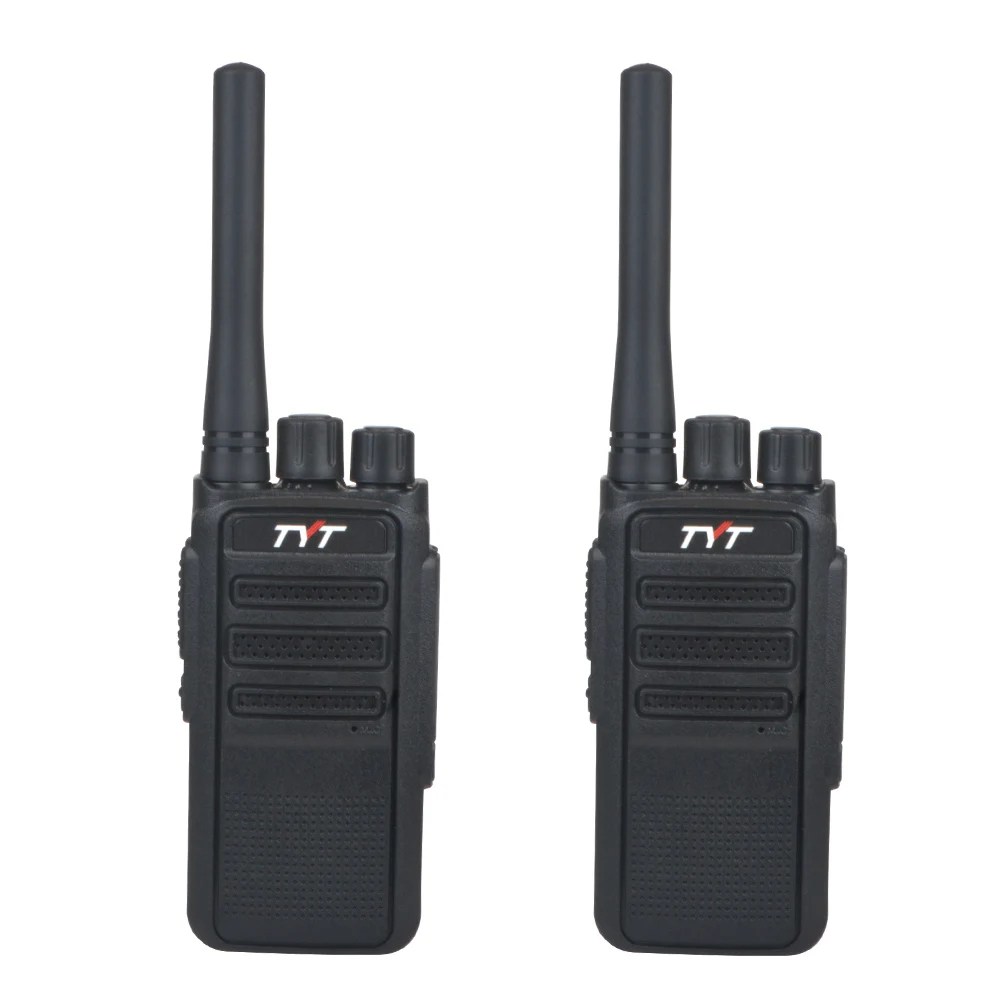

2× TYT-88S UHF:400-470MHz Radio
2× 3.7V 1200mAh Li-ion Battery Pack
2× SMA-Female Dual Band Antenna
2× Belt Clip
2× ENG Manual
2× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
