Sale!

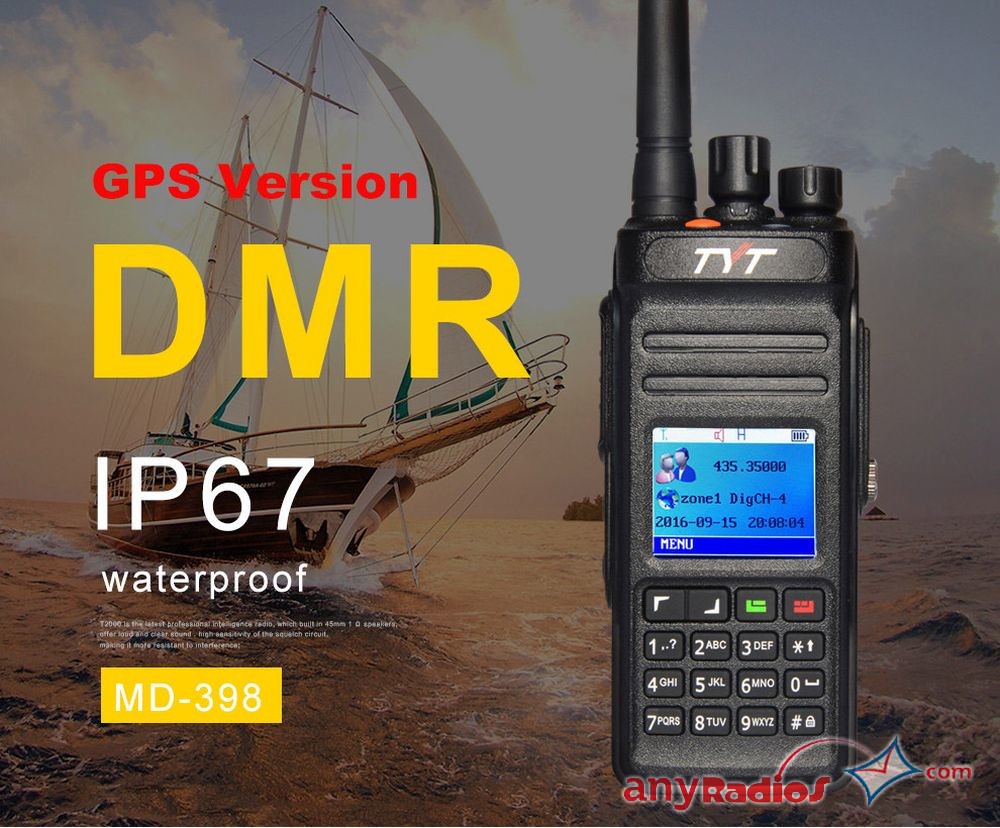

TYT MD-398 Portable 10W DMR GPS Waterproof IP67 UHF 400-470MHz Radio

$130.00 $108.00

Complying with digital protocol ETSI TS 102 361-1,-2,3 / Compatible with Mototrbo Tier I  & II

GPS function / Scanning Function Lone work / Analog wide/Narrow bandwidth selection

End-tone Elimination / Operate in both Digital & Analogue mode / Emergency Alert

Allows easily migrate from analog to digital / Key side setting / High-Low Power

Provide clearer voice communications in digital mode throughout the coverage area

SKU: 160111 Category:

Description

TYT MD-398 DMR Digital Walkie Talkie Waterproof IP67 Two Way Radio High Power 10W UHF 400-470MHzPortable Radio Communicator

Main Function:

GPS function

1024 channels

IP67 Waterproof

Record

10 Watts Output Power

PC Programmed function Software online updating

VOX Chinese and English Voice Selection

Color LCD display

Text messages in digital mode

Digital Encryption function

Built-in CTCSS/DCS

BCLO

High & Low Power selction Talk around function

Complying with digital protocol ETSI TS 102 361-1,-2,3

Compatible with Mototrbo Tier I  & II

Scanning Function Lone work

Analog wide/Narrow bandwidth selection

End-tone Elimination

Operate in both Digital & Analogue mode

Allows easily migrate from analog to digital

Provide clearer voice communications in digital mode throughout the coverage area

Emergency Alert

Key side setting

High-Low Power

MD-398
General
Frequency Range 400-470MHz
Channel 1000
Working voltage 7.2v
Working temperature -30℃~+60℃
Storage temperature -40℃~+85℃
Continuous working time Analog:15hours    Digital:25hours
Battery capacity 2800Mah
Transmitter
Frequency Range 400-470MHz
Channel spacing 12.5KHZ
Frequency stability +/-1.5ppm
TX power Low:1W  High:10W
FM noise -40dB @ 12.5KHZ
Spurious emission <-36dB m @ 1GHZ,> -30dB m @ 1G
Adjacent channel selectivity -60dB @ 12.5KHZ
FM modulation mode 12.5KHZ:11 F 0 F 3 E
4FSK digital modulation mode 12.5KHZ(data only):7K60FX
12.5KHZ(data+voice):7K60FX
Modulation limit 2.5KHZ @ 12.5KHZ
Audio response +1dB~-3dB
Rated audio distortion ≤3%
Digital protocol ETSITS102361-1,-2,-3
Vocoder type AMBE+2TM
 Receiver
Frequency Range 400-470MHz
Channel spacking 12.5KHZ
Frequency stability +/-1.0ppm
Analog sensibility 0.35uV/-116dBm(20dB SINAD)
0.22 uV/-120dBm(Typical)
Digital sensibility 0.3 uV/-117.4dBm(BER 5%)
0.7 uV/-110dBm(BER 1%)
Spurious response TIA603C: 65dB
ETSI:  65dB
Adjacent channel selectivity TIA603C: 60dB @ 12.5KHZ
ETSI:  60dB @ 12.5KHZ
Spurious response suppression TIA603C: 70dB    ETSI: 70dB
Receiving spurious emissions <-57dBm @ 1GHZ,> -47dBm @
Blocking 84dB
Rated audio power 1W
Audio response +1dB~-3dB
Rated audio distortion ≤3%

PACKAGE Contents:
1 x TYT MD-398 Digital Radio (GPS)
1 x 7.4V 2800mah Li-ion Battery Pack LB-75L
2 x SMA-Male Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 110V ~ 250V ) with Correct Adapter for your Country

1 x Programming Cable & CD Software

1 x TYT Earpiece

MD-398

Additional information

Weight 0.8 kg
Dimensions 200 × 100 × 50 mm
