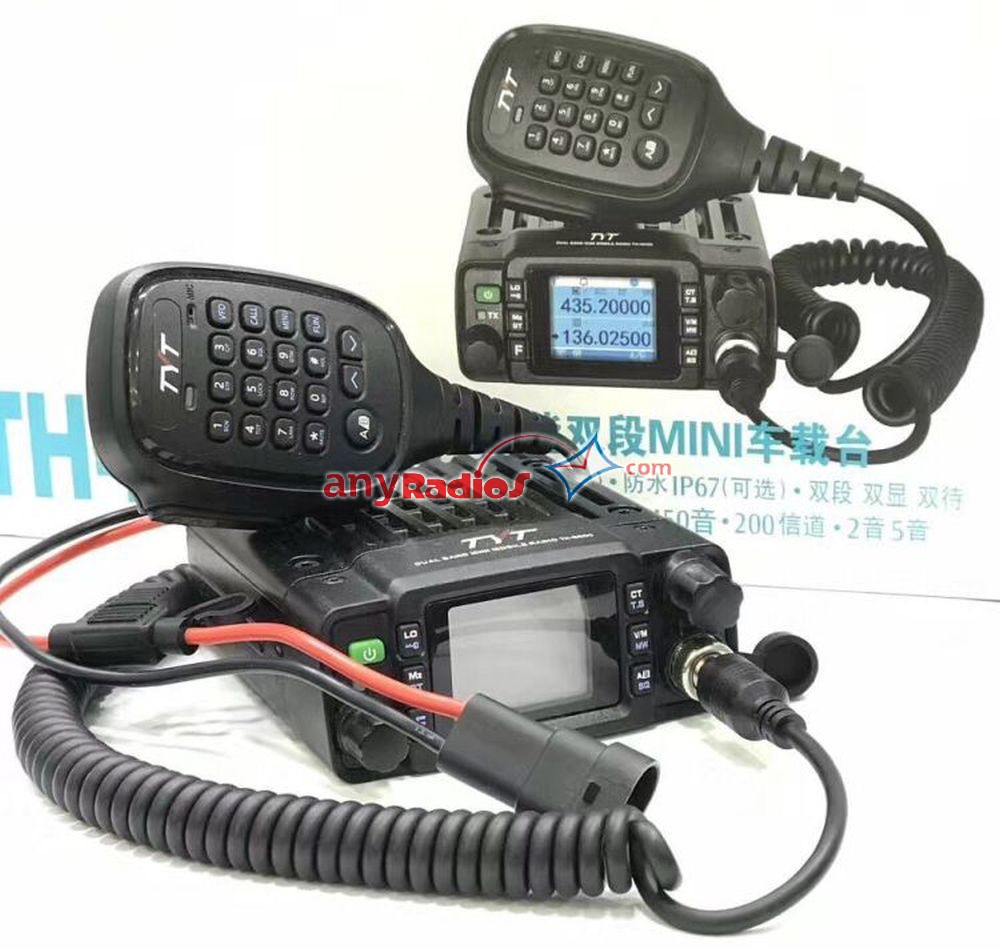

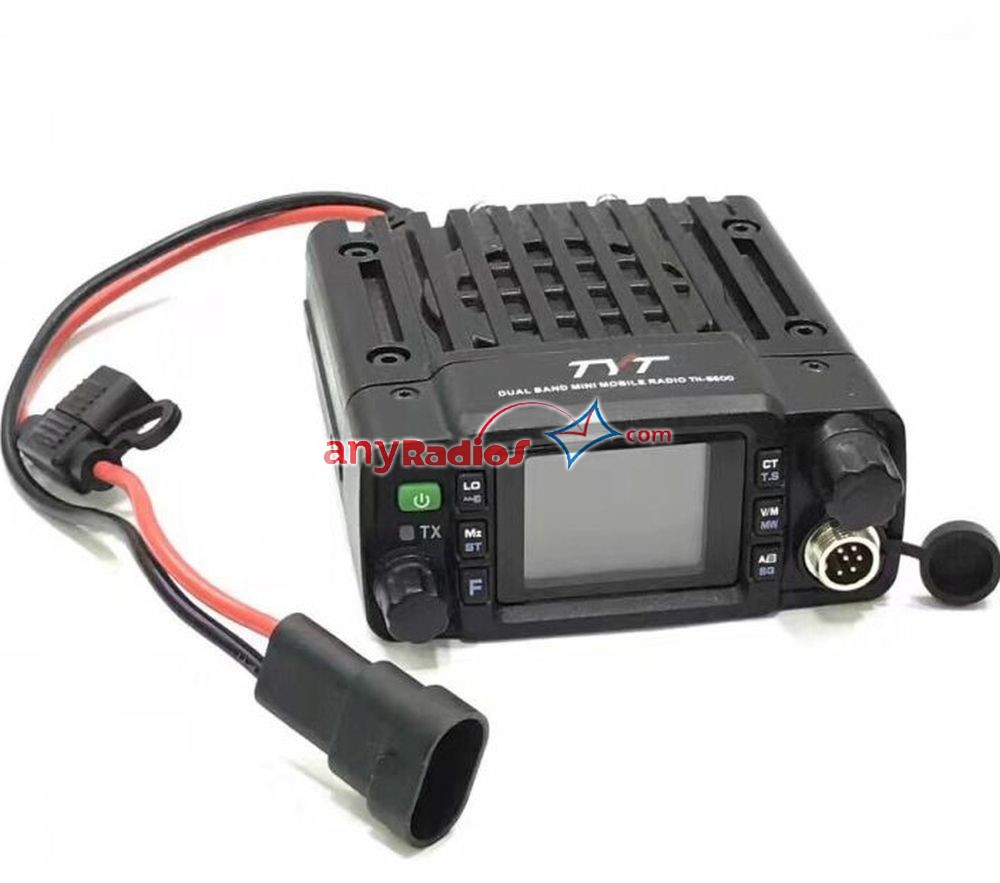

Tytera TH-8600 UHF VHF Dual Band Vehicle Mobile Base Radio

Tytera TYT TH-8600 Dual Band Mini Mobile Transceiver Two Way Radio

 Includes Programming Cable & Software, not waterproof version.

The TH-8600 is a powerful dual band, dual display and dual standby transceiver with 20 watts of power on 400-470MHz UHF and up to 25 watts on 136-174MHz VHF frequencies. It has 200 programmable channels and four programmable function keys so you can maximize flexibility and minimize distraction while you operate RX/TX at the wheel.

The TH8600 features CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and dual band reception. It also features 2Tone/5Tone decoding and encoding, remote kill/stun/activate and a 1750Hz burst tone.

With all these options, one thing is clear. The TYT TH-8600 was made for QUAD and motorcycle action. It’s perfect for almost any compact on or off-road vehicle. Now you can get it for yours.

The Tytera TH-8600 comes with hand microphone, mobile mounting bracket, mobile power cord, an owner’s manual and a one year manufacturer warranty from Tytera.



Features:

• 200 Memory Channels
• Dual Band
• 136-174MHz VHF Frequencies
• 400-470MHz UHF Frequencies
• Repeater Capable
• 20W (UHF)/25W (VHF) Transmit Power
• Power Selectable
• Memory Channel
• Channel Scan
• Priority Scan
• Skip Channel
• Dual Watch
• Busy Channel Lockout
• Talk Around
• CTCSS/DCS Encode/Decode
• Backlit Color LCD Display
• Channel Name Edit and Display
• LED Status Light
• Auto Power Off
• Timeout Timer
• 5mm Speaker Port
• Cloning Capable
• PC Programmable (Requires Optional Cable)
• Four Programmable Function Keys
• Internal Speaker

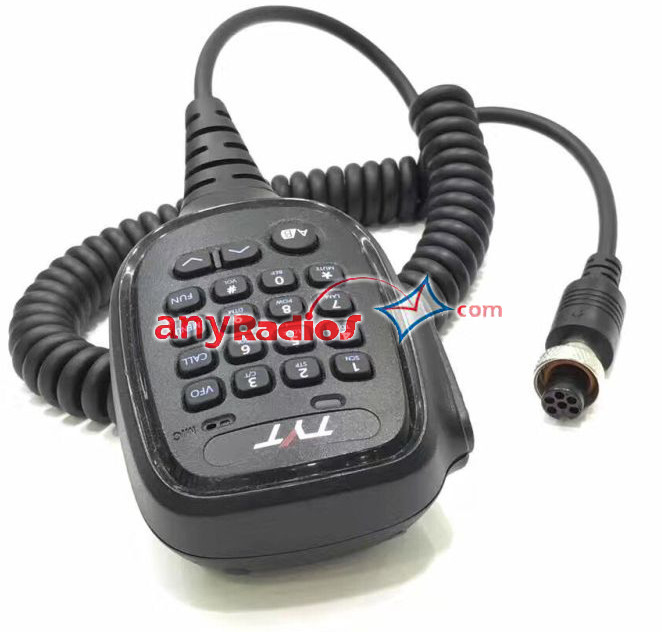

• Hand Microphone
• Cooling Fan
• Submersible
• DTMF Encoding and Decoding
• Stun/Kill/Activate
• Reset

Item number	TH-8600
General
Frequency Range	136-174MHz/400-470MHz
Channel No.	200
Frequency Stability	±1ppm
Operating Temperature	-30℃～+60℃
Operating Voltage	13.8V DC
Dimension	107mm*125mm*45mm
Transmitter
Output power	25W
Transmitting Current	4A@13.8V
Standby Current	0.2A@13.8V
FM Modulation	Wide band:16K0F3E
	Narrow band:11 K0F3E
Modulation distortion	＜5%
FM Hun and Noise	≥45dB@25KHz ≥40dB@12.5KHz
Adjacent Ch. power	≥60dB@12.5KHz ≥70dB@25KHz
Audio response	+1~-3dB
Receiver
Sensitivity	0.2μV
Adjacent Ch. Selectivity	60dB@12.5KHz 70dB@25KHz
Intermodulation	≥60dB/≥65dB
Spurious Rejection	≥70dB
Audio response	+1~-3dB
RF Sensitivity	-122dbm(12db SINAD)
Audio Distortion	<5%
FM Hun and Noise	≥45dB@25KHz ≥40dB@12.5KHz
Rated audio	4W

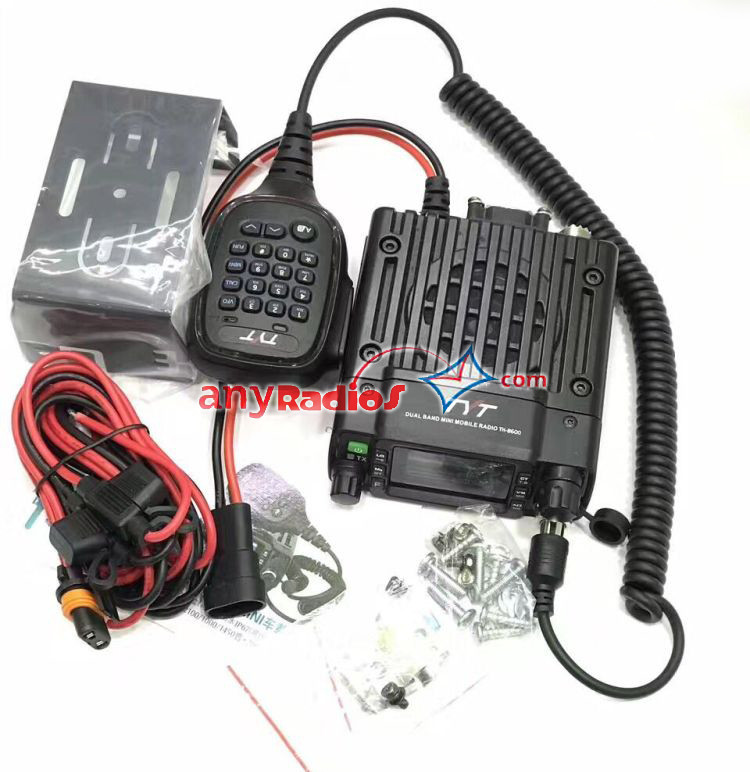

Each Unit Package Contain:

Tytera TYT TH-8600 Dual Band Mini Mobile Two Way Radio

Hand Microphone

Mobile Mounting Bracket

DC Power Cable

Owners Manual

Tytera TH-8600 Specifications

• Dimensions: 125mm (W) × 45mm (H) × 107mm (D)
• Antenna Connector Type: SO-239 (UHF Female)
