Sale!

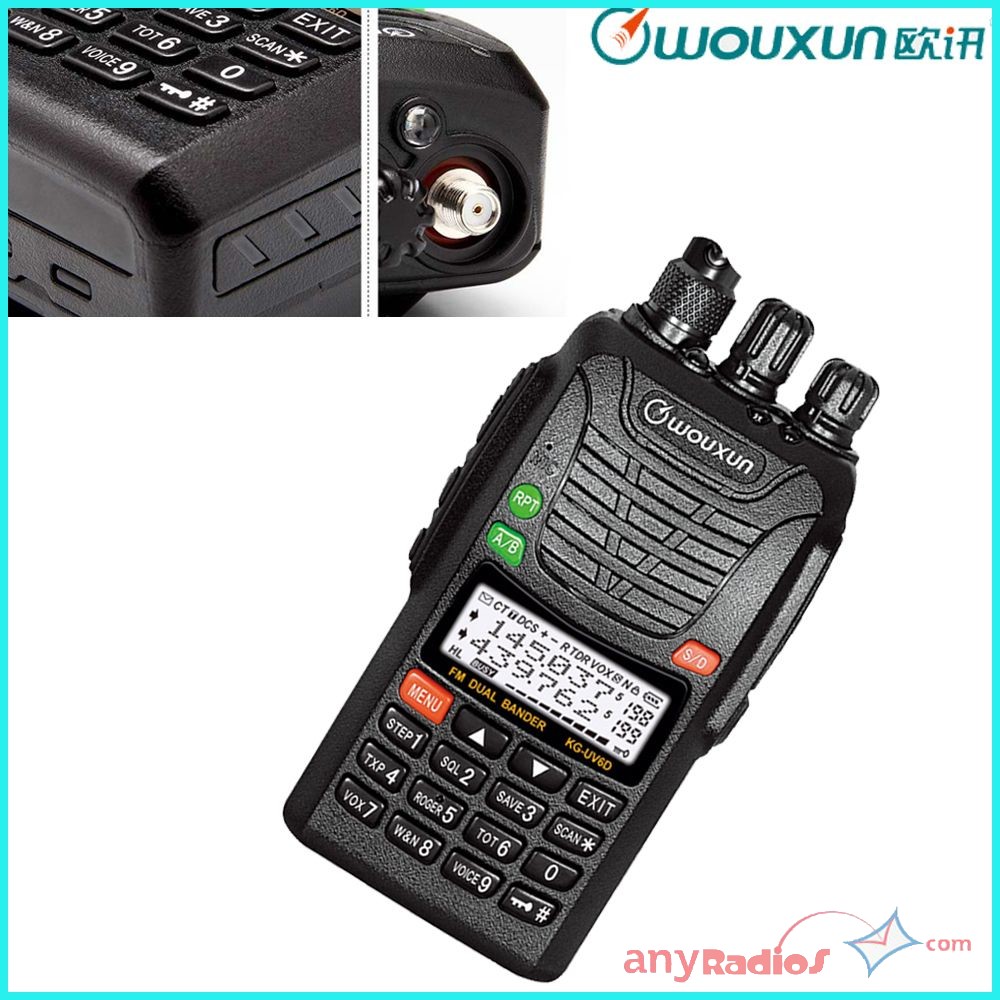

Wouxun KG-UV6D Dual Band Long Range IP55 Walkie Talkie

$135.00 $118.00

Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)

Dual alpha numeric, backlit display with channel name edit

Selectable high/low power settings (VHF: 5W high/2W low) (UHF: 4W high/2W low)

Includes extended life high capacity li-ion battery as standard

Includes intelligent desktop 3-4 hour rapid charger

Loud speaker audio output (500 mW)

Bright flashlight illumination function

Meets IP55 waterproof rating

SKU: 160123 Category:

Description

Wouxun KG-UV6D Handheld Two Way Ham Radio Dual Band UHF VHF Professional Long Range Walkie Talkie IP55 Waterproof 2 Way Radio

Features:

  • Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)
  • Dual alpha numeric, backlit display with channel name edit
  • Selectable high/low power settings (VHF: 5W high/2W low) (UHF: 4W high/2W low)
  • Includes extended life high capacity li-ion battery as standard
  • Includes intelligent desktop 3-4 hour rapid charger
  • Loud speaker audio output (500 mW)
  • Bright flashlight illumination function
  • Meets IP55 waterproof rating
  • English female voice prompts enable non-sighted operation (can be turned off)
  • 128 memory channels (shared)
  • VOX Function
  • Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
  • Wide/narrow bandwidth selection (25 or 12.5 kHz)
  • Power on display: show battery voltage, 6-character customizable welcome message, or display test
  • Windows PC programmable, free software available for download. Optional low cost cable (SKU: WXUSB or WXSER) required.
  • Radio to radio cloning with optional cable (SKU: WXCLN)
  • Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
  • 105 groups DCS/50 groups CTCSS
  • DTMF encoding (includes ABCD tones, continuous with button press duration)
  • CTCSS encode/Decode (no decode delay)
  • Stopwatch function
  • SOS function
  • Low-voltage voice prompt
  • Busy channel lockout
  • Selectable transmit over timer (from 15 to 600 seconds)
  • Selectable step sizes of 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
  • Multiple scan modes including priority scan
  • Keypad lock (auto or manual)
  • Programmable by computer
  • High contrast white backlit keypad. All keys are backlit (except A/B, S/D & RPT)



Specifications

KG-UV6D

Frequency Range (RX/TX)

 VHF: 136-174 MHz
UHF: 400-470 MHz
FM: 76-108 MHz (RX only)

Memory Channels

199 channels (shared)

Operating Voltage

7.4 VDC

Operating Temperature

-22°F to +140 °F (-30°c to +60°c)

Dimensions (W x H x D)

2.6 x 4.7 x 1.6 inches (65 x 119 x 39.5mm) (without antenna)

Weight

 8.9 ounces (253 grams)

 RF Carrier Power

VHF: 5W high/2W low, UHF: 4W high/2W low

Audio Output Power

500mW

Waterproof Rating

Meets IP55 waterproof rating

Antenna Impedance

50Ω

Sensitivity (12dB SINAD)

0.16 µV

Receive/Squelch Sensitivity

≤0.2 µV

Audio Distortion

≤5%

Audio Modulation

+3dB (pre-emphasis by 6dB between 0.3-3KHz)

Audio Response

 (300-3,000Hz) +1 to -3dB

Performance of Amplitude Limiter

≤3

Effective Radiation Power (ERP)

within pre-determined value ≤±7.5dB

Maximum Frequency Deviation

25KHz ± 5KHz

Inter Modulation Attenuation

≥40dB

Modulation Distortion

 ≤10%

Co-channel Rejection

≥-8.0dB

Adjacent Channel Selection

Channel Space: 25KHz ≥ 70dB

Channel Space: 12.5KHz ≥ 60dB

Inter-modulation

≥ 65dB

Radiation

≥84dB

Spurious Radiation

 9KHz to 1GHz ≤ -57dBm / 1GHz to 4GHz ≤ -47dBm

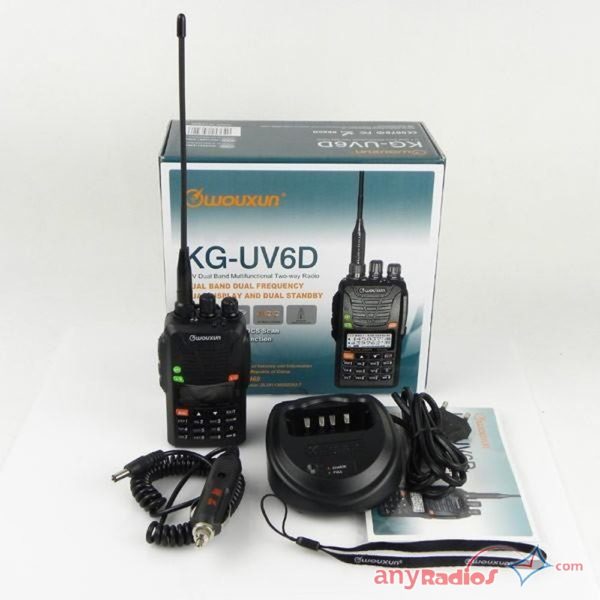

 Package Include:

  • 1×KG-UV6D Dual Band Radio
  • 1×7.4V 1700mAh Li-ion Battery Pack
  • 1×Antenna
  • 1×Belt Clip
  • 1×Car Charger
  • 1×ENG Manual
  • 1×Hand Strap
  • 1×PTT Earpiece

Wouxun KG-UV6D

Additional information

Weight 0.8 kg
Dimensions 200 × 200 × 60 mm
