YAESU VX-6R Dual Band Amateur Submersible Walkie Talkie

$376.00 $298.00

SKU: 160425 Category:

Description

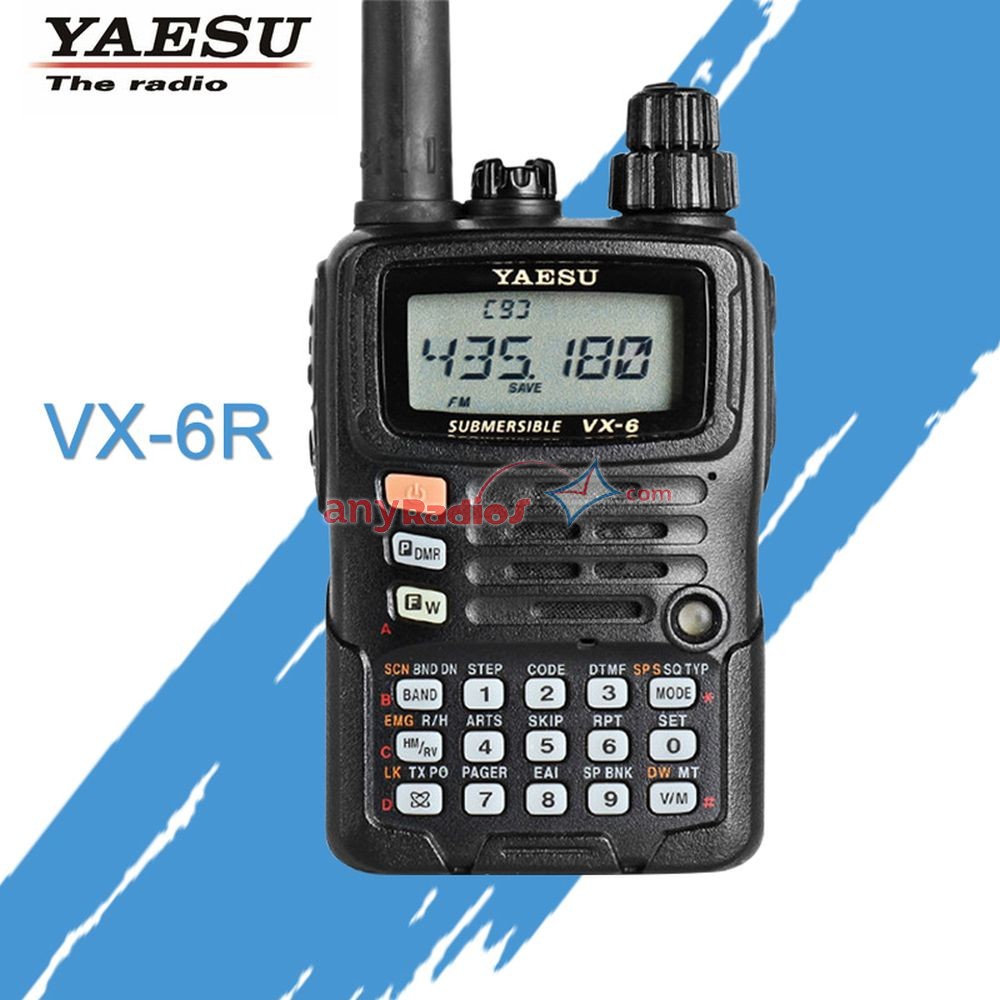

YAESU VX-6R Dual Band Amateur Submersible Walkie Talkie

The VX-6R Submersible Walkie Talkie is an ultra-rugged 144-430 MHz FM Hand-Held featuring wide receiver coverage, JIS7 submersibility, the Yaesu-exclusive Emergency Automatic Identification (EAI) system, and ultra-simple keyboard access to important features.

New on the VX-6R is the One-Touch Direct Memory Recall feature, that allows you to recall ten favorite memories with a single button press, just like on your car stereo.

The VX-6R comes equipped with a high-capacity 1400 mAh Lithium-Ion Battery Pack.

Key Features:

– AM / FM BCB
– Wideband Receive 504 kHz-998.9 MHz (less cellular)
– DTMF Keypad
– EAI Emergency Automatic ID
– Wideband Receive
– Submersible to IPX7 Specifications
– ARTS-Automatic In-Range Transponder
– Backlit Keypad & LCD
– Internet Key for Access to WIRES

Specifications:

General
Frequency Range Receive: 0.5 – 1.8 MHz (BC Band)
1.8 – 30 MHz (Shortwave Band)
30 – 59 MHz (6 Meter Amateur)
59 – 108 MHz (FM)
108 – 137 MHz (Air Band)
137 – 174 MHz (144 MHz HAM)
174 – 222 MHz (VHF-TV)
222 – 420 MHz (ACT1: Action Band 1)
420 – 470 MHz (430 MHz HAM)
470 – 729 MHz (UHF-TV)
803 – 998.99 MHz (ACT2: Action Band 2 Cellular Blocked)
Frequency Range Transmit: 136~174Mhz
222 – 225 MHz
430 – 450 MHz
Channels Memory Over 1000 Memories
CTCSS CTCSS/DCS Encode/Decode
Channel Steps 5/9/10/12.5/15/20/25/50/100 kHz
Operating Voltage: 11-16 VDC Negative Ground EXT DC Jack
Operating Temperature Operating Temperature: -20°C to +60°C
Antenna connect SMA
Antenna Impedance 50ohms
Dimension (H x W x D) Case Size: 2.3×3.5×1.1 inches (58x90x29 mm)
Weight (without knob and antenna) 9.5 oz (270g)
Receiver
Sensitivity: 1.5 μV for 10dB S/N (0.5-30MHz, AM)
1.0 μV for 12dB SINAD (59-108 MHz/470-540MHz, W-FM)
0.5 μV for 12dB SINAD (54-59MHz/300-420MHz, N-FM)
<0.18 μV for 12dB SINAD (420-470 MHz N-FM) /div>
Adjacent Channel Selectivity: Better than 70 dB
Intermodulation: Better than 70 dB
AF Output: 0.7W @ 16 Ohms for 10% THD (@ 7.5 V)
Circuit Type: N-FM, AM Double-conversion, W-FM Triple Conversion
Current Consumption 125 mA (Receive)
8 mA (Auto Power Off)
1500mA (5W)
Transmitter
Power Output 144/430 MHz 5.0/2.5/1.0/0.3 watts
222 MHz 1.5/1.0/0.5/0.2 watts
Modulation Type Variable Reactance F2D, F3E
Spurious Emission At least 60 dB down
Modulation Type: Variable Reactance
Transmit Current 1500mA (5W)
Max. Deviation ±5 kHz
Modulation Distortion < 5%
Frequency Stability Better than ±5 ppm



Each set Package contains:

– 1x Yaesu VX-6R Submersible Walkie Talkie
– 1x 7.2V 1,500 mah FNB-80Li battery pack
– 1x Antenna
– 1x Belt clip
– 1x Manual in English
– 1x NC-72 Charger (we will provide correct voltage and adaptor for your country)

Additional information

Weight 1 kg
Dimensions 400 × 300 × 100 mm
