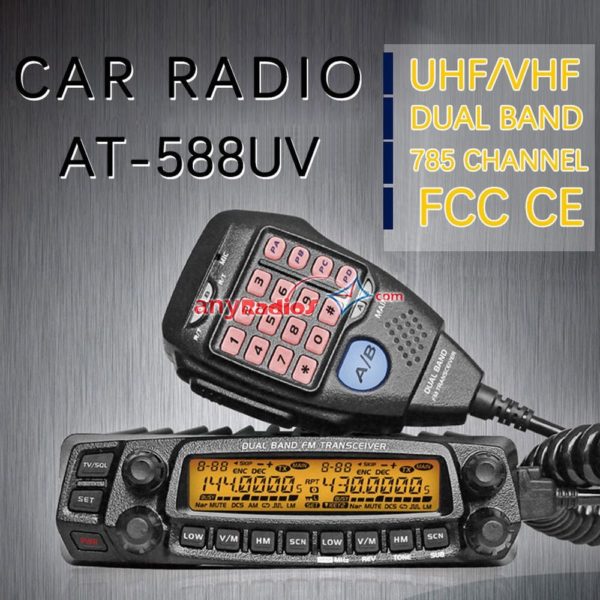

Anytone AT-588UV Dual Band Dual Display Vehicle-mounted Mobile Radio Car Walkie Talkie
Working Mode: Full duplex on UU, UV, V V. UV or VU as repeater mode.
Dual Receive: Consist with A & B band.
Output Power: 50W/35W/10W/5W
4*256 memroy channels.
CTCSS+ DCS+DTMF+2Tone/5Tone encode and decode.
Bandwidth: Wide: 25KHz Narrow: 12.5KHz
Scramble Function ( Option).
ANI function ( DTMF/ANI, 5-Tone/ANI)/PTT ID.
The Anytone AT-5888UV (AT-588UV) Dual Band, Twin Receive Dual Display Radio Transceiver for the VHF & 2 meter , & UHF & 70cm bands.
Loaded with features, Part 90 Approved, narrow band capability, over 700 AlphaNumeric Memory channels (256 x 4)!
True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
Tuning Steps of 2.5, 5, 6.25, 10, 12.5, 15, 20, 25 & 50 kHz. Includes lighted full keypad microphone w/ switchable built-in speaker, use speaker in body, in mic, or an optional external speaker too!
Remote mountable Faceplate!
Transmits: 136-174Mhz, 400-490 MHz.
Receive Range is: 200-260Mhz, 350–490 MHz, 108-180 MHz (AM or FM Mode on VHF recv, FM mode on transmit).
Tuning Steps: 2.5, 5, 6.25, 10, 12.5, 15, 20, 25 & 50 kHz, Backlit, Full Keypad Mic features a built in speaker! Speaker in Radio too!
Either side display can be set VHF or UHF – VU, UV, UU, VV !
ctcss, dcs (PL & DPL), ANI, DTMF, Backlit 3 color w/Cool-Blue Display & buttons!
Backlit DTMF Mic, Part 90 FCC Certified.
50W on VHF, 40W on UHF with lower power settings down to 5W available.
Great for Amateur, Public Service and Commercial uses!
PC Programmable w/downloadable free software, Even has a Built-in USB port to charge your phone! Requires 12-14Vdc power hookup, at 12A or more, and an Optional suitable Dualband Antenna.
Optional QDM-01 Base Station Microphone
1 x Anytone AT-588UV
1 x Microphone
1 x Mobile Mounting Bracket
1 x DC Power Cord with Fuse
1 x Four Pairs screws and accessories
1 x English Operating Manual
