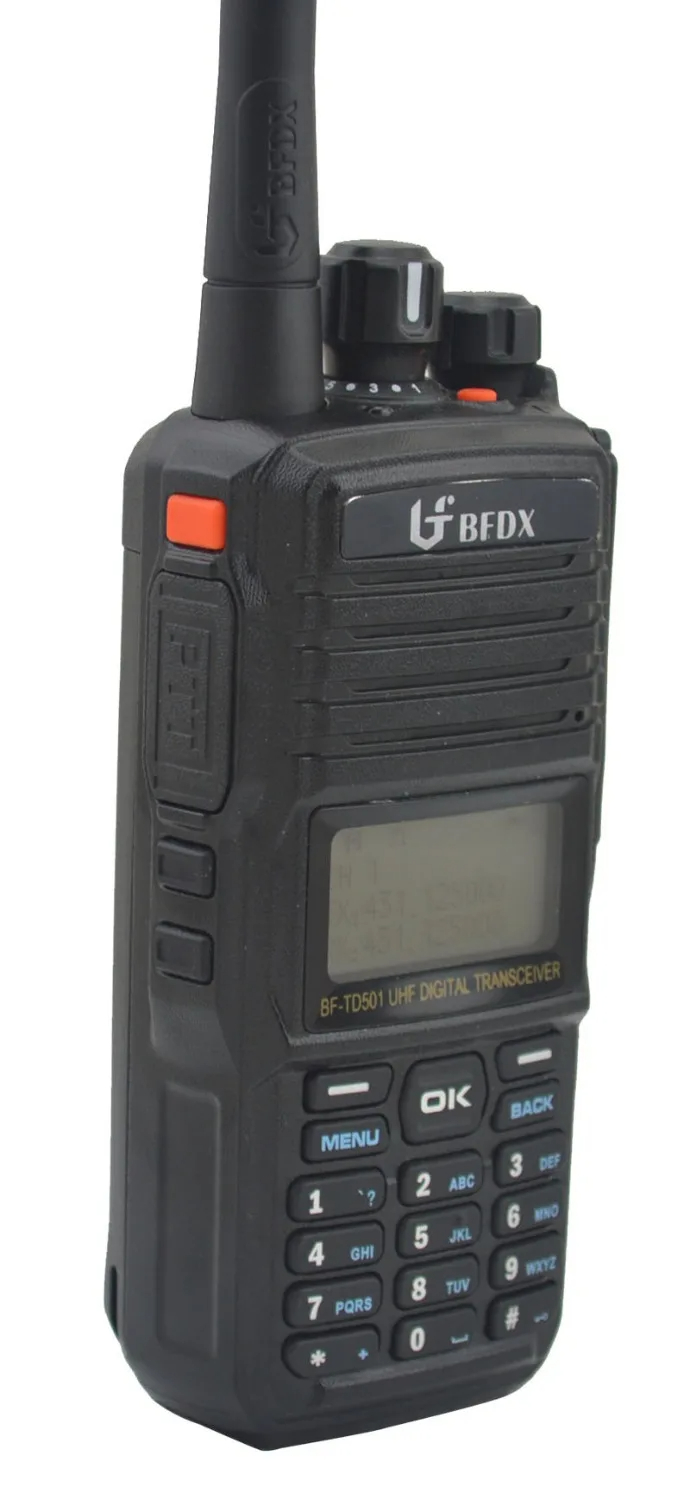

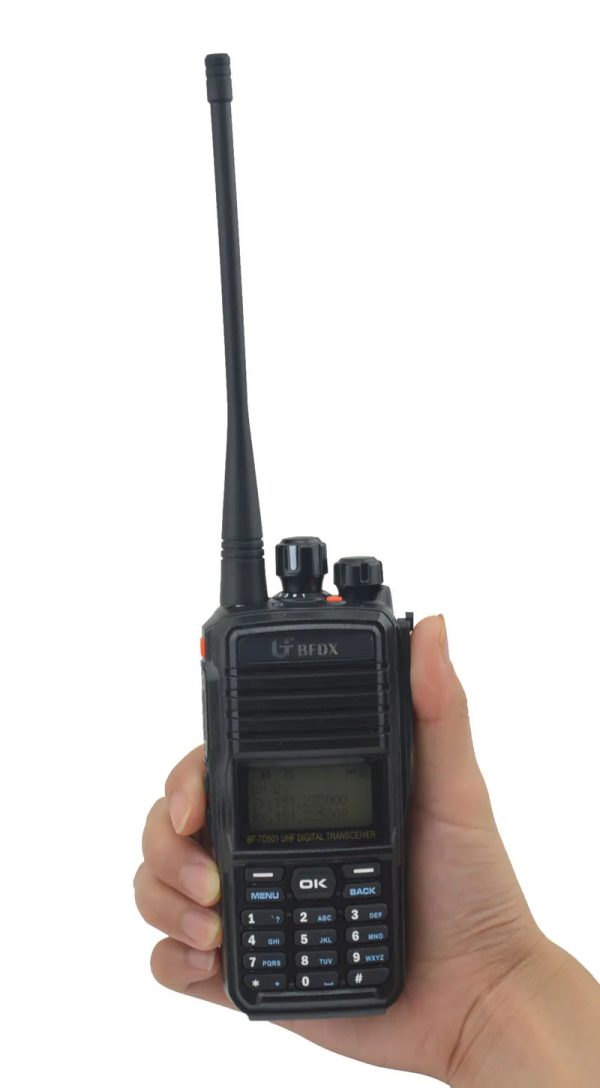

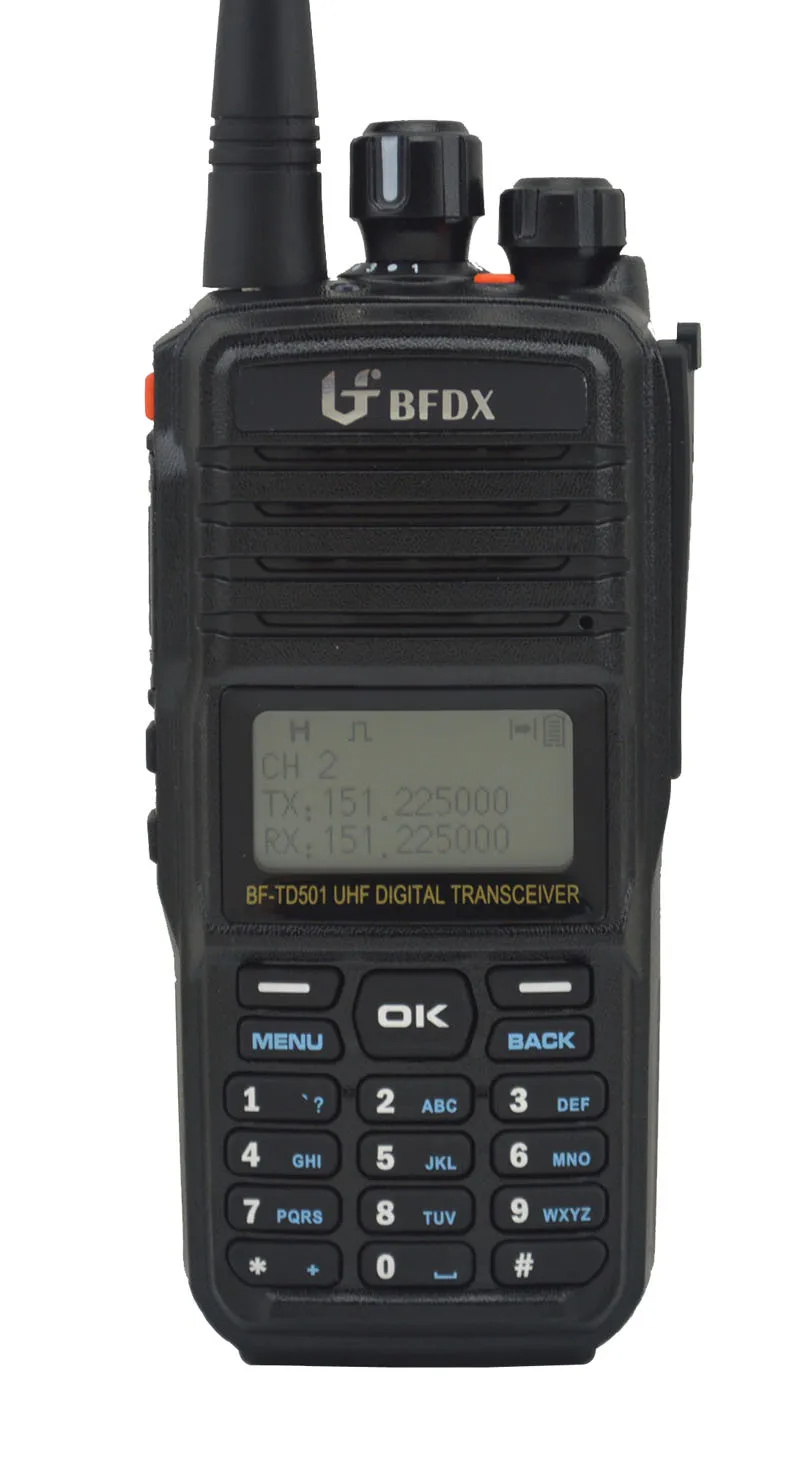

BFDX BF-TD501 VHF 136-174MHz DMR Digital FM Transceiver
BFDX BF-TD501 UHF 400-470MHz DMR Digital FM Transceiver digital two way radio
BF TD501 is a professional digital two way radioTDMA, supporting digital and analog 2 working modes.According to standard DMR protocol,TDMA dual slots,dynamic encryption,with 4FSK modulation,AMBE+2™ vocoder,this make BF-TD501 as a best radio for you to migration from analog to digital.
This is DMR digital radio which can communicate with any Moto DMR digital Radios.
The default color code of BF-TD501 is 0
The default repeater slot of BF-TD501 is 1
The default Caller ID of BF-TD501 is eight digits
Main Function:
Working in digital and analog 2 working modes
It supports digital and analog 2 working modes,meeting different communication demands.
Dual slots
Dual slots TDMA-Time division multiple access,greatly increase the communication capacity.
Voice encryption
Encryptioned code can be set via software,which can be used to scramble and descramble voice call on encryptioned channels.
Individual call
Except the pointed 2 person can talk with each other,noboly elase can hear,which can well protect the privacy of communication.
Group call
A group of people or certain members settled as a group, all the members can talk with each conviniently.
All call
A certian radio can talk with any other radios in the same channel.,no matter whatever group he or she is in.This is very useful for dispatch.
Specifications:
GENERAL | |
Frequency Range | 136-174MHz / 400-470MHz |
Channels | 160 |
Zones | 50 |
Channel Spacing | 6.25KHz |
Working Voltage | 7.4V DC |
Battery Capacity | 2000mAh |
Battery Average Working Time(5/5/90) | 12 hours |
Frequency Stability | ±1ppm |
Antenna Impedance | 50 ohm |
Dimension | 62(L)*39(W)*113(H)mm |
Weight | 291g(including battery pack) |
Transmitting | |
Power Output | H:4-5W L:1W |
4FSK Modulation | 4K00F1E |
Spurious Emission | -36dBm≤1GHz/-30dBm≥1GHz |
Adjacent Channel Power | ≤60dB |
Vocoder | AMBE 2+ |
Receiving | |
Sensitivity | 3%BER≤0.25μV |
Audio Output Power | 500mW |
Audio Distortion | <5% |
Conduction Radiation | -57dBm |
Environmental Indicators | |
Operating Temperature | -20°c-+60°c |
Storage Temperature | -30°c-+85°c |
Damp Proof | MIL-STD-810C/D/E/F |
PACKAGE Contents: |
|
1 x BF-TD501 DMR Digital Radio |
|
1 x 7.4V 2000mah Li-ion Battery Pack |
|
1 x SMA-Female VHF Antenna |
|
1 x Belt Clip |
|
1 x User Manual |
|
1 x Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country 1× Handstrap |
