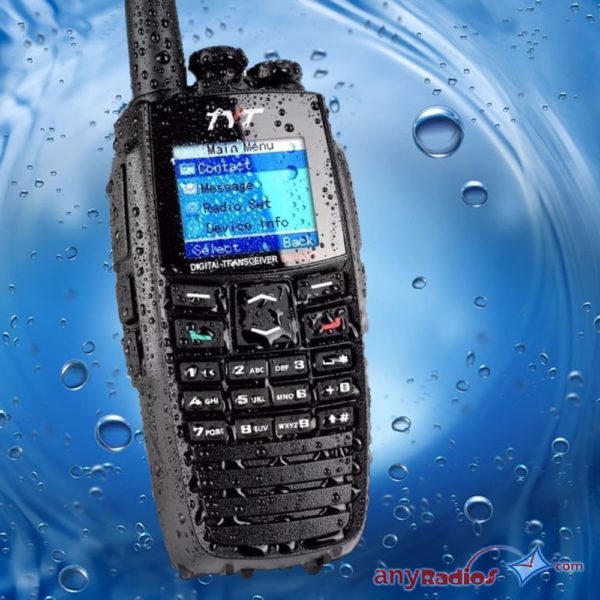

TYT DM-UVF10 DPMR Dual Band Digital Walkie Talkie

Original price was: $160.00.Current price is: $126.00.

& Free Shipping
Guaranteed Safe Checkout

TYT DM-UVF10 Digital Walkie Talkie DPMR Dual Band HF Transceiver Two Way Radio

Description:

DM-UVF10,a dualdisplay, dual standby two-way radio.

adopts high-technology and novel design DM-UVF10 adopts humanism design.

making it smart in shape, advanced in function and flexible in operation,with function of DTMF, voice scrambler and voice compander,will satisfy you and can hardly tear yourself away from it.

More fantastic function,DM-UVF10 will take you to enjoy them.

Specifications:
Model DM-UVF10
Frequency Range VHF+UHF:136-174+400-470MHz
Channel capacity 256CH
Output power 5W
Operating Voltage 7.2V
Antenna Impedance 50 ohm
Work mode Simplex
Working Temperature -30C60C
Frequency Spacing 12.5/25kHz
Battery capacity 2200mAh
Color Black
Dimension(Exclude antenna) 125x61x33mm
Weight(Include Battery) 249g

Feature

Channel type Analog/digital/Mixer-Analog/Mixer-digital
Channel mode VFO mode Channel mode MR mode
Digital dual-band Yes
Color screen display Yes
Dual display Dual standby Yes
Digital/Analog switch Yes
Voice scrambler Yes
DTMF function Yes
Remote kill stun Yes
Contact list editing, storing Yes
Message TX/RX(Digital only) Yes
English/Chinese standby prompt Yes
Private call, group call, all call (Digital only) Yes
VOX function Yes
Backlight brightness setting Yes
TOT Yes
Busy channel lockout Yes
Emergency Alarm Yes
High/Low power selectable Yes
Programmable multifunction side-key Yes
CTCSS/DCS auto-scan Yes
Keypad lock Yes
Scan Mode Yes
Battery save Yes
Beep Tone Yes
Squelch level adjustment Yes

Specification

Modulation type 16k¢F3E,11k¢F3E
Max Fr. deviation <5kHz/<2.5kHz
Adjacent Ch. power >=65dB/>=60db
Spurious radiation <7µW
Pre-emphasis characteristics 6dB
TX current <=1.6A(5W)
CTCSS/DCS deviation 0.5kHz0.1kHz,0.3kHz0.1kHz
Inter mediation sensitivity 1-10mV
Inter mediation distortion <5%
4FSK distortion <3%

Receiver

Receiving sensitivity -122dB(12dB SINAD)
Audio power 1W
Audio distortion <=5%
Block >=85dB
Inter-modulation >=65db >=55dB
Adjacent Ch. selectivity >=65dB >=65db
Spurious rejection >=65db

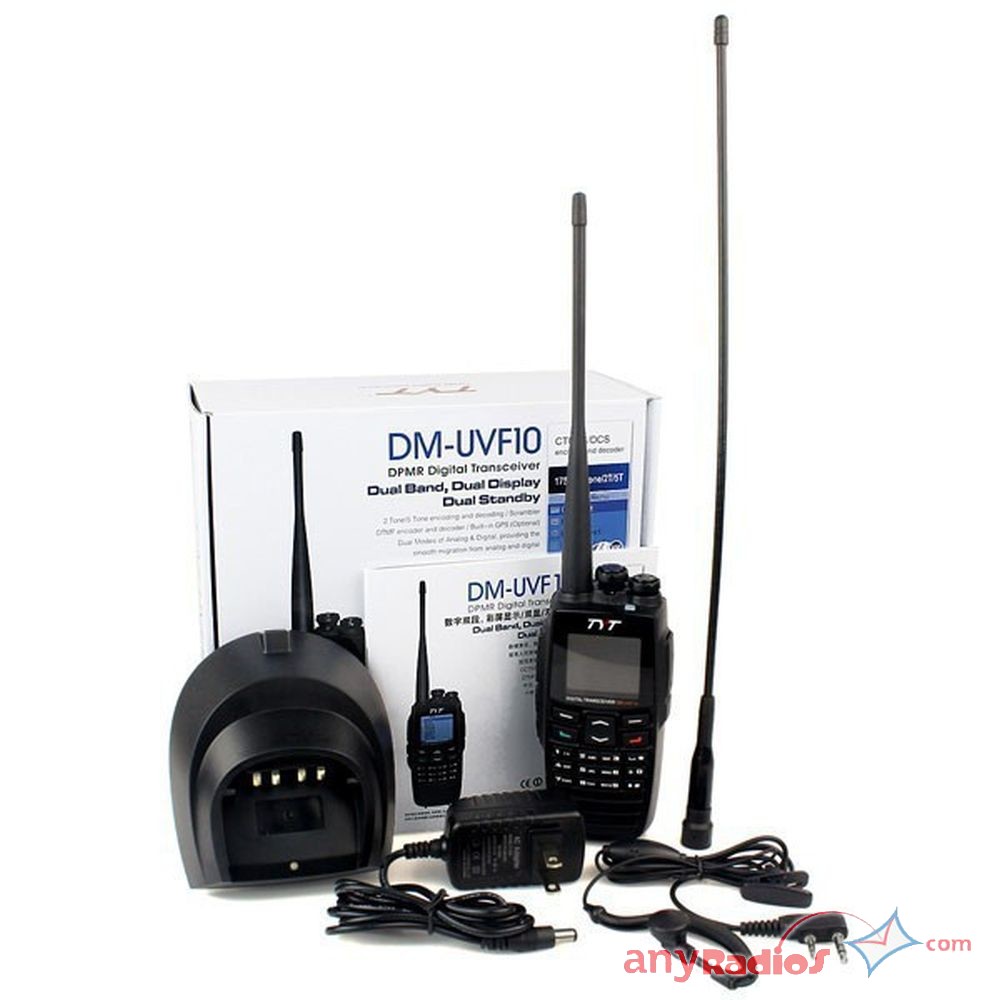

One full set Including:

  1 * TYT DM-UVF10 DPMR Dual Band Digital Walkie Talkie

  2 * Antenna(High gain antenna and Common antenna)

  1 *Li-ion battery pack

  1 * Charger

  1 *Belt clip

  1 * User´s manual

  1 * PTT Headset

Weight 0.8 kg
Dimensions 200 × 160 × 70 mm
