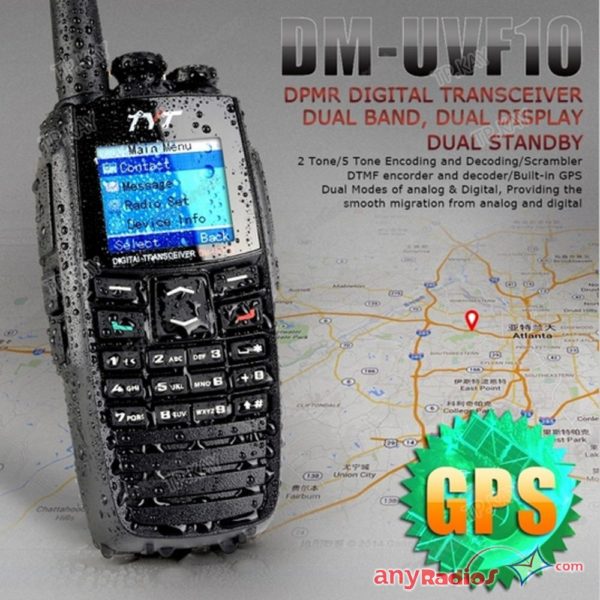

TYT DM-UVF10 Dual Band Digital GPS Walkie Talkie DPMR Ham Transceiver DTMF Two Way Radio

$190.00 $145.00

DM-UVF10, dual display, dual standby two-way radio, utilizes high-technology and ergnomic design to provide you stable, reliable and efficient communications .

It is especially suitable for Staff of Property Management and entertainment. DM-UVF10

Smart shape, advanced function and flexible operation, with function of DTMF, voice scrambler and voice compander, it will satisfy you needs perfectly.

SKU: 160139 Category:

Description

TYT DM-UVF10 GPS Digital Walkie Talkie DPMR Ham Transceiver DTMF Two Way Radio

Description
DM-UVF10, dual display, dual standby two-way radio, utilizes high-technology and ergnomic design to provide you stable, reliable and efficient communications .

It is especially suitable for Staff of Property Management and entertainment. DM-UVF10

Features smart shape, advanced function and flexible operation, with function of DTMF, voice scrambler and voice compander, it will satisfy you needs perfectly.

Features:
Model DM-UVF10
Frequency range VHF+UHF:136-174+400-470MHz
Channel capacity 256CH
Output power 5W
Operating voltage 7.2V
Antenna impedance 50 ohm
Work mode simplex
Working temperature -30ºC-60ºC
Frequency spacing 12.5/25kHz
Battery capacity 1800mAh
Color Black
Dimension(includes no antenna) 125x61x33mm
Weight(includes battery) 249g
Channel type Analog/digital/Mixer-Analog/Mixer-digital
Channel mode VFO mode Channel mode MR mode
Digital dual-band Yes
Color screen display Yes
Dual display Dual standby Yes
Digital/Analog switch Yes
Voice scrambler Yes
DTMF function Yes
Remote kill stun Yes
Contact list editing, storing Yes
Message TX/RX(Digital only) Yes
English/Chinese standby prompt Yes
Private call, group call, all call (digital only) Yes
VOX function Yes
Backlight brightness setting Yes
TOT Yes
Busy channel lockout Yes
Emergency alarm Yes
High/Low power selectable Yes
Programmable multifunction side-key Yes
CTCSS/DCS auto-scan Yes
Keypad lock Yes
Scan Mode Yes
Battery save Yes
Beep Tone Yes
Squelch level adjustment Yes
Specification
Modulation type 16k¢F3E,11k¢F3E
Max Fr. Deviation <5kHz/<2.5kHz
Adjacent Ch. Power >=65dB/>=60db
Spurious radiation <7µW
Pre-emphasis characteristics 6dB
TX current <=1.6A(5W)
CTCSS/DCS deviation 0.5kHz±0.1kHz,0.3kHz±0.1kHz
Inter mediation sensitivity 1-10mV
Inter mediation distortion <5%
4FSK distortion <3%
Receiver
Receiving sensitivity -122dB(12dB SINAD)
Audio power 1W
Audio distortion <=5%
Block >=85dB
Inter-modulation >=65db >=55dB
Adjacent Ch. Selectivity >=65dB >=65db
Spurious rejection >=65db
Package contents:
1xTYT DM-UVF10 GPS Digital Walkie Talkie DPMR
2x Antenna
1x Li-ion Battery Pack
1x Charger
1x Belt Clip
1x User´s Manual
1x PTT Headset



Additional information

Weight 0.8 kg
Dimensions 200 x 160 x 70 mm
