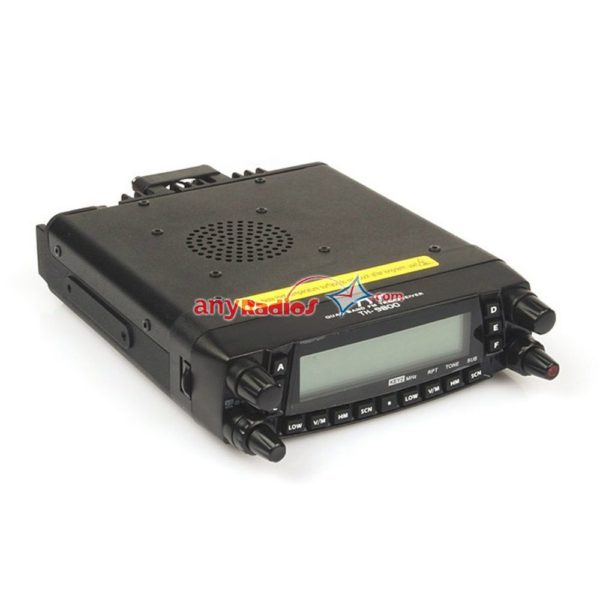

TYT TH-9800 Quad Band Vehicle Radio

$250.00

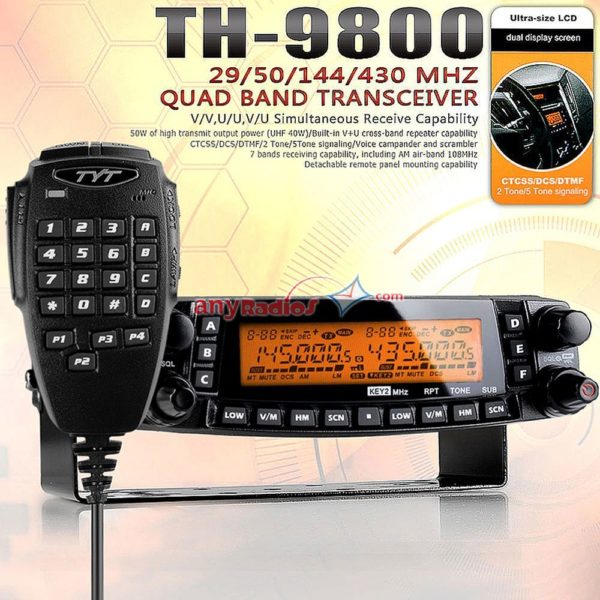

QuadBand Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands.

SKU: 160205 Category:

Description

TYT TH-9800 Pro 50W 809CH Quad Band Dual Display Repeater Scrambler VHF UHF Transceiver Car Truck Vehicle Ham Two Way Radio

The TYT TH9800 QuadBand Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands!.
Loaded with features, Over 800 AlphaNumeric Memory channels!
True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
Multiple Tuning Steps,. Includes full keypad microphone!
Remote mountable Faceplate!
Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430-512Mhz, 750-947Mhz.
50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting & more!
PC Programmable, w/downloadable free software, Requires 12-14Vdc power hookup, at 12A or more, and an Optional suitable Antenna.
Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio.
Built In Cooling Fan.

Functions:

The firmware is 1610A version, this is the newest version.

Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
Brilliant crossmodulation, intermodulation rejection and strong signal performance – similar to commercial radios.
Commercial quality and commercial performance, too!
809 memory channels
DTMF mic included!
Digital FM broadcast band radio
High/low output power levels
Reverse frequency selection
Dual (V/U) squelch set levels
Dual repeater offsets selectable
Multi-function scanning
Repeater offset selectable
Keypad lock function
Channel name editing
CTCSS/DCS encode/decode
Dual Band/Dual Receive: (Full Duplex)
Cross Band Repeat
TX Power: 5-50 Watts
Memories: 256
Antenna Connection: Single  SO 259s

Specification:

General
Frequency Range 26-33MHz (RX/TX) (AM band RX)
47-54MHz (RX/TX) (AM band RX)
136-174MHz (RX/TX)
400-480MHz (RX/TX)
108-136 (AM band RX only)
320-399.000 (RX only)
750-950 (RX only)
Channel Capacity 809 channels
Channel Spacing 5/10/12.5/15/20/25/50KHz
Modes of Emission F3, F2, F1
Antenna Impendence 50 Ohms, unbalanced(Antenna Duplexer bulit-in)
Frequency Stability ±5 PPM@-140°F~+140°F(-10-+60)
Operating Voltage -4°F~+A140°F(-10-+60)
Operating Temperature Range 13.8VDC (±15%). Negative ground
Current Cunsumption(Approx) RX: 0.5A (Squelched)
TX:8.0A (50/430MHz), 8.5A(29/144MHz)
Case Size(WXHXD) 140×41.5x168mm (w/0 knobs & connectors)
Weight(Approx) 2.2lb(1Kg)
Transmitter
Output Power 50/20/10/5W(29/50/144MHz)
Modulation Type Variable Reactance
Maximum Deviation Better than -60dB(29MHz:Better than -50dB)
Modulation Distortion Less than 3%
Microphone Impedance 2kΩ
DATA jack Impedance 10KΩ
Receiver
Circuit Type Double-conversion super-heterodyne
Intermediate Frequency 45.05MHz/450KHz(left band)
47.25MHz/450KHz(right band)
Sensitivity(for 12dB SINAD) Better than 0.2μV
Squelch Sensitivity Better than 0.16μV
Selectivity(-6dB/-60dB) 12KHz/30KHz
Maximum AF Output 2W@8Ω for 5% THD
AF Output Impedance 4-16Ω



Package contain:

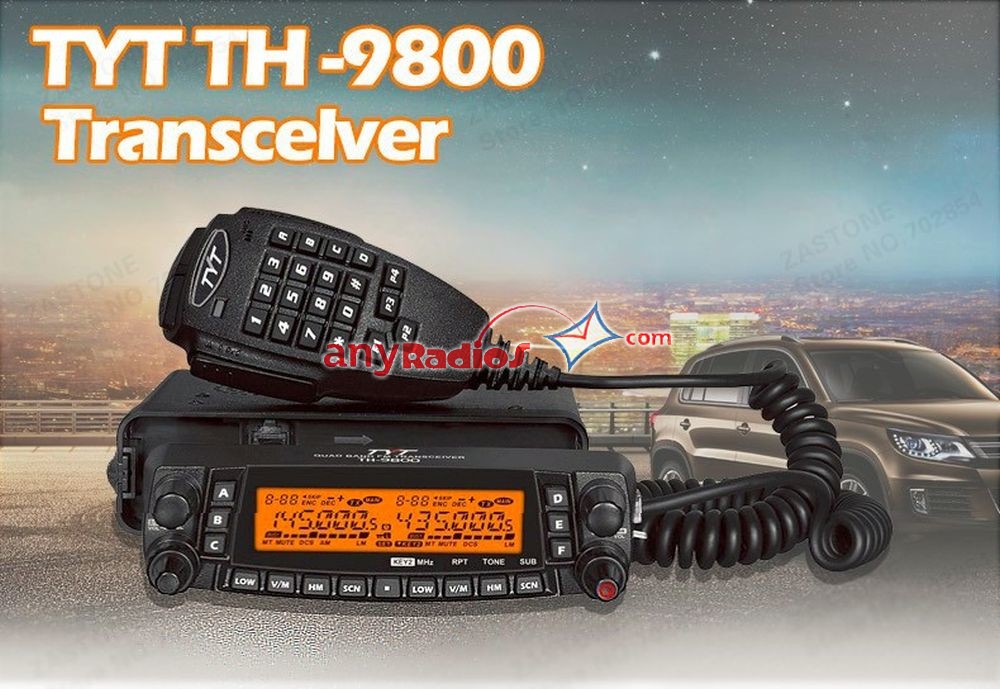

1x TYT TH-9800 Mobile Transceiver
1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User’s Manual
1x Fixed Bracket
1x Microphone Hanger

1x Programming Cable



Additional information

Weight 2.5 kg
Dimensions 300 × 200 × 60 mm
